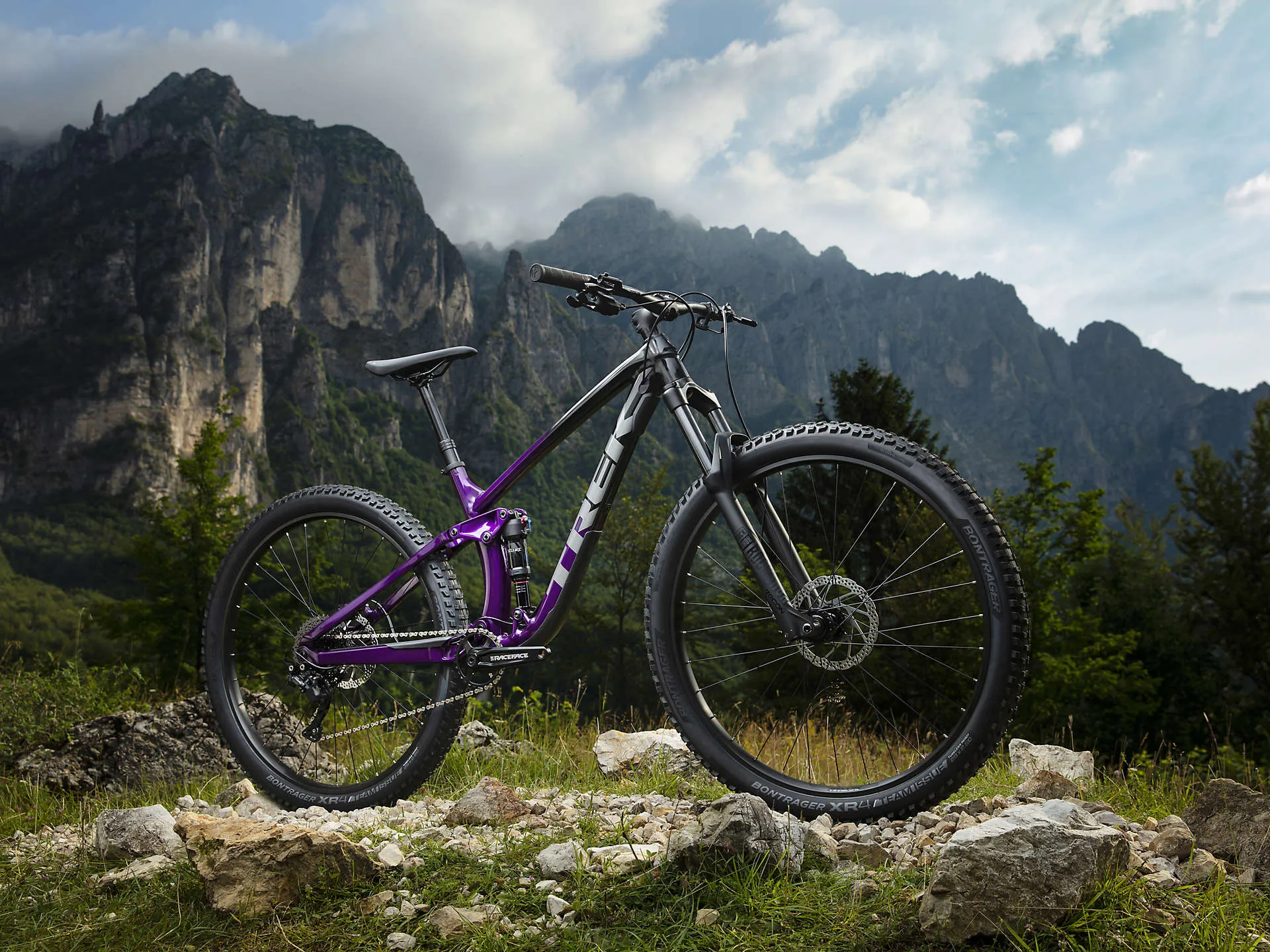

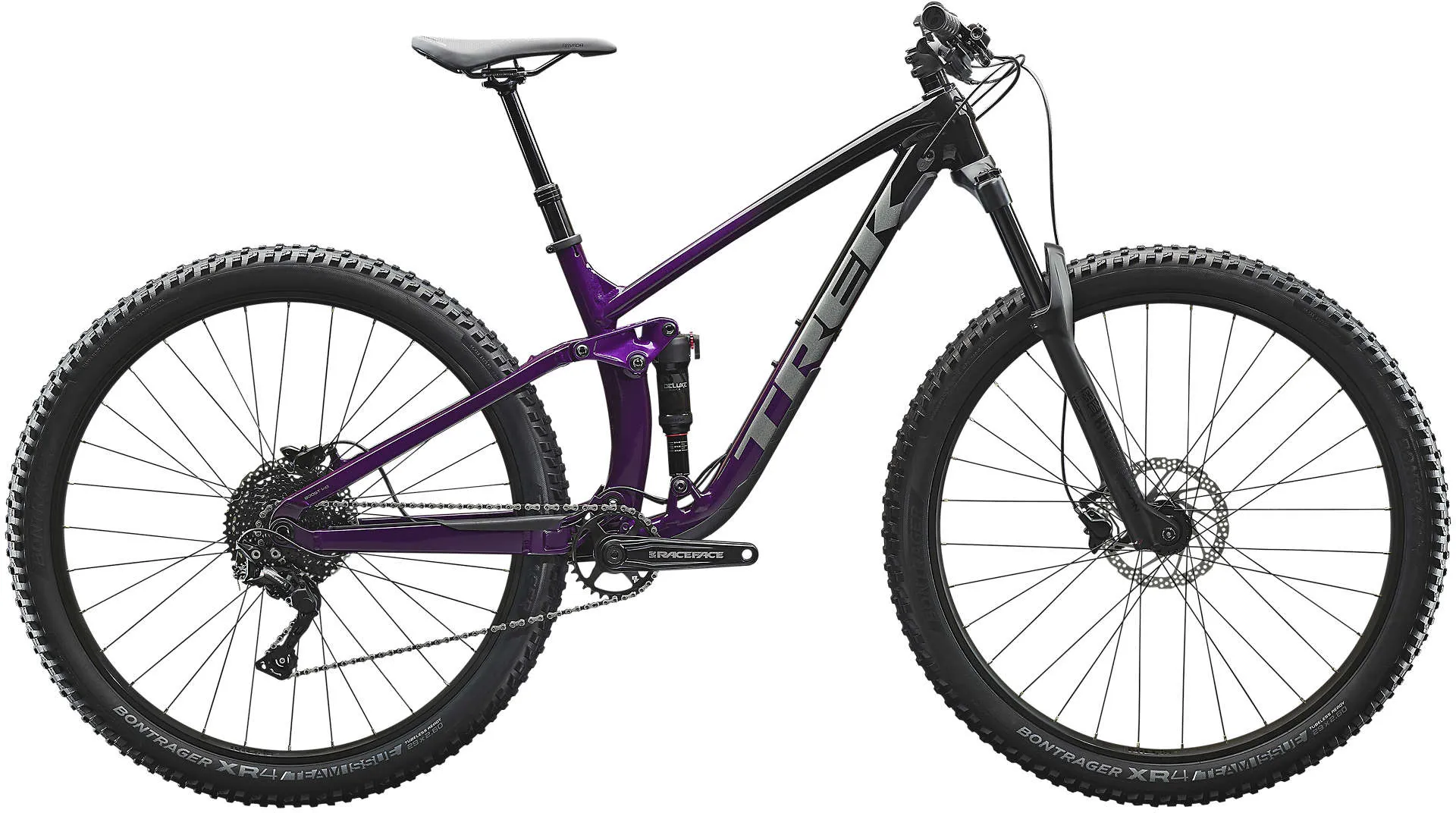

Trek Fuel Ex 5 Mountain Bike 2020 Black/purple Lotus

Season:2020

Brand:Trek

Code:590345-TREK20

If you're looking for a high-performance bike that excels on every trail, and want it at great value then the Trek Fuel EX 5 is it! You can expect this bike to handle a variety of challenges, including rocky descents, long climbs, fast corners and gaps with complete confidence and always ready to thrash that singletrack. With capable and stiff Alpha Platinum Aluminium frame, 140 mm RockShox 35 Gold fork with a plush DebonAir spring, and 130 mm of rear travel with a FOX Performance Float shock and a 1x12 Race Face chainset with a wide range of gearing for climbs. Plus, Bontrager Line Comp 30 wheels and a dropper post.

Trek Fuel EX 5 Build Highlights

  • Frame - Alpha Platinum Aluminium with Magnesium Rocker Link, Knock Block and Tapered Headtube
  • Forks - RockShox Recon RL SoloAir 140mm front suspension travel
  • Rear Suspension - RockShox Deluxe Select Plus
  • Wheelset - Bontrager Line Comp 30, Tubeless Ready Boost 110 / Boost 148
  • Groupset - Shimano Deore 10-Speed
Technical Information

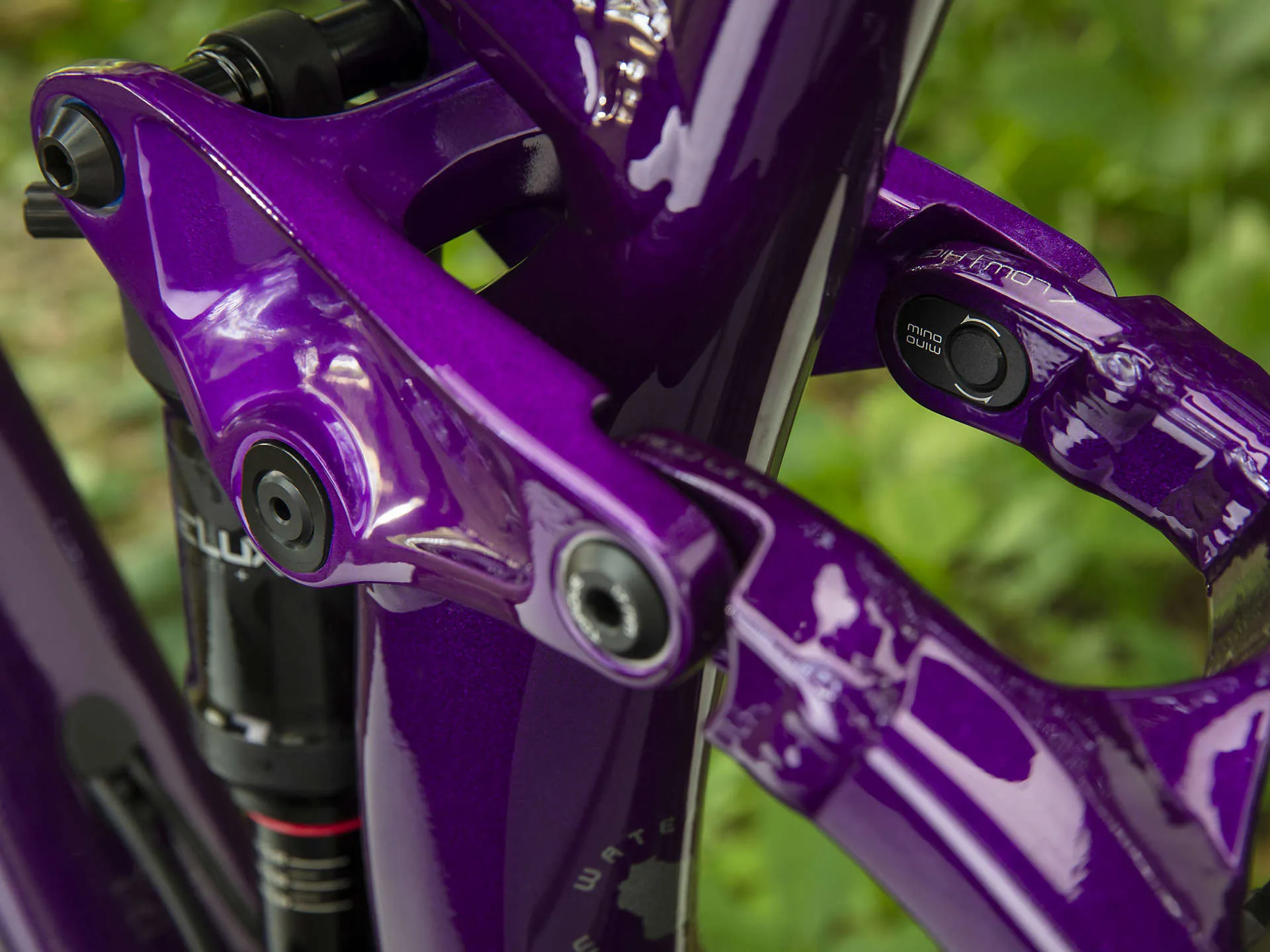

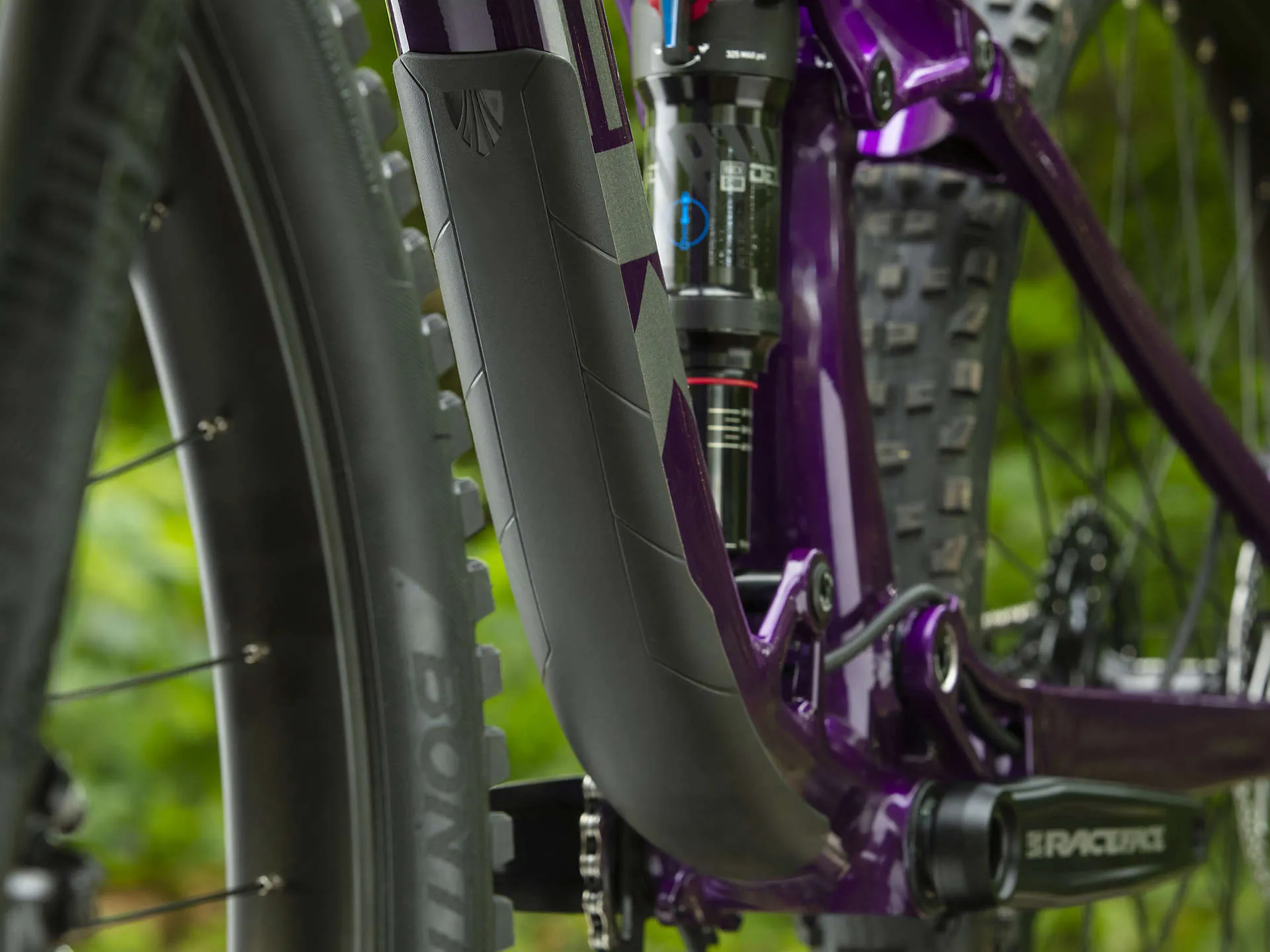

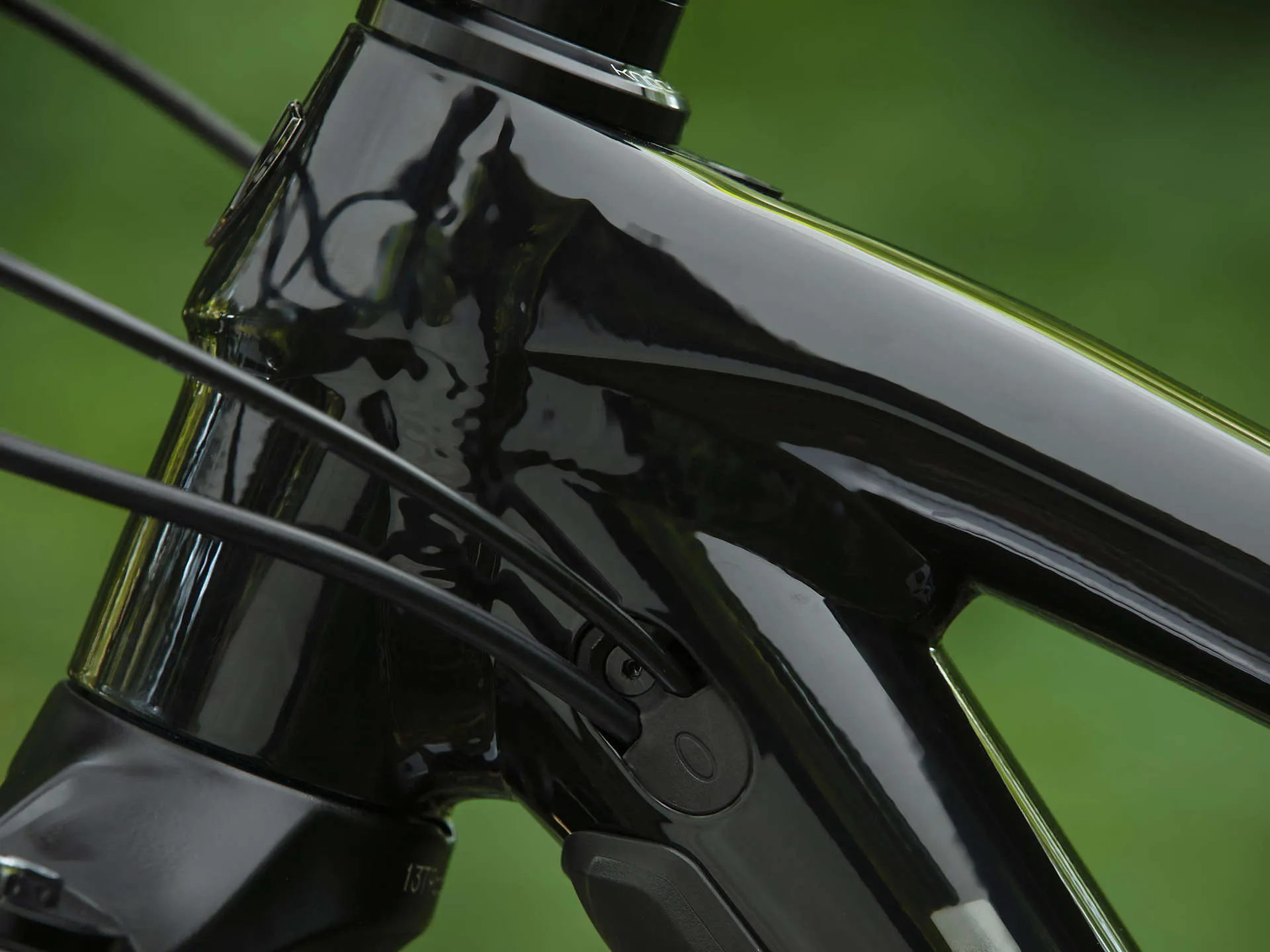

FRAME Alpha Platinum Aluminium, tapered head tube, Knock Block, Control Freak internal routing, downtube guard, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130 mm travel

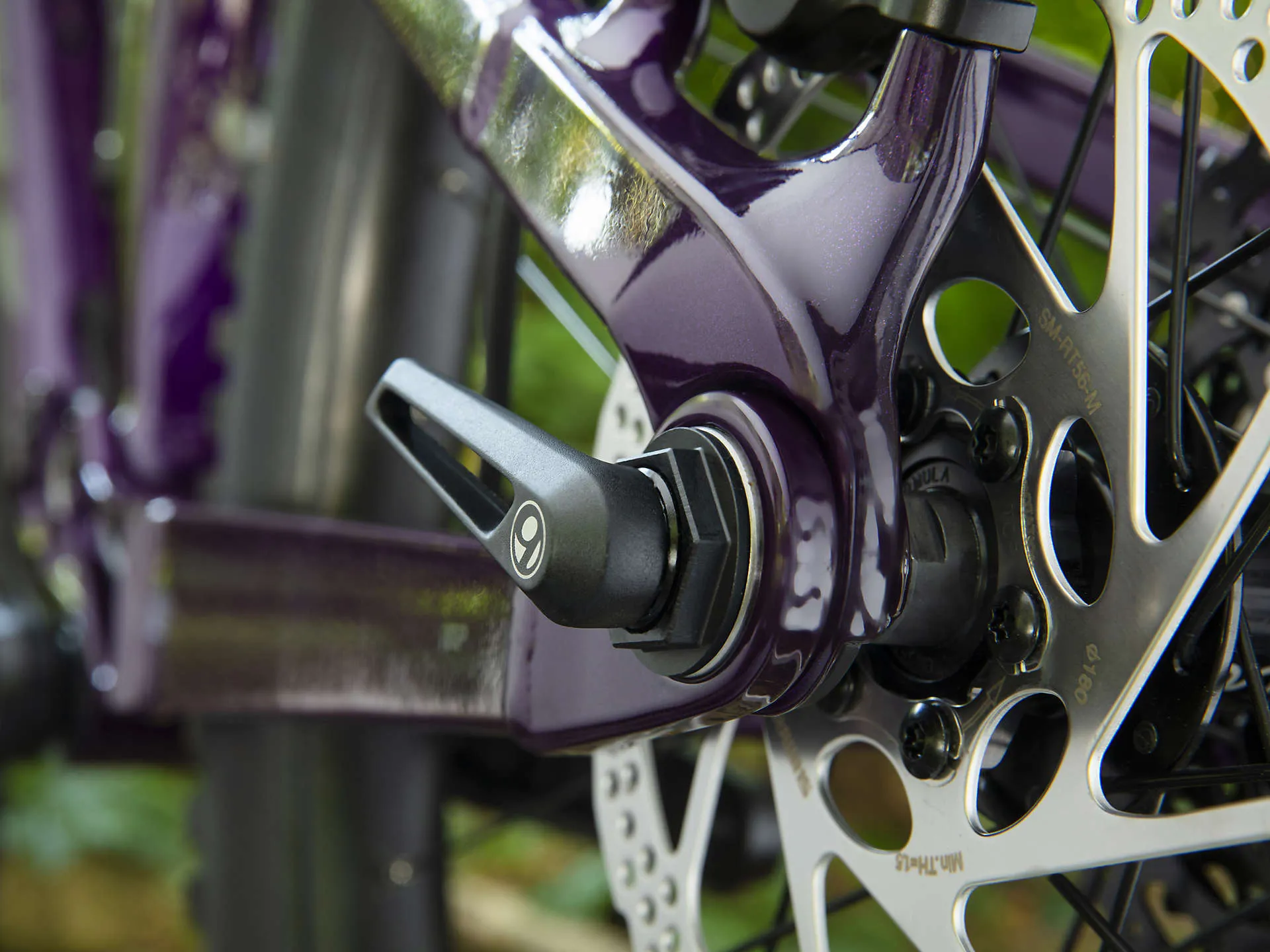

FRONT SUSPENSION RockShox Recon RL, Solo Air spring, Motion Control damper, tapered steerer, 46 mm offset, Boost110, 15 mm Maxle Stealth, 140 mm travel

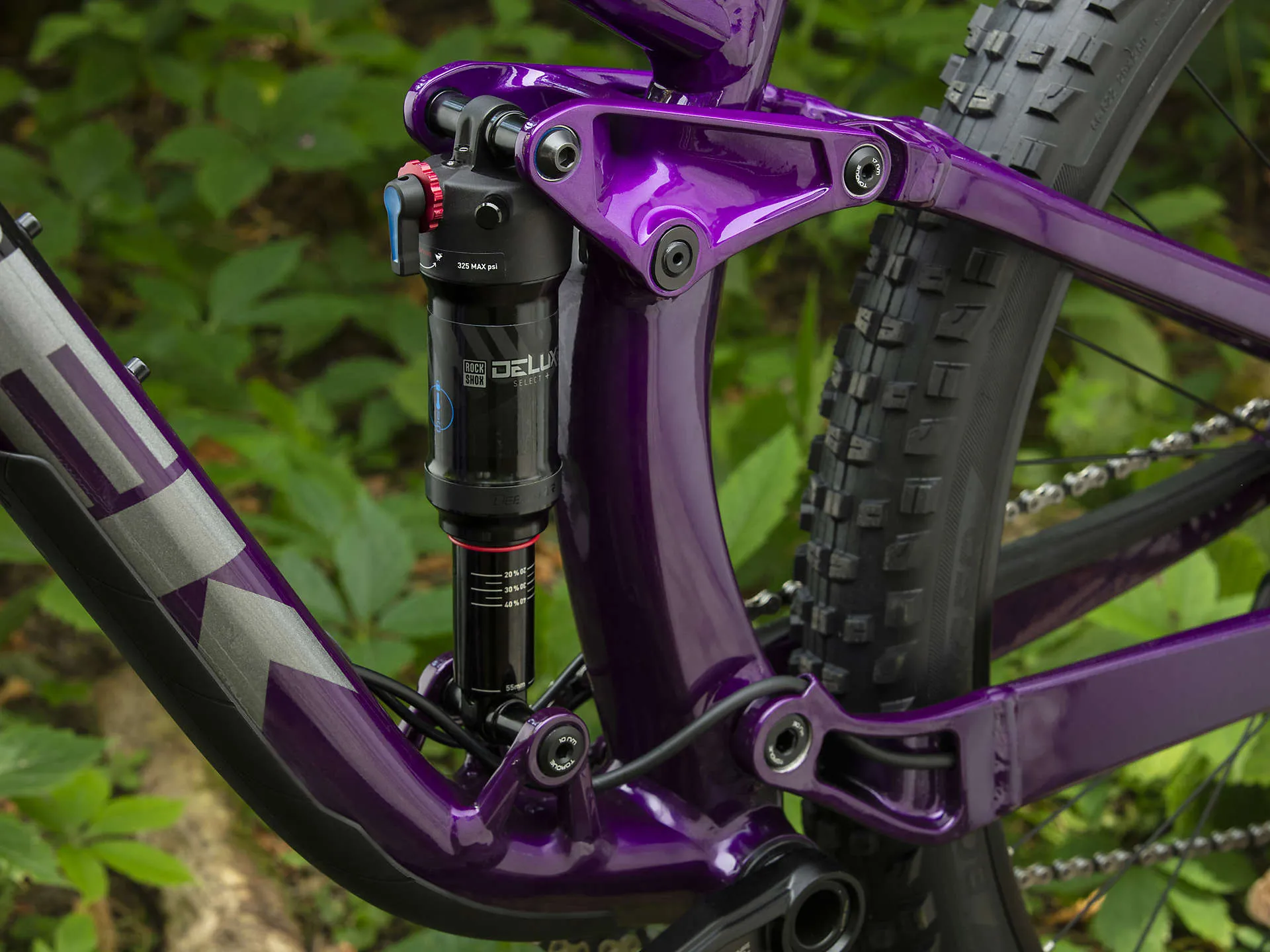

REAR SUSPENSION RockShox Deluxe Select Plus, 210x55 mm
WHEELS Alex MD35, Tubeless Ready, 32-hole, 35 mm width, Presta valve

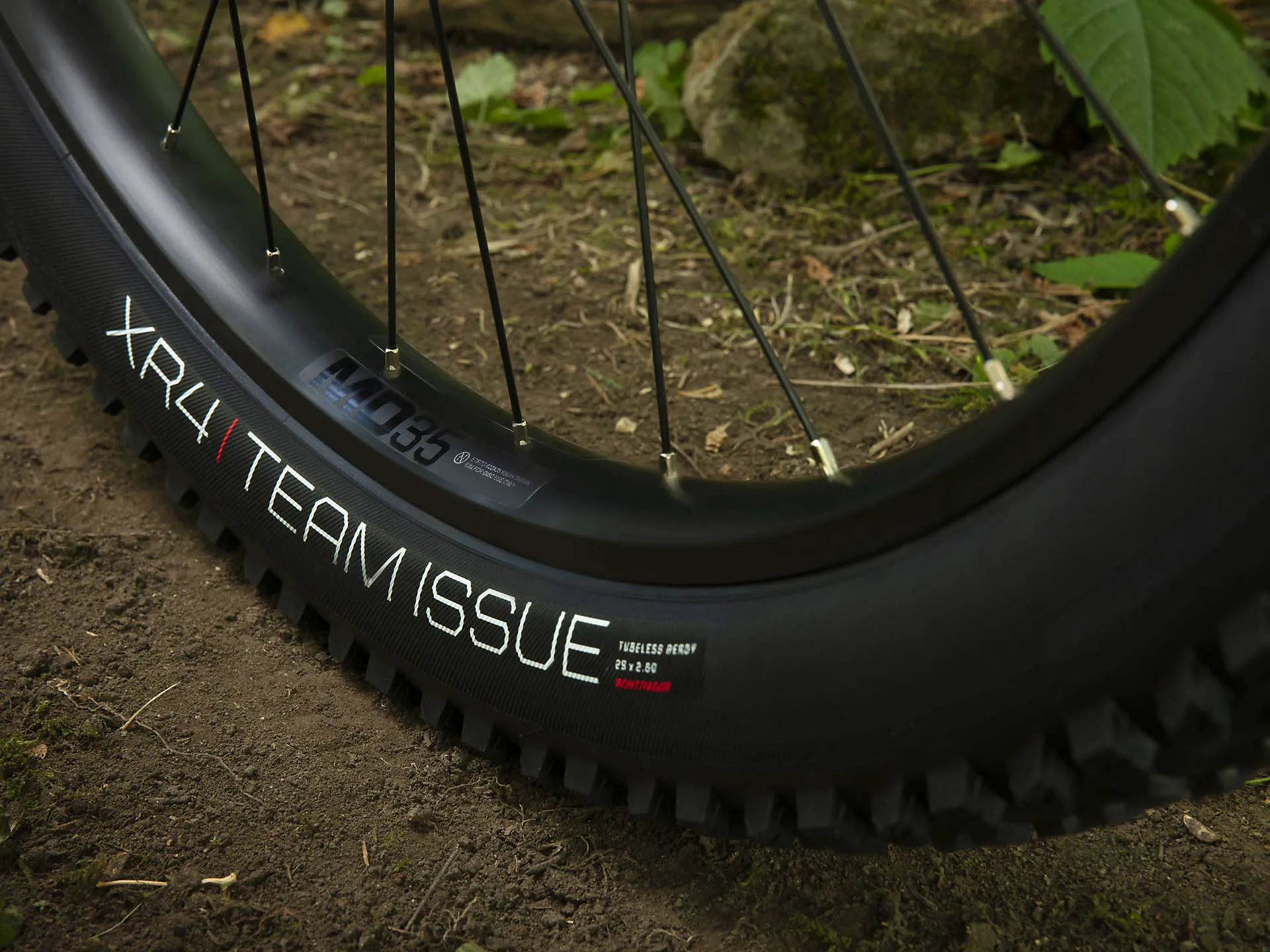

TYRES Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29x2.60"
DRIVETRAIN
SHIFTERS Shimano Deore M6000, 10-speed

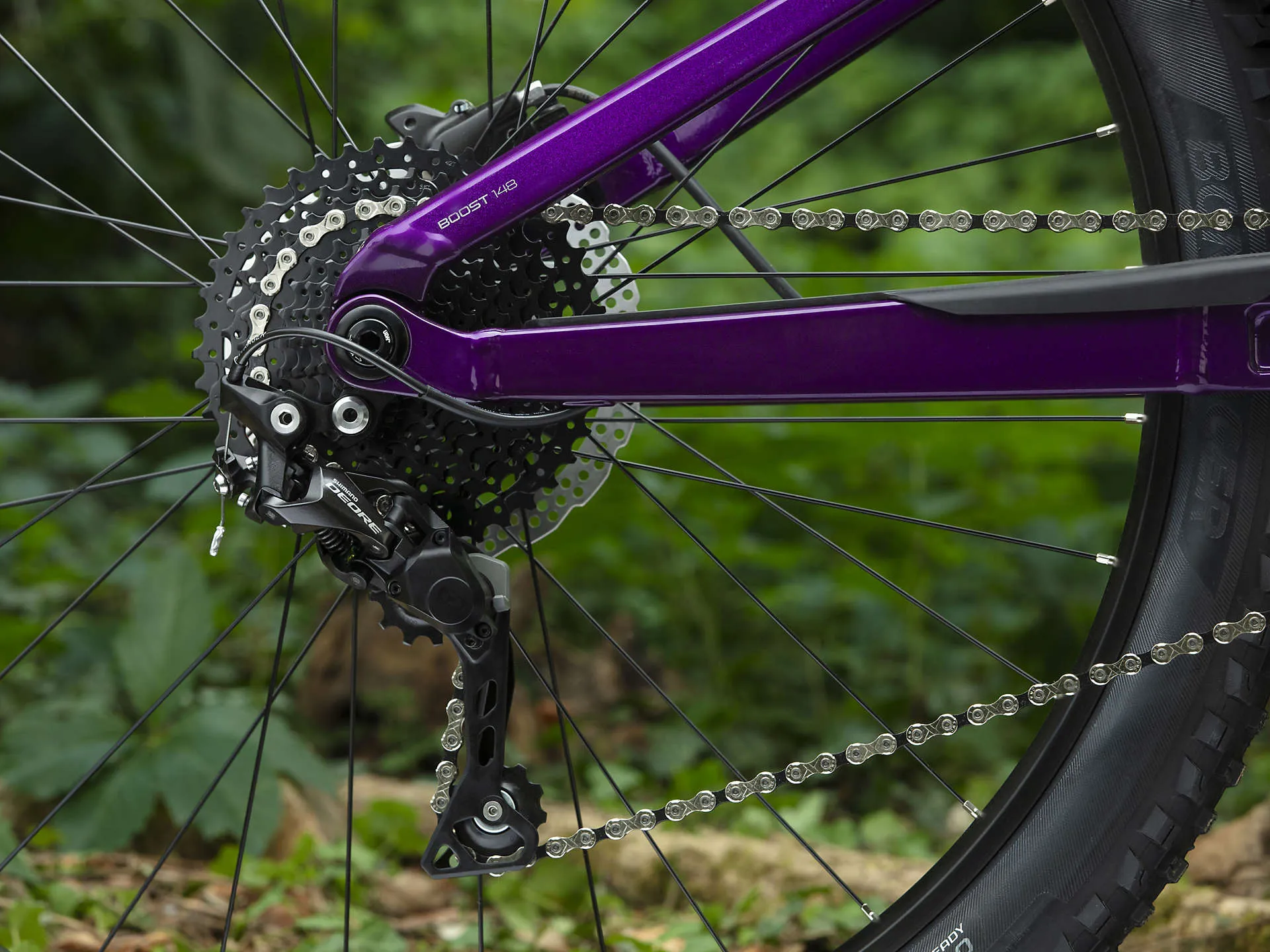

REAR DERAILLEUR Shimano Deore M6000, mid cage, 42T max cog

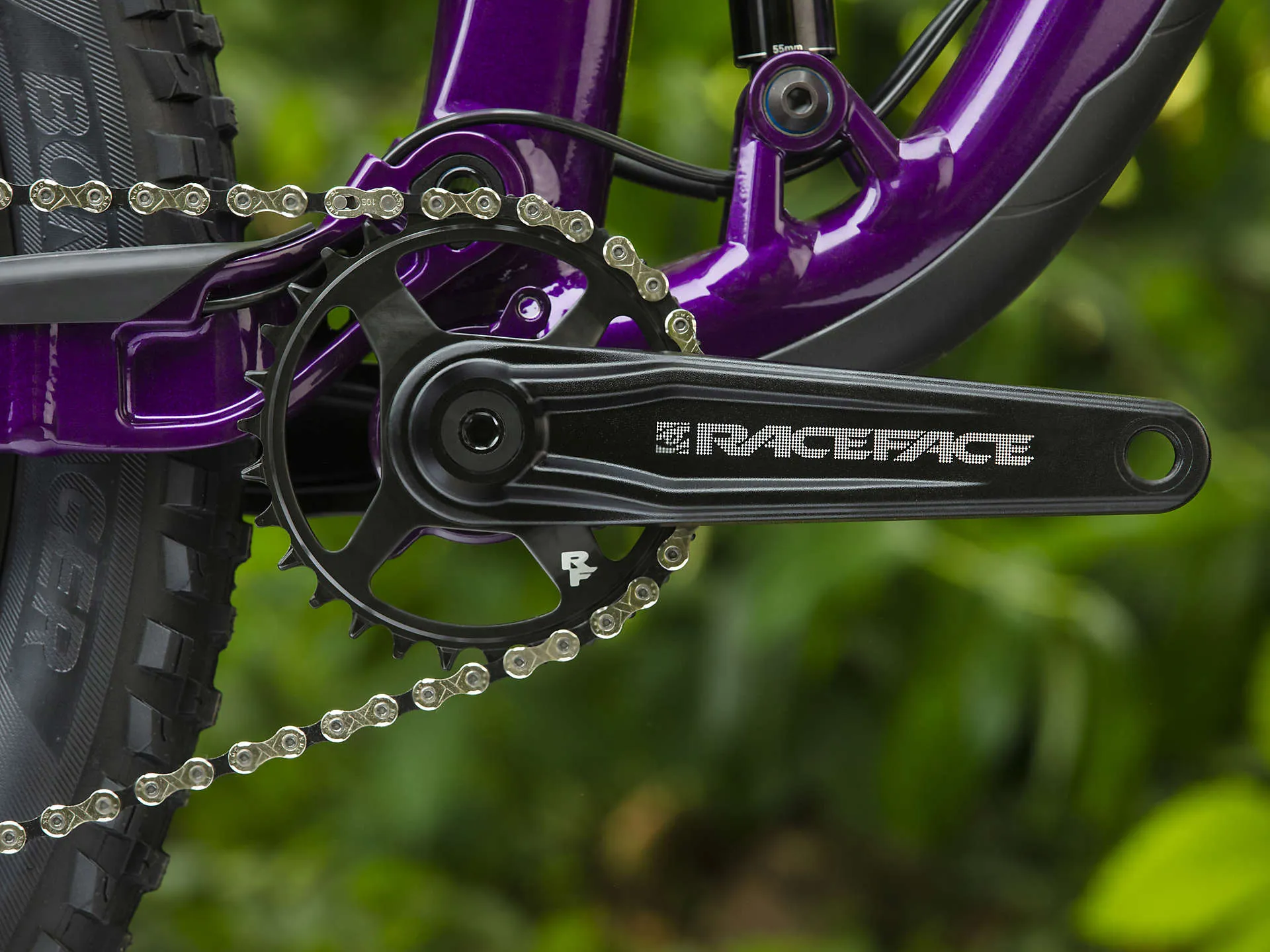

CRANK Race Face Ride, 30 T steel ring, Boost
BOTTOM BRACKET Shimano MT500, 92 mm, PressFit
CASSETTE SunRace, 11-42, 10-speed
CHAIN KMC X10, 10-speed
COMPONENTS
SADDLE Bontrager Arvada, steel rails
SEATPOST TranzX JD-YSP18, 130 mm travel, internal routing, 31.6 mm
HANDLEBAR Bontrager alloy, 31.8 mm, 15 mm rise
STEM Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree
GRIPS Bontrager XR Trail Comp, lock-on

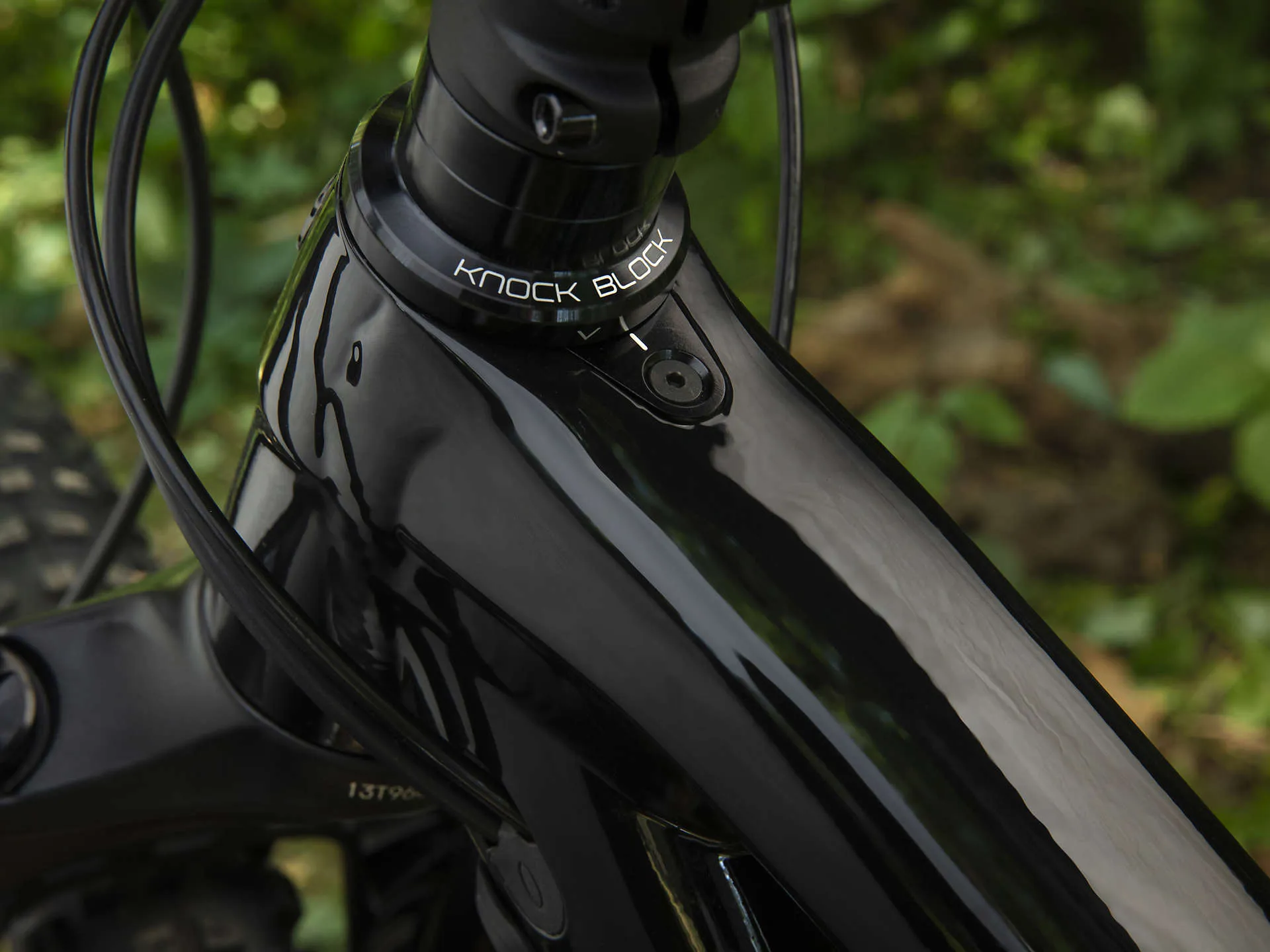

HEADSET Knock Block Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom
BRAKES Shimano hydraulic disc, MT201 lever, MT200 calliper

Trek Fuel Geometry - Suspension set High

Frame size 13.5 15.5 15.5 17.5 18.5 19.5 21.5

Frame size letter XS S S M ML L XL
Geometry position HIGH HIGH HIGH HIGH HIGH HIGH HIGH
Wheel size 27.5" 27.5" 29" 29" 29" 29" 29"
SEAT TUBE LENGTH 355mm 355mm 395mm 420mm 435mm 450mm 500mm
Seat tube angle 75.5° 75.5° 75.5° 75.5° 75.5° 75.5° 75.5°
Head tube length 90mm 100mm 100mm 100mm 105mm 105mm 120mm
Head angle 66.5° 66.5° 66.5° 66.5° 66.5° 66.5° 66.5°
Effective top tube 545mm 567mm 577mm 602mm 618mm 633mm 661mm
Bottom bracket height 341mm 341mm 346mm 346mm 346mm 346mm 346mm
Bottom bracket drop 14mm 14mm 28mm 28mm 27mm 27mm 27mm
Chainstay length 435mm 435mm 435mm 435mm 435mm 435mm 435mm
Offset 43mm 43mm 43mm 43mm 43mm 43mm 43mm
Trail 107mm 108mm 115mm 116mm 116mm 116mm 116mm
Wheelbase 1119mm 1143mm 1153mm 1178mm 1195mm 1210mm 1241mm
Standover 700mm 707mm 707mm 747mm 752mm 754mm 776mm
Frame reach 400mm 420mm 420mm 445mm 460mm 475mm 500mm
Frame stack 550mm 568mm 605mm 605mm 609mm 609mm 623mm



Sizing Information
RIDER HEIGHT 153.0 - 162.0CM 161.0 - 172.0CM 170.00 - 179.0CM 177.0 - 188.0CM 186.0 - 196.0CM
  5'0.2" - 5'3.8" 5'3.4" - 5'7.7" 5'6.9" - 5'10.5" 5'9.7" - 6'2.0" 6'1.2" - 6'5.2"



INSEAM 72.0 - 76.0CM 76.0 - 81.0CM 80.0 - 84.0CM 83.0 - 88.0CM 87.0 - 92.0CM
  28.3" - 29.9" 29.9" - 31.9" 31.5" - 33.1" 32.7" - 34.6" 34.3" - 36.2"

How To Measure Yourself

Measure Your Height

Our handy size charts match your height to the appropriate frame size so you need to be sure you’ve measured your height accurately.

  1. Take off your shoes and stand with your back against a wall.
  2. Make sure legs are together and your shoulders are back.
  3. Place a pencil on top of your head and mark the wall (the best and easiest way to do this properly is with a friend to help you).
  4. Measure from the floor to the pencil mark you have just made with a tape measure.

Range of Reach

For most people to get the right frame size, measuring your height will suffice. However, you may find that your height is on the borderline of the range we suggest for a particular frame. If this occurs you need to measure the range of your reach or “Ape Index”. This will ensure you get a comfortable distance between the handlebars and your saddle.

  1. Stand up straight with your back against a wall.
  2. Life your arms out horizontally either side of you.
  3. Measure the distance from fingertip of one hand to fingertip of the other. This will give you your arm span.
  4. Subtract your height from this figure to get your Ape Index.
  5. If the result is positive (your arm span is greater than your height) you should go for the larger size of bike.
  6. If the result is negative (your arm span is less than your height you need the smaller size.

Stand Over Height

You should also consider your inside leg measurement when choosing your bike to ensure adequate stand over height. Stand over height is the clearance between the top tube and the bottom of your crotch. For mountain bikes we recommend a distance of 2-4 inches and for road or hybrid bikes 1-2 inches of clearance is required. This will ensure comfort when you’re stopped and standing astride the bike.

Our bike sizing charts take stand over height into consideration but if you have a particularly long or short inside leg measurement in relation to your height you will need to bear this in mind when selecting your frame size.

Riding Style

The way you ride and the type of bike you are into will also impact the frame size you should choose. For example, a trail devotee looking for an aggressive ride may prefer a smaller, more manoeuvrable bike size. It all comes down to personal preference and how the bike feels to you.

Our sizing charts aim to be as specific as possible so you can look up the particular type, make and model of bike you’re looking for. Remember, the sizes given in our guides are suggestions and should be used for general advice only. For the best possible fit  we recommend popping in to your local Leisure Lakes Bikes store, or call 0800 083 0888 for expert advice tailored to you.
