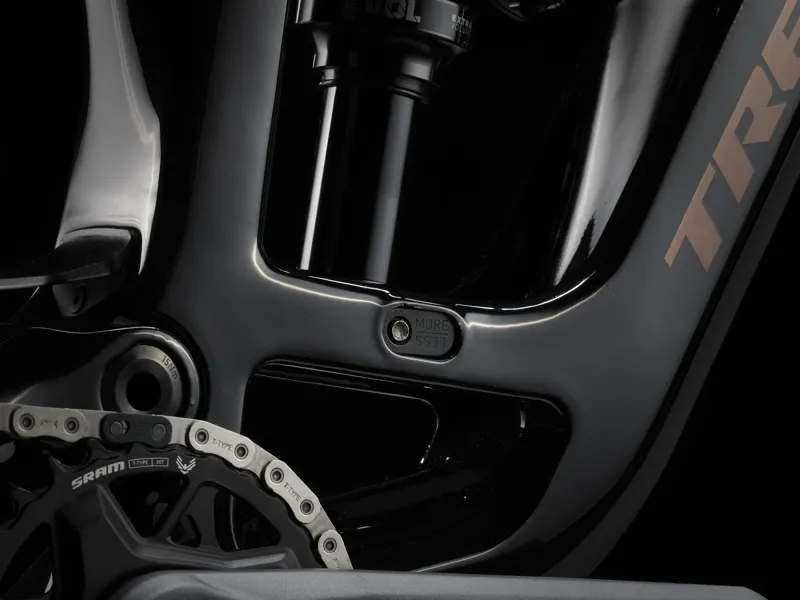

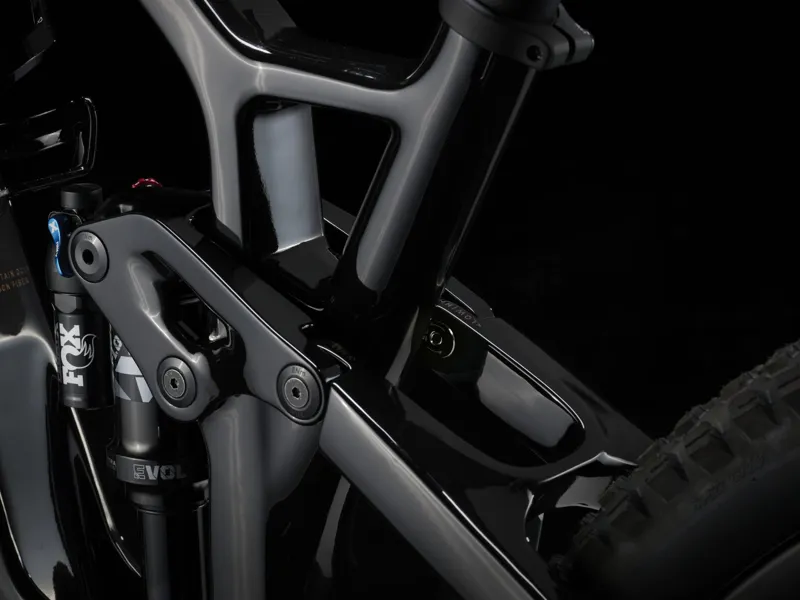

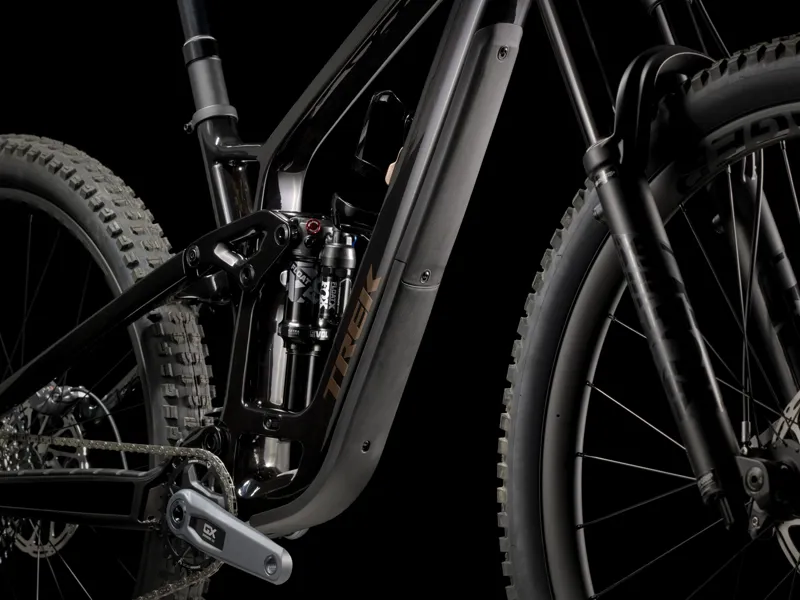

Frame | OCLV Mountain Carbon, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9 mm seat tube, ISCG 05, 55 mm chain line, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140 mm travel |
Fork | Fox Performance 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 150 mm travel |

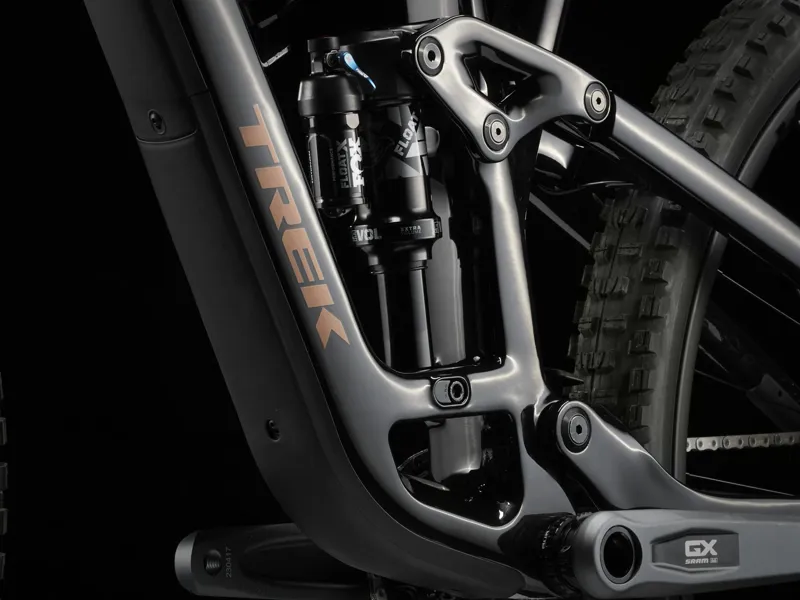

Shock | Fox Performance Float X, 2-position damper, 185 mm x 55 mm |
Max compatible fork travel | 160mm |
*Wheel front | Size: XS , S Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 27.5" |
Size: S , M , ML , L , XL Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29" |
*Wheel rear | Size: XS , S Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12 mm thru axle, 27.5" |
Size: S , M , ML , L , XL Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12 mm thru axle, 29" |
Skewer rear | Bontrager Switch thru-axle, removable lever |
*Tyre | Size: XS , S Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 27.5 x 2.50" |
Size: S , M , ML , L , XL Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50" |
Rim strip | Bontrager TLR |
Max tyre size | Frame: 29x2.50" (XS & S: 27.5x2.50"), Fork: See manufacturer |
Battery | SRAM eTap battery pack (with charger) |
Shifter | SRAM AXS POD |

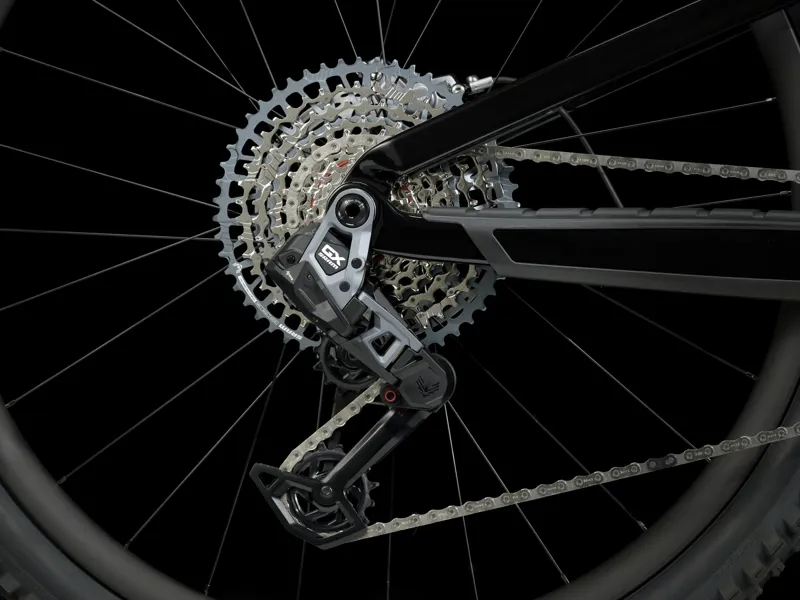

Rear derailleur | SRAM GX Eagle AXS, T-Type |
Crank | SRAM GX Eagle, T-Type, DUB, 30T, 55 mm chain line, 170 mm length |
Bottom bracket | SRAM DUB MTB Wide, 73 m, BSA threaded |
Cassette | SRAM Eagle XS-1275, T-Type,10-52, 12-speed |
Chain | SRAM GX Eagle, T-Type, 12-speed |
Max. chainring size | 1x: 34T round, 32T oval, min 28T |
*Saddle | Size: XS , S , M , ML , L , XL Bontrager Arvada, austenite rails, 138 mm width |
Size: XS , S , M , ML , L , XL Verse Short Comp, steel rails, 145 mm width |
*Seatpost | Size: XS , S Bontrager Line Elite Dropper, 100 mm travel, MaxFlow, internal routing, 34.9 mm, 345 mm length |
Size: XS , S Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 34.9 mm, 310mm length |
Size: M , ML Bontrager Line Elite Dropper, 150 mm travel, MaxFlow, internal routing, 34.9 mm, 440 mm length |
Size: M , ML Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9 mm, 410 mm length |
Size: L Bontrager Line Elite Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 485 mm length |
Size: L , XL Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length |
Size: XL Bontrager Line Elite Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 550 mm length |
*Handlebar/stem (integrated) | Size: XS , S Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 35 mm stem length |
Size: M , ML , L , XL Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 45mm stem length |
Grips | Bontrager XR Trail Elite, nylon lock-on |

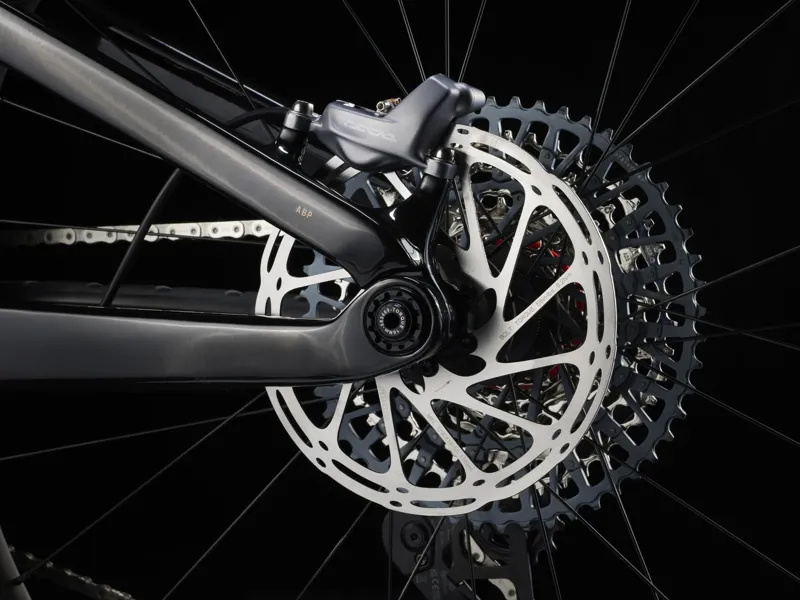

Rotor size | Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer |
Bag | Bontrager BITS Internal Frame Storage Bag |
Weight | M - 14.53 kg / 32.04 lbs (with TLR sealant, no tubes) |
Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
