Trek Top Fuel 5 Deore Mountain Bike 2023 Lithium Grey/Marigold

Season:2023

Brand:Trek

Code:2132600GT-CH-YL

The TREK Fuel EX 5 is the gateway to full suspension trail bikes. Trail-taming front and rear suspension, a Shimano 1x12 drivetrain, dropper post for the descents and hydraulic disc brakes makes the Fuel EX 5 a high performing Mountain Bike with exceptional versatility.

It's right for you if...
You're ready to go full suspension, and you want a versatile trail bike at a great value pricepoint. You want a ride that's confident and sure-footed, capable and responsive, so you can stay in control no matter where you're riding.
The tech you get
A lightweight aluminium frame with a Straight Shot down tube for extra stiffness in the rough and a Knock Block steerer stop to protect against spinning bars. A 140 mm RockShox Recon RL fork, 130 mm of rear travel with a RockShox Deluxe Select+ shock, a durable 12-speed Shimano Deore drive train, dropper post and hydraulic disc brakes.
The final word
You get full suspension performance without the sticker shock. Fuel EX 5 has the same frame technology as our higher-end alloy Fuel EX models with parts chosen to keep the price tag low and stoke level high.
Why you'll love it
  • You get a high-end ride at an exceptional value with frame features like Boost148 and ABP that give you confident handling and room to upgrade parts as your skills grow
  • It has the capability of far more expensive trail bikes: it shreds singletrack and can even handle the occasional XC or enduro race.
  • The dropper post lets you lower your saddle on the fly so it's out of the way on descents
  • The RockShox fork's Solo Air spring can easily be adjusted for a specific rider weight, and it's lighter than a coil spring
  • We expanded our size range to ensure a better fit for all riders. And, you get the fastest wheel that fits your frame: XS frames get 27.5˝ wheels, S frames get to choose between 27.5˝ or 29˝ and sizes M to XL get 29˝ wheels

Trek Fuel EX 5 Deore Mountain Bike 2022 Features

  • Frame: Alpha Platinum Aluminum, tapered head tube, Knock Block, Control Freak internal routing, downtube guard, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130mm travel
  • Fork: RockShox Recon Silver, Solo Air spring, Motion Control damper, tapered steerer, 46mm offset, Boost110, 15mm Maxle Stealth, 140mm travel
  • Rear suspension: X-Fusion Pro 2, air spring, RL damper, 210x55mm
Technical Information
Description
WeightM - 15.55 kg / 34.29 lbs (with tubes)
Frameset

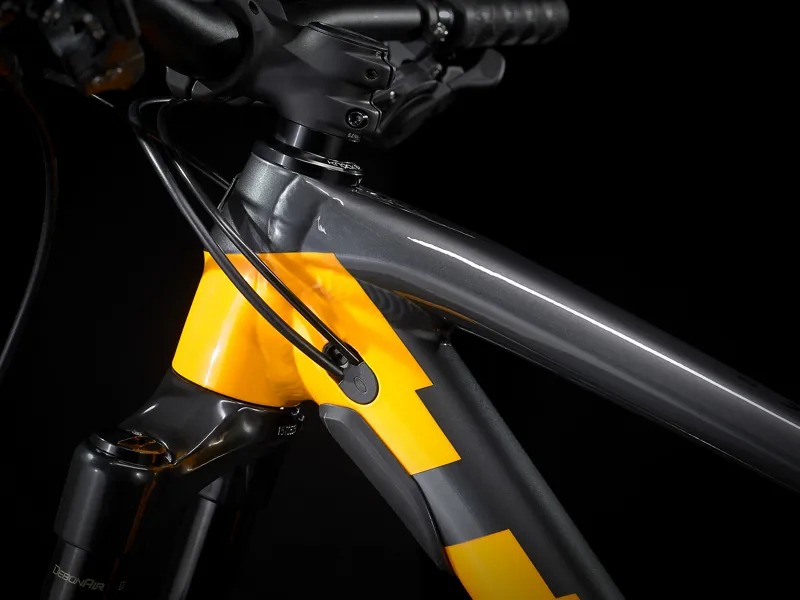

FrameAlpha Platinum Aluminum, tapered head tube, Knock Block, Control Freak internal routing, downtube guard, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130mm travel
ForkRockShox Recon Silver, Solo Air spring, Motion Control damper, tapered steerer, 46mm offset, Boost110, 15mm Maxle Stealth, 140mm travel
Rear suspensionX-Fusion Pro 2, air spring, RL damper, 210x55mm
Wheels
Front HubBontrager alloy, 6-bolt, Boost110, 15mm thru-axle
Rear HubBontrager Alloy, Sealed bearing, 6 Bolt Shimano MicroSpline Freehub Boost 148mm x 12mm Thru-Axle
RimsAlex MD35, Tubeless Ready, 32-hole, 35mm width, presta valve

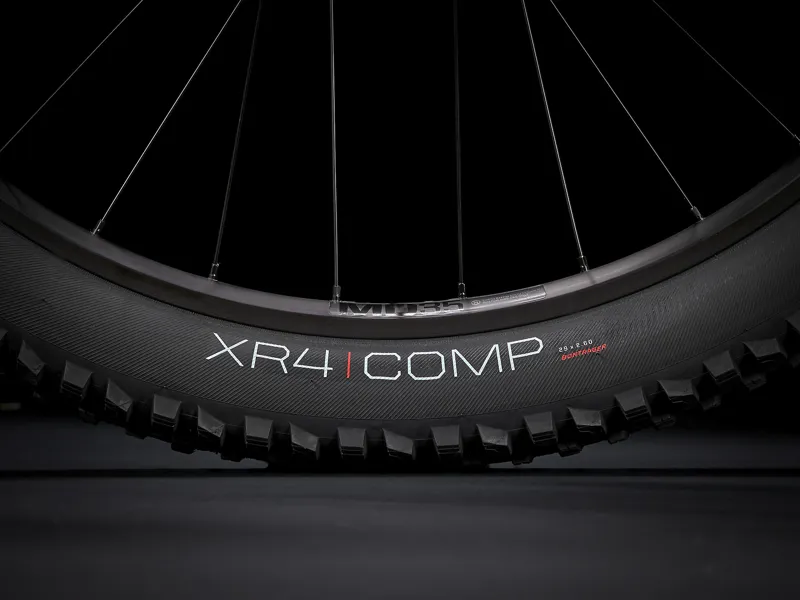

TiresBontrager XR4 Comp, wire bead, 30 tpi, 29x2.60" front (smaller sizes: 27.5x2.60")
Spokes14g Stainless Steel
Drivetrain
ShiftersShimano Deore M6100, 12 speed

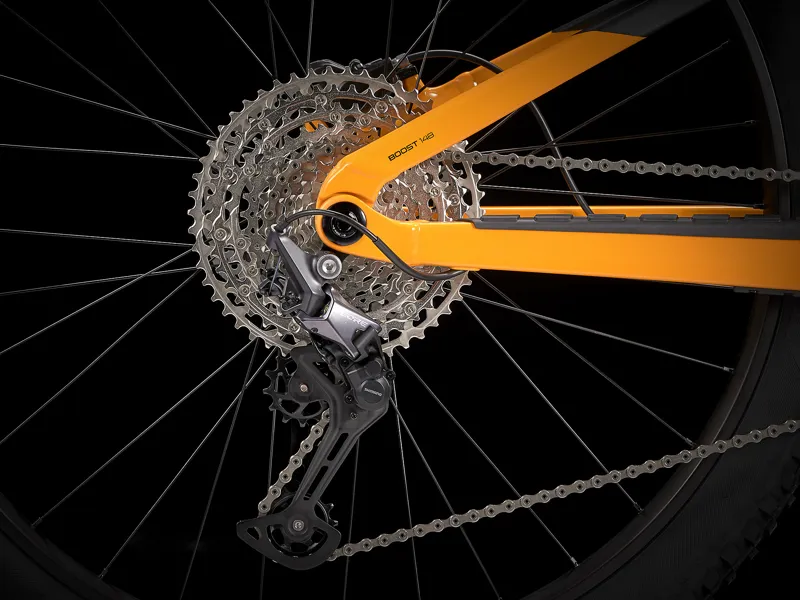

Rear derailleurShimano Deore M6100 Long Cage

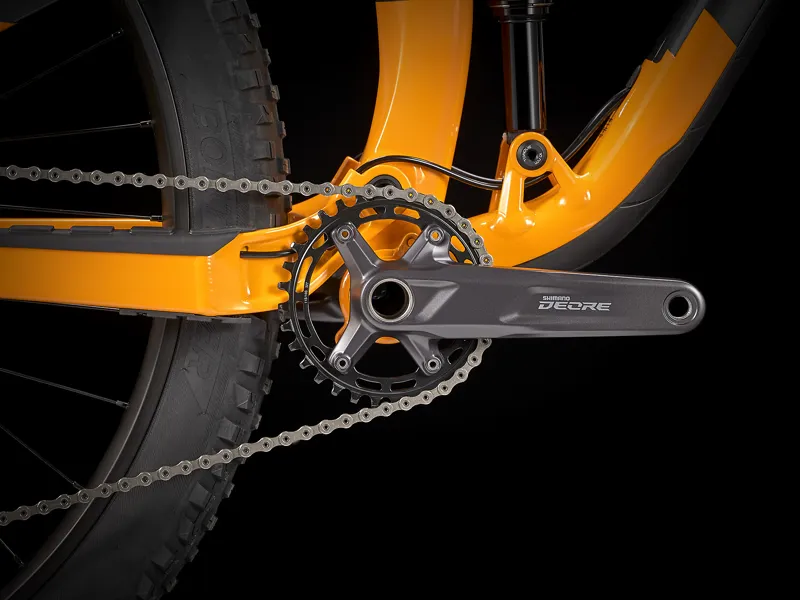

CrankShimano M511, 30T steel ring, Boost (52mm chainline)
Bottom bracketShimano MT500, 92mm, PressFit
CassetteDeore M6100, 10-51, 12 Speed
ChainShimano Deore M6100, 12 speed
Max Chainring Size34T
Components
SaddleBontrager Arvada, steel rails, 138mm width
SeatpostTranzX JD-YSP18 dropper, internal routing, 31.6mm
HandlebarBontrager alloy, 31.8mm, 15mm rise , 750mm width
StemBontrager Rhythm Comp, 31.8mm, Knock Block, 0 degree , 50mm length
GripsBontrager XR Trail Comp, nylon lock-on
HeadsetKnock Block Integrated, 58 degree radius cartridge bearing, 1-1/8" top, 1.5" bottom

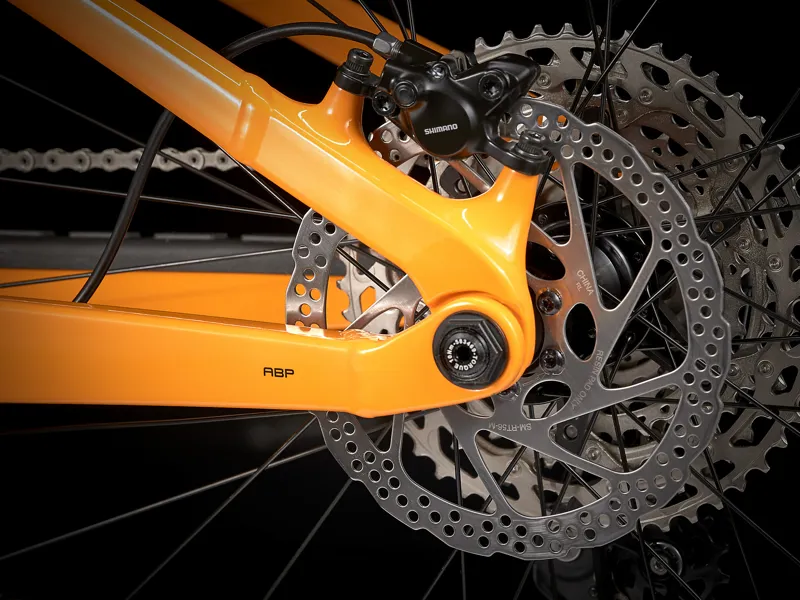

BrakesetShimano hydraulic disc, MT201 lever, MT200 caliper
Brake RotorsShimano RT66 6-Bolt 180mm

Sizing Information

Geometry

Frame size number Frame size letter Geometry position Wheel size A  Seat tube B —Seat tube angle Effective seat tube angle C Head tube length D  Head angle E  Effective top tube F  Bottom bracket height G  Bottom bracket drop H  Chainstay length I Offset J Trail K Wheelbase L  Standover M  Frame reach N  Frame stack
14.0 XS Low 27.5" 35.6 69.0° 75.0° 9.0 66.0° 54.6 33.5 2.1 43.7 4.3 11.1 112.0 69.5 39.5 56.3
14.0 XS High 27.5" 35.5 69.5° 75.5° 9.0 66.5° 54.5 34.1 1.4 43.6 4.3 10.6 111.9 70.0 40.0 55.9
15.5 S High 27.5" 39.5 69.5° 75.5° 10.0 66.5° 56.7 34.1 1.4 43.6 4.3 10.6 114.3 70.7 42.0 56.8
15.5 S Low 27.5" 39.5 69.0° 75.0° 10.0 66.0° 56.8 33.5 2.1 43.7 4.3 11.1 114.4 70.0 41.5 57.2
15.5 S High 29" 39.5 68.0° 75.5° 10.0 66.5° 57.7 34.6 2.8 43.6 4.3 11.5 115.3 70.7 42.0 60.5
15.5 S Low 29" 39.5 67.5° 75.0° 10.0 66.0° 57.8 34.0 3.4 43.7 4.3 11.9 115.4 70.1 41.5 60.9
17.5 M Low 29" 42.0 67.5° 75.0° 10.0 66.0° 60.3 34.0 3.4 43.7 4.3 11.9 117.9 74.2 44.0 60.9
