The Mondraker Crafty Carbon R Electric Bike is your ticket to ride Mondraker’s best range of ebikes ever.
The Mondraker Crafty Carbon R Electric Bike is your ticket to ride Mondraker’s best range of ebikes ever.
Mondraker

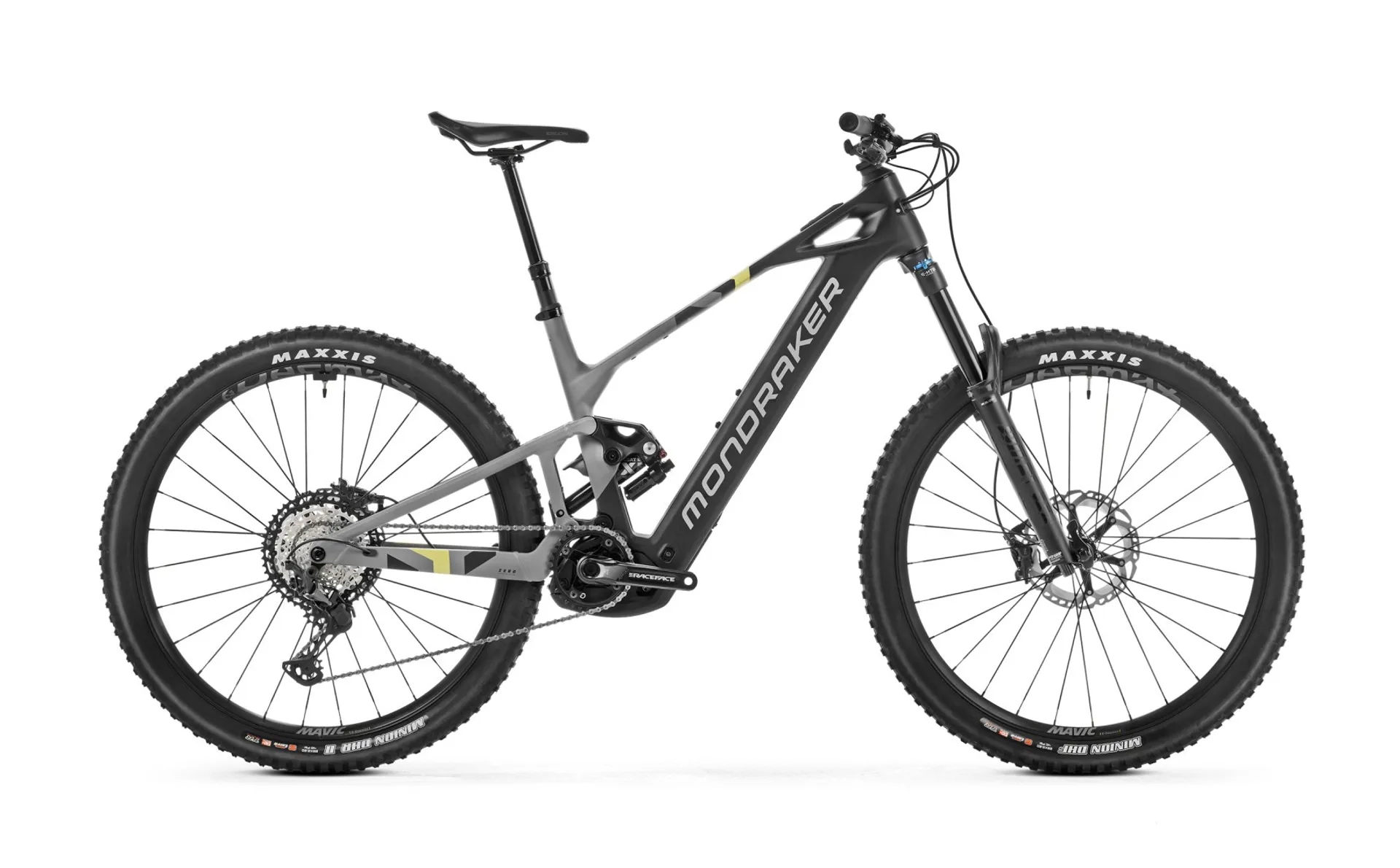

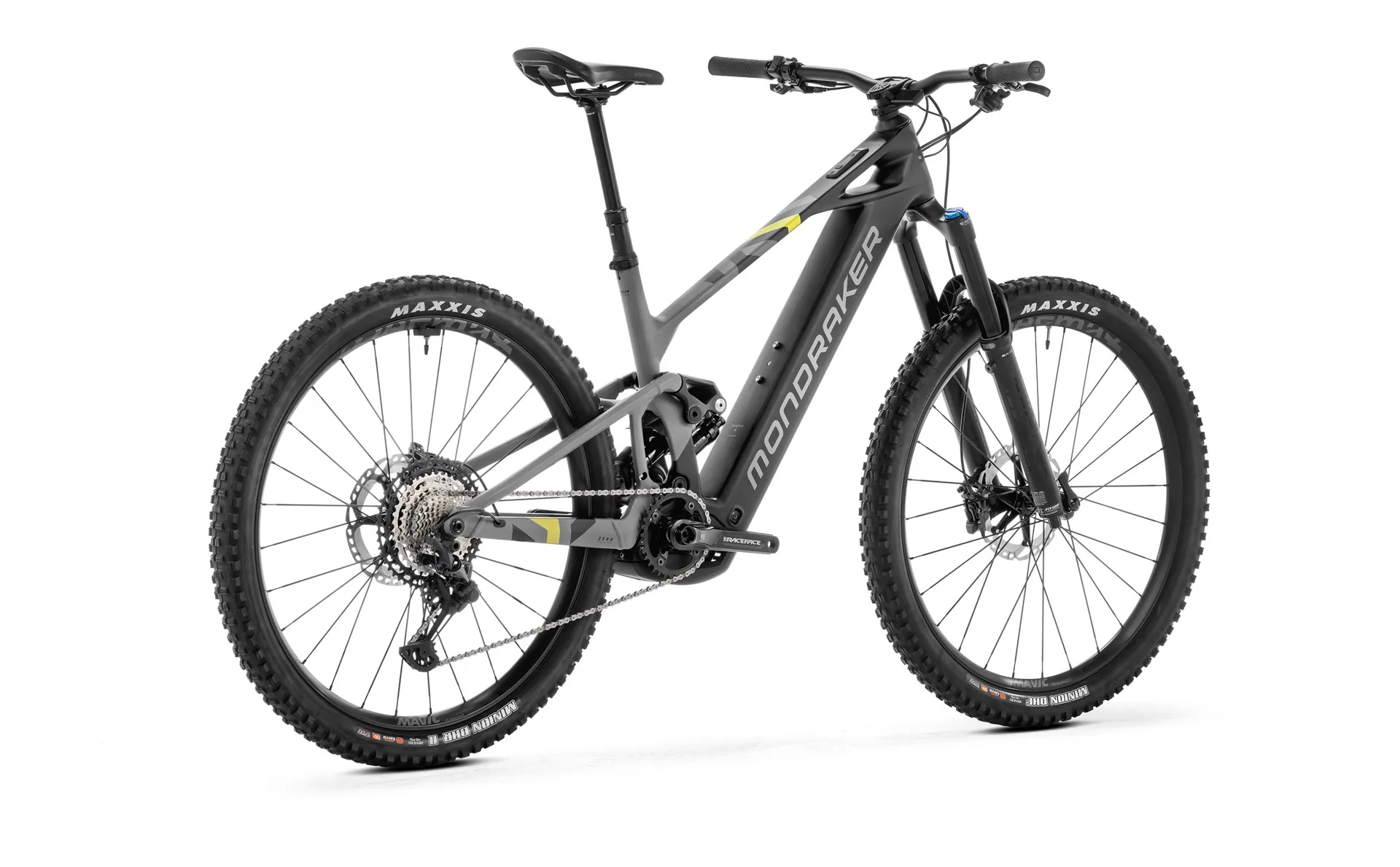

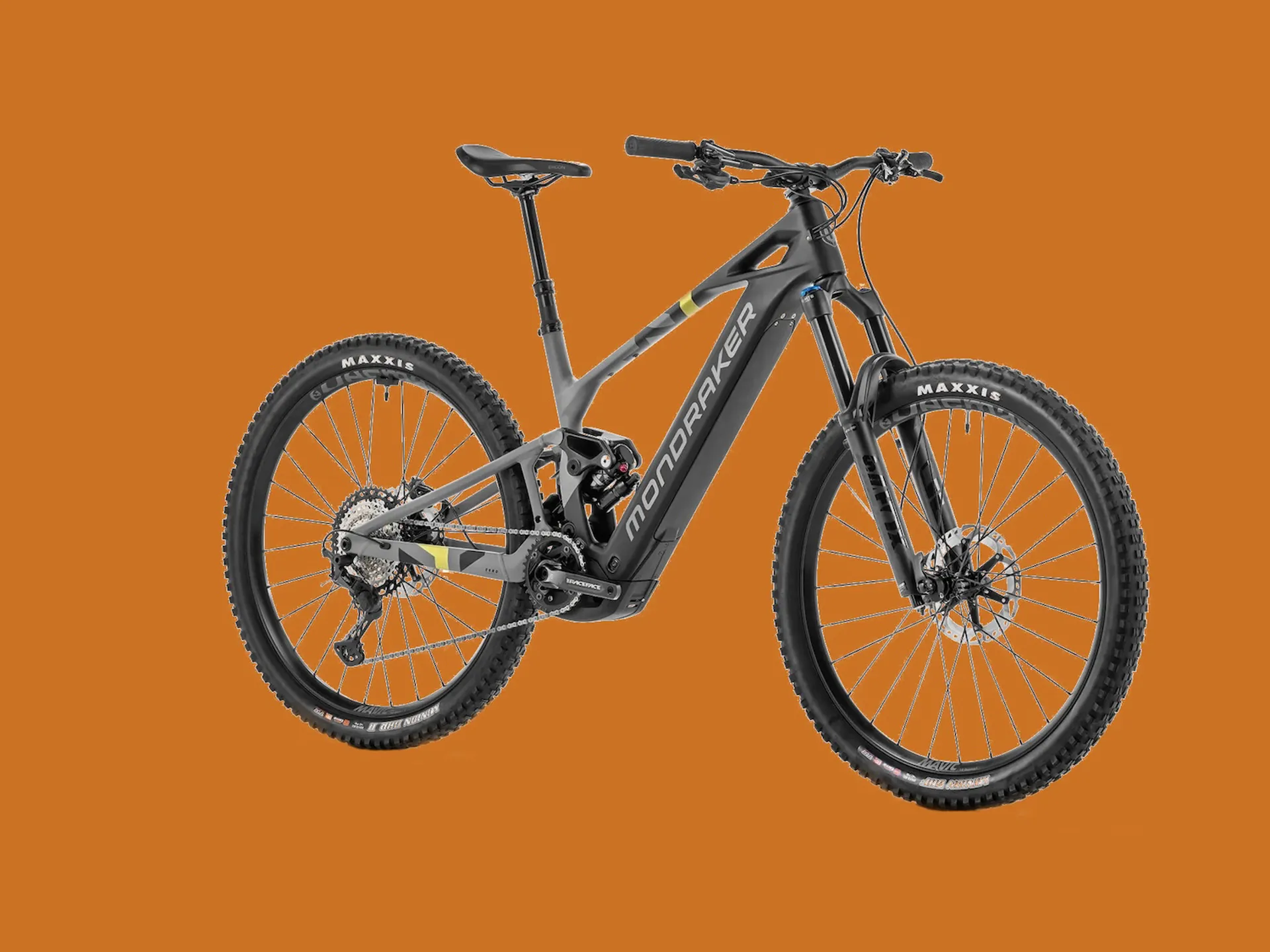

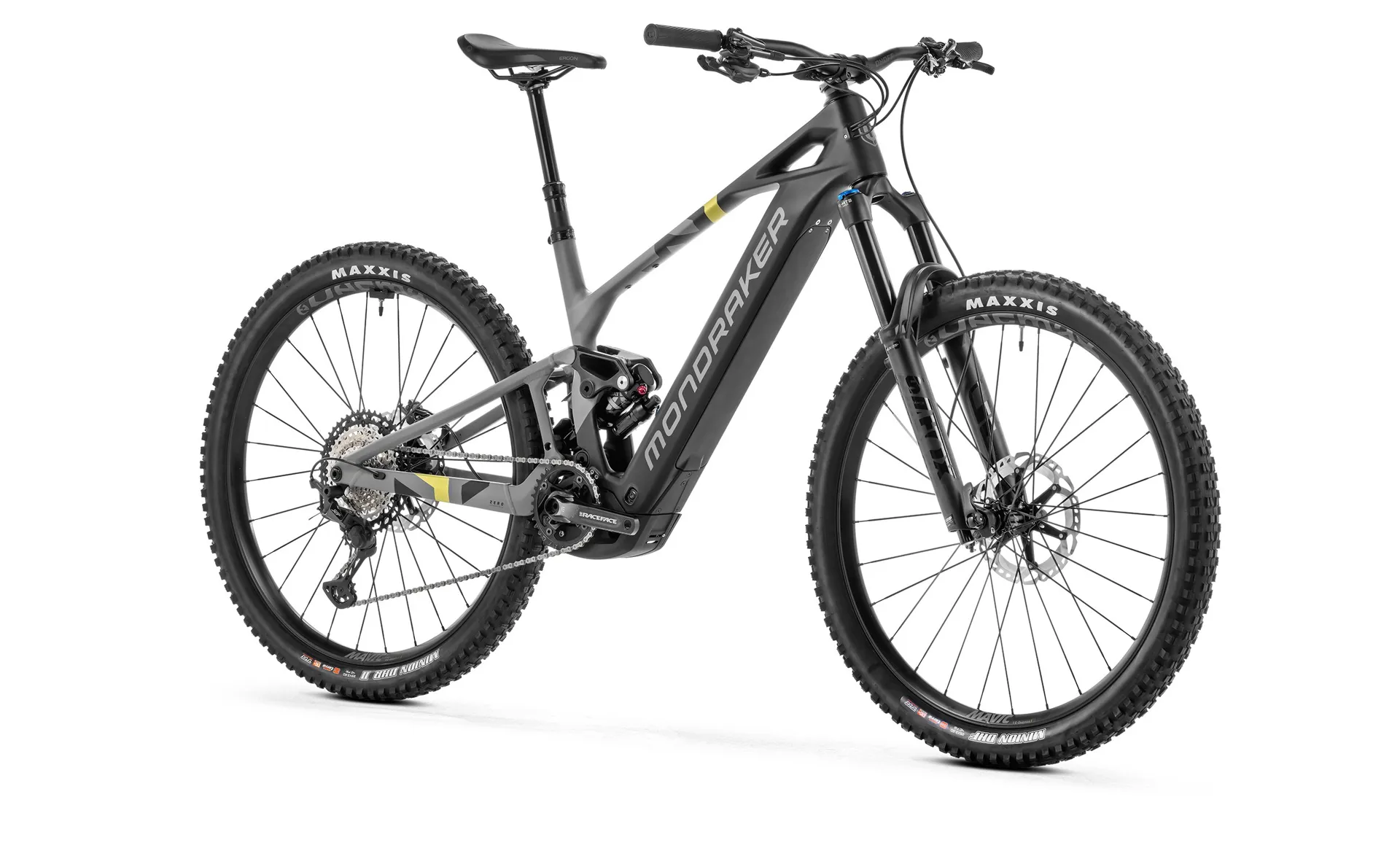

Mondraker Crafty Carbon R Electric Bike 2025 Grey/Black/Yellow

£6,299.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Not happy with your purchase? Send it back to us or return in any of our stores and we will give you a full refund or exchange!

Returns

In the unlikely event that you are dissatisfied with your purchase please feel free to return your goods within 60 days of the purchase date for a full exchange or refund. Any item (excluding food and underwear) can be returned to us for any reason provided it is returned in ‘showroom condition’, with its original packaging, tags and a valid receipt/delivery note.

Simply box up your items for return, include a cover note with the word REFUND or EXCHANGE inside & follow the below steps for safe return to our warehouse; where your return will be processed promptly.

Return Items by Post

It is your responsibility to ensure that the item is returned to us in a safe and secure manner, and in the event of a refund or exchange, in saleable condition (in original packaging and including all warranty, cards, manuals and accessories).

Customers are accountable for return shipping charges.

  1. You should always keep proof of postage and we advise you to use a ‘signed for service’ when returning goods.
  2. Send your package using a recorded delivery method (always keep a copy of your receipt!) to the following address:

Leisure Lakes Bikes Returns,
Unit 1 Osprey Place
Titan Way,
Leyland,
PR26 7EW

Checkout by Amazon Returns

If you used the pay by Amazon option when checking out then please send your package using a recorded delivery method (always keep a copy of your receipt!) with a note inside stating whether you want an exchange (what you want it exchanging for) or refund, to the following address:

Leisure Lakes Bikes Returns,
Unit 1 Osprey Place
Titan Way,
Leyland,
PR26 7EW

Bike & Bulky Item Returns

If you wish to return your bike to us please keep it in the box it arrived in and call us on 01772 644340 and we will arrange a collection.

Please note the following:

  • a) If we have sent you the incorrect bicycle, we will cover the cost of collection and delivery of the correct model.
  • b) If we have delivered the bicycle you ordered, but upon inspection you decide it is not the bike for you, we will charge you £50.00 for the collection.

Please do not ride the bike as a full refund cannot be given if the bike has been used or damaged.

Return Items to a store

Any item (excluding food and underwear) can be returned to any Leisure Lakes Bikes store not just the one you made your purchase at, including those made online. The item must be returned in ‘showroom condition’, with its original packaging, tags and with a valid receipt/delivery note.

Wrong size or you don't like the item?

If returning items that are not suitable for either refund or exchange you are accountable for the delivery cost in returning it to us. You should always keep proof of postage and we advise you to use a ‘signed for service’ when returning goods.

New faulty items/ Wrong Item Received

If you have received items that are faulty or not what you ordered send them back to us (using the steps above) and we will cover the delivery cost of the return if it is within 14 days of delivery. If we have supplied the correct product, it is not faulty or it is outside of the 14 days we can not be liable for your postage charges. You should always keep proof of postage and we advise you to use a ‘signed for service’ when returning goods.

In the event that you have received items that are fault or not what you ordered, please send them back to us as soon as possible. Only in these cases will we cover the cost of the return shipping charges.

Faulty Items

If you have received items that are faulty please send them back to us using the steps above. Please include a covering letter describing the fault and if you would like the item replacing or refunding. Once the item arrives back at our Mail Order Centre you will receive an email notifying you about the progress. Faulty items are then forwarded onto the suppliers to confirm the warranty issue. Please be patient with us as we need to receive this confirmation from the suppliers before we can process your request for a replacement/refund.

When returning the item please use Royal Mail1stClass Recorded* so that you have a tracking reference just in case! If your item arrived faulty we will refund your postage cost. If the item was in full working order at the time of delivery to you, we can not refund your return postage cost.

*In the event that you return a faulty/incorrect item we will refund your postage charge as long as it is 1stClass Recorded or a lesser value service. We do not refund premium services.

Refunds

Refunds will be processed using the same method of payment used for the original purchase. Credit and debit card refunds must be made to the card used for the original transaction, cheque payments will be refunded in cash but due to banking restrictions can only be refunded at least 14 days after the original purchase date. Due to the high incidence of fraud we regret that we are unable to offer any refund without a valid receipt/delivery note.

Refunds will be made for faulty or incorrect items, including any delivery charge incurred by the buyer (excluding ‘Special Delivery’) in the return of the item. If the products you ordered are delivered to you in good condition but you wish to return them for any reason we will refund the full value of the goods excluding any carriage charge upon receipt of your returned goods.

Items won’t be considered lost until after 15 working days of items beingdispatched. Once the 15 working days are up we will issue a refund or replacement.

Not received your order?

If you have not received your order please call us on 01772 644340 and a member of staff can confirm the shipping date. Unfortunately we cannot consider an item to be lost until 15 working days has passed (according to Royal Mail procedure). Once the 15 working days have passed we will be able to issue a full refund or resend your order.

Mondraker Crafty Carbon R Electric Bike 2025 Grey/Black/Yellow

Season:2025

Brand:Mondraker

Code:25-CRFCR-GRY/BLK/YEL

The Mondraker Crafty Carbon R Electric Bike is your ticket to ride Mondraker’s best range of ebikes ever. The Bosch CX motor, the heart of the machine, is combined with Bosch’s fully removable 800Wh battery (accessible via a cover on the underside of the downtube). This is the only build with a Shimano XT M8100 groupset, including XT four piston brakes, XT 12 speed rear mech and 10-51 cassette. Available in two colourways: Bunker Grey / Fog Grey / Flame Red, and Black / Nimbus Grey / Tonic Gold.

The ultimate enduro bike in Mondraker's full power mountain bike category, it comes with 29” wheels and 160/150mm of travel.The new Crafty Carbon range is available in 5 different builds, all with a carbon fibre frameguaranteeing versatility and endurance on the harshest of terrains. Crafty Carbon also incorporates the very latest edition of the Zero Suspension System and a flip chip on the lower shock mount as well as two different swingarm lengths depending on frame size: 455mm (S, M, ML) and 465mm (L and XL).

Mondraker's reference e-Bike would hardly be complete without the latest evolution of the Bosch CX motor. 100g lighter and smaller thanks to a more refined design architecture, the motor offers the same 85Nm of torque and 600W max power as before but with far better power delivery and control compared to previous models.Quieter overall when pedalling, mechanical rattles when riding downhill have also been eliminatedso that you can ride faster and more discreetly than ever before.

They’ve even optimized the size ranges. The new Crafty Carbon comes with optimised kinematics on the Zero Suspension System as well as the Forward Geometry,and with the addition of an intermediate ML size there are now 5 sizes to choose from.With this additional size, they’ve made the whole range more adaptable to an even wider range of body types so that there’s always a bike that’s right for you, a bike that offers a near-perfect fit. They’ve also optimised the swingarm length depending on frame size to keep things proportional and maintainthat Mondraker ‘feeling’ throughout, regardless of frame size.

Mondraker Crafty Carbon R Electric Bike Highlights

  • Motor -New Bosch Performance Line CX Cruise (25Km/h) SMART SYSTEM
  • Rear shock - Fox Float-X LV Performance, 185x55mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

  • Fork - Fox 38 29 Float GRIP Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload

Technical Information
Frame
Crafty Stealth Air full Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Sizes
S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
Rear shock
Fox Float-X LV Performance, 185x55mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings
CS40 compression, RL60 rebound, Rezi B40, LML, 0.2 volume spacer
Fork
Fox 38 29 Float GRIP Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
Headset
Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Stem
Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
Handlebar
Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
Grips
Onoff Forest, CNC lock-on, 135mm
Seatpost
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)
SaddleErgon SM-10
Front brake
Shimano XT M8120, 4 piston caliper, MT800 ICE-Tech 203mm CenterLock rotor, resin pads with fin
Rear brake
Shimano XT M8120, 4 piston caliper, MT800 ICE-Tech 203mm CenterLock rotor, resin pads with fin
Brake lever
Shimano XT M8100, ergonomic antiskid lever with servo wave, tool less reach adjust, free stroke adjust
Rims
Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
Spokes
Mavic J-bend double butted, contactless lacing
Front hub
Mavic, Boost 15x110mm, IS 6 bolts
Rear hub
Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, MS freehub
Front tire
Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Rear tire
Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Crankset
Race Face Aeffect-R ebike, 160mm
Rings
Race Face, 34T, steel, direct mount
Chain
Shimano XT M8100, 12s
Rear derrailleur
Shimano XT M8100, SGS, Shadow+
Shift levers
Shimano XT M8100, Rapid Fire Plus, 12s
Casette
Shimano XT M8100 10-51T Hyperglide+, 12s
Weight23,9 kg
Display
Purion 400 / Bosch Mini Remote / Bosch System Controller
Motor
New Bosch Performance Line CX Cruise (25Km/h) SMART SYSTEM (BDU384Y)
Battery
Bosch Powertube 800Wh
Sizing Information


S [Std/Low]M [Std/Low]M/L [Std/Low]L [Std/Low]XL [Std/Low]
Seattube length380 mm410 mm435 mm460 mm490 mm
Toptube length581 mm/582 mm596 mm/597 mm618 mm/619 mm640 mm/641 mm662 mm/663 mm
Bottom bracket drop-25 mm/-30 mm-25 mm/-30 mm-25 mm/-30 mm-25 mm/-30 mm-25 mm/-30 mm
Bottom bracket height350 mm/345 mm350 mm/345 mm350 mm/345 mm350 mm/345 mm350 mm/345 mm
Chainstay length455 mm/456 mm455 mm/456 mm455 mm/456 mm465 mm/466 mm465 mm/466 mm
Seat tube angle73°/72.65°73°/72.65°73°/72.65°73°/72.65°73°/72.65°
Effective seattube angle77.95°/77.6°77.95°/77.6°77.95°/77.6°77.95°/77.6°77.95°/77.6°
Headtube angle64.5°/64.15°64.5°/64.15°64.5°/64.15°64.5°/64.15°64.5°/64.15°
Fork Offset44 mm44 mm44 mm/44 mm44 mm44 mm/44 mm
Wheelbase1240 mm/1241 mm1255 mm/1256 mm1280 mm/1281 mm1314 mm/1315 mm1338 mm/1339 mm
Headtube length120 mm120 mm130 mm140 mm150 mm
Reach445 mm/441 mm460 mm/456 mm480 mm/476 mm500 mm/496 mm520 mm/516 mm
Stack638 mm/641 mm638 mm/641 mm647 mm/650 mm656 mm/659 mm665 mm/668 mm
