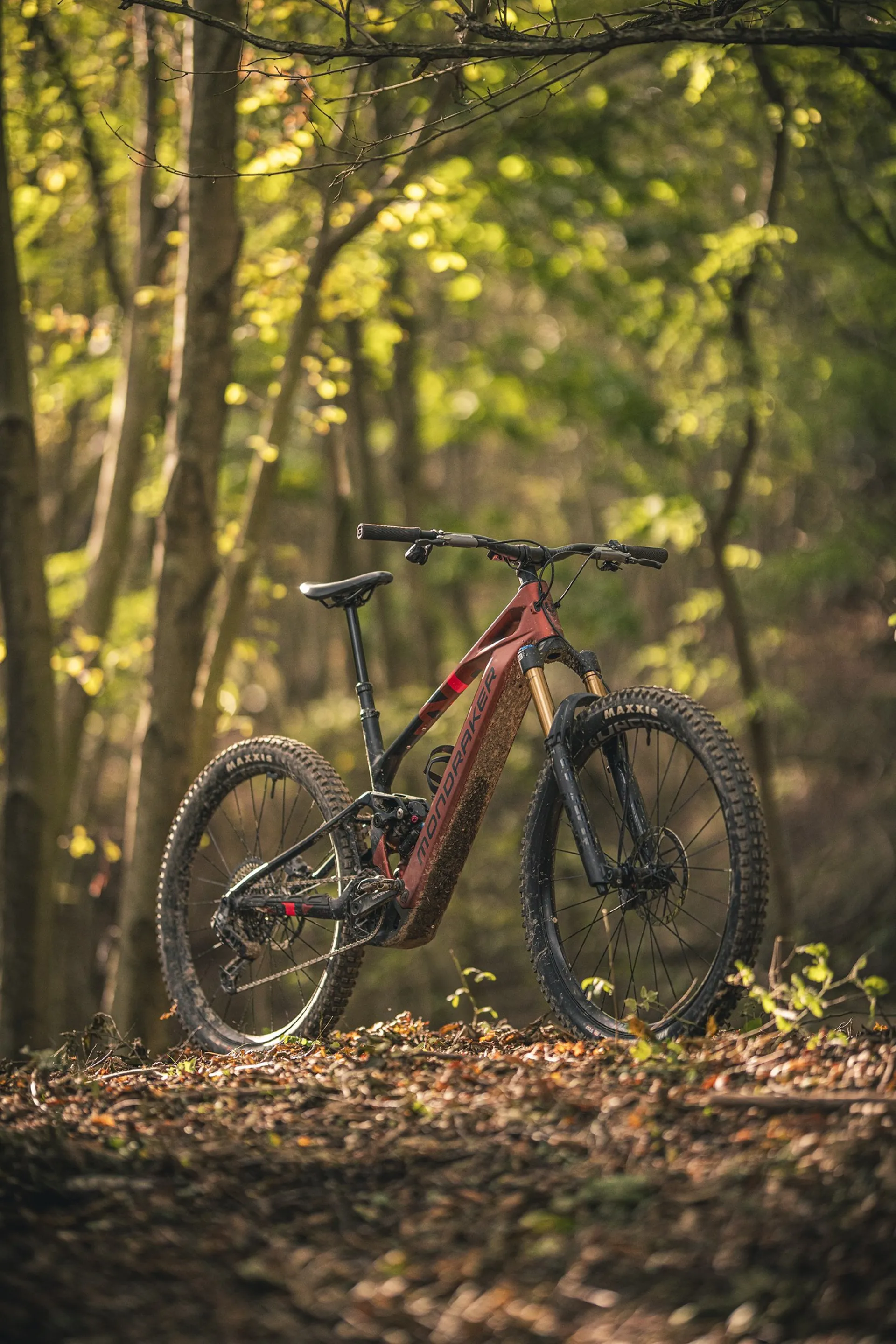

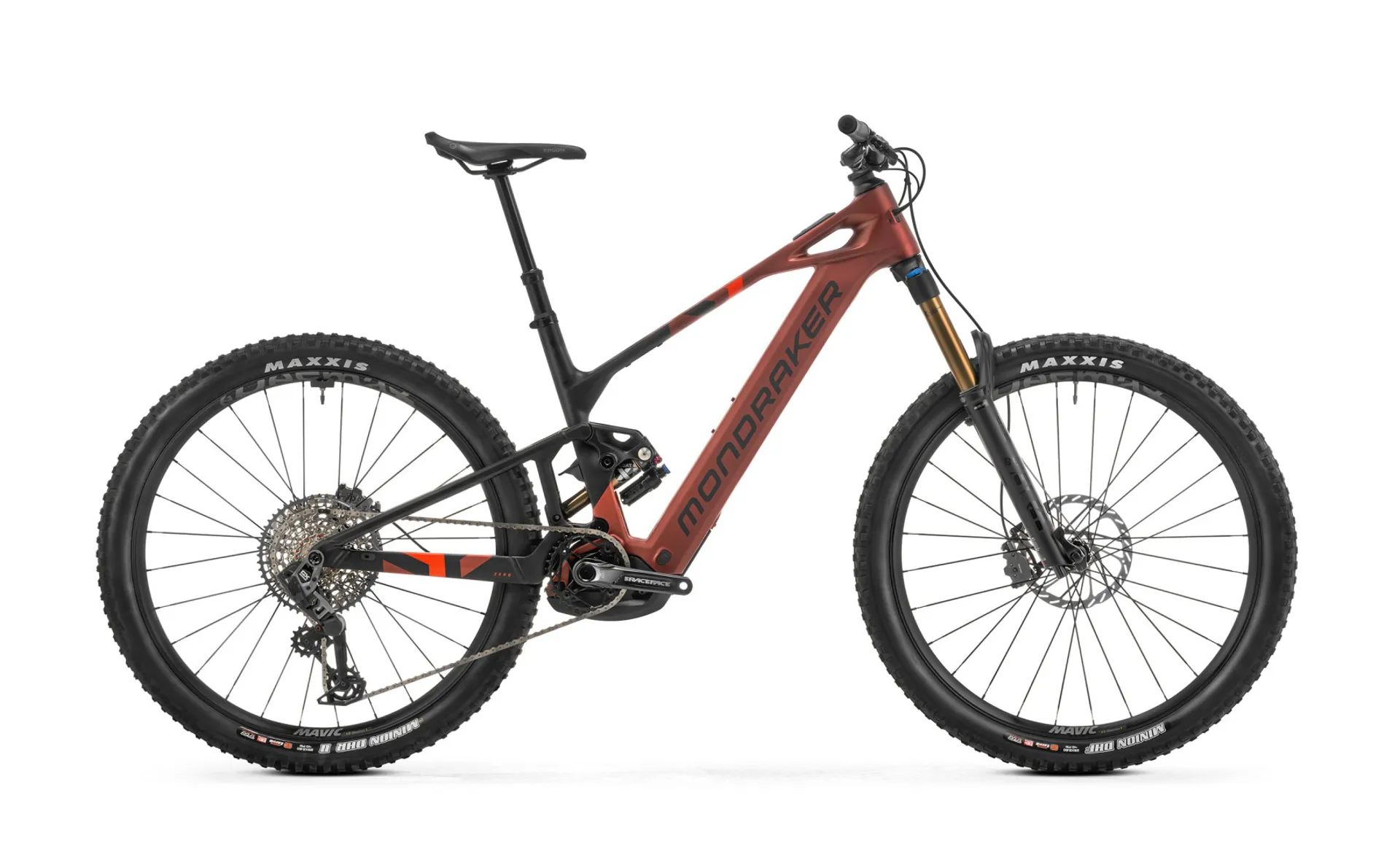

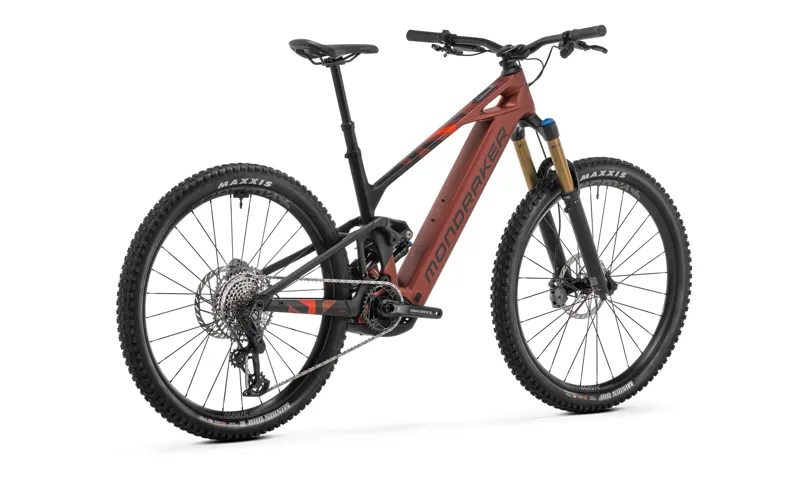

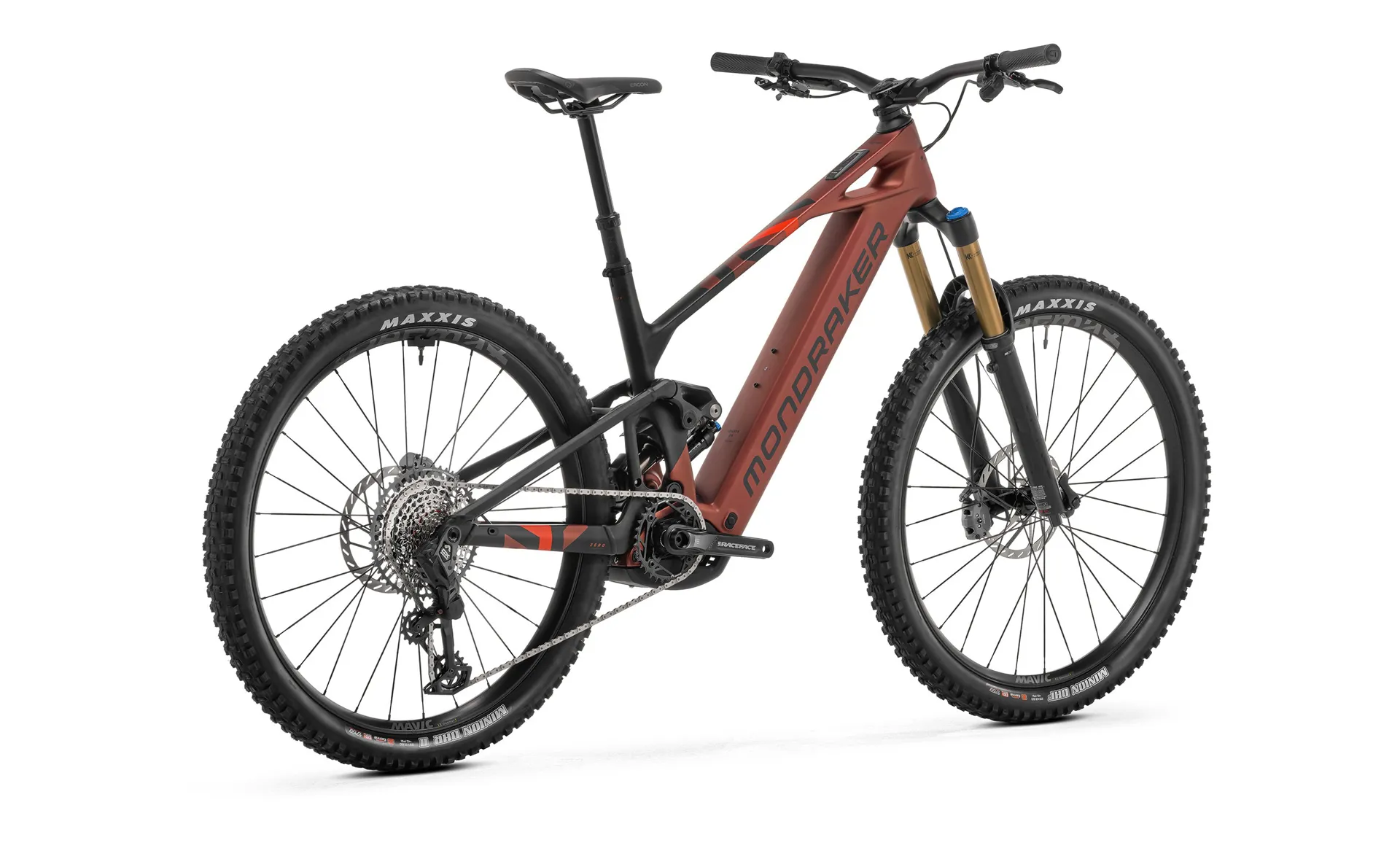

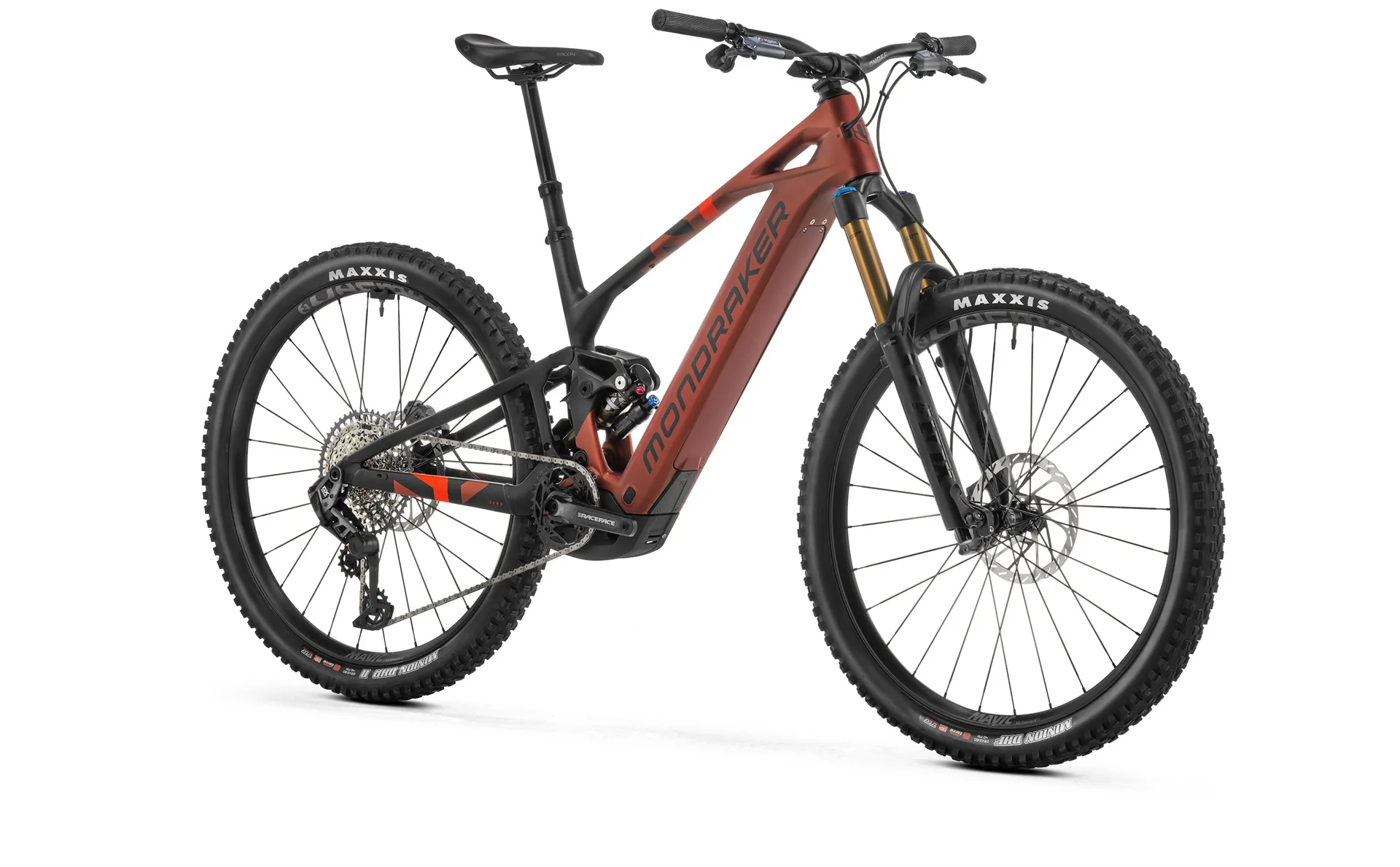

Mondraker Crafty Carbon RR Electric Bike 2025 Red/Black

Season:2025

Brand:Mondraker

Code:25-CRFCRR-RED/BLK

The Mondraker Crafty Carbon RR Electric Bike takes things up a notch when it comes to components, being the first bike in the range to offer SRAM’s wireless GX AXS drivetrain and Fox suspension front and rear with their patented Kashima coating. It also comes with the much talked about SRAM Maven brakes and Bosch’s new 800Wh battery. The RR comes in the spectacular Earth Red / Black / Flame Red paint scheme. ONOFF components have you covered for bars, stem and the Pija dropper post in different lengths dependant on frame size.

The ultimate enduro bike in Mondraker's full power mountain bike category, it comes with 29” wheels and 160/150mm of travel.The new Crafty Carbon range is available in 5 different builds, all with a carbon fibre frameguaranteeing versatility and endurance on the harshest of terrains. Crafty Carbon also incorporates the very latest edition of the Zero Suspension System and a flip chip on the lower shock mount as well as two different swingarm lengths depending on frame size: 455mm (S, M, ML) and 465mm (L and XL).

Mondraker's reference e-Bike would hardly be complete without the latest evolution of the Bosch CX motor. 100g lighter and smaller thanks to a more refined design architecture, the motor offers the same 85Nm of torque and 600W max power as before but with far better power delivery and control compared to previous models.Quieter overall when pedalling, mechanical rattles when riding downhill have also been eliminatedso that you can ride faster and more discreetly than ever before.

They’ve even optimized the size ranges. The new Crafty Carbon comes with optimised kinematics on the Zero Suspension System as well as the Forward Geometry,and with the addition of an intermediate ML size there are now 5 sizes to choose from.With this additional size, they’ve made the whole range more adaptable to an even wider range of body types so that there’s always a bike that’s right for you, a bike that offers a near-perfect fit. They’ve also optimised the swingarm length depending on frame size to keep things proportional and maintainthat Mondraker ‘feeling’ throughout, regardless of frame size.

Mondraker Crafty Carbon RR Electric Bike Highlights

  • Motor -New Bosch Performance Line CX Cruise (25Km/h) SMART SYSTEM
  • Rear shock - Fox Float X Factory Kashima EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
  • Fork - Fox 38 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload

Technical Information

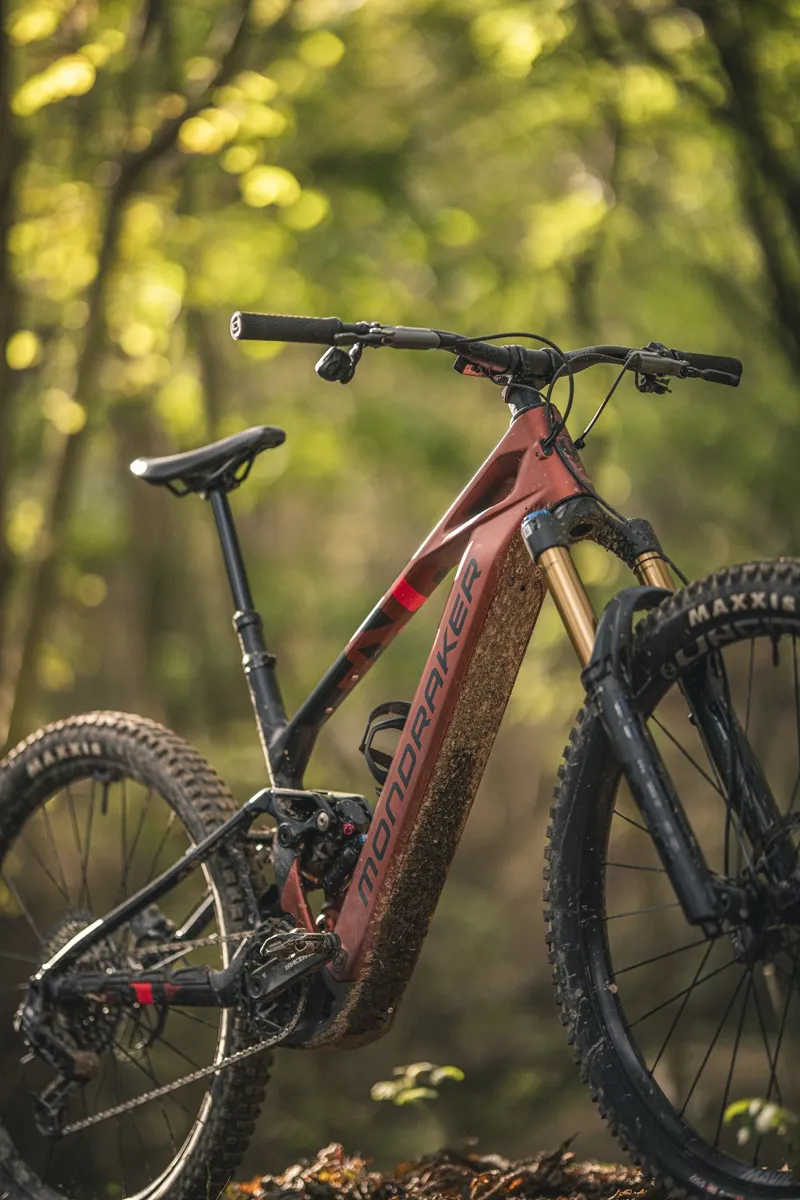

Frame
Crafty Stealth Air full Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Sizes
S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
Rear shock
Fox Float X Factory Kashima EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings
CS40 compression, RL60 rebound, Rezi B40, LML, 0.2 volume spacer

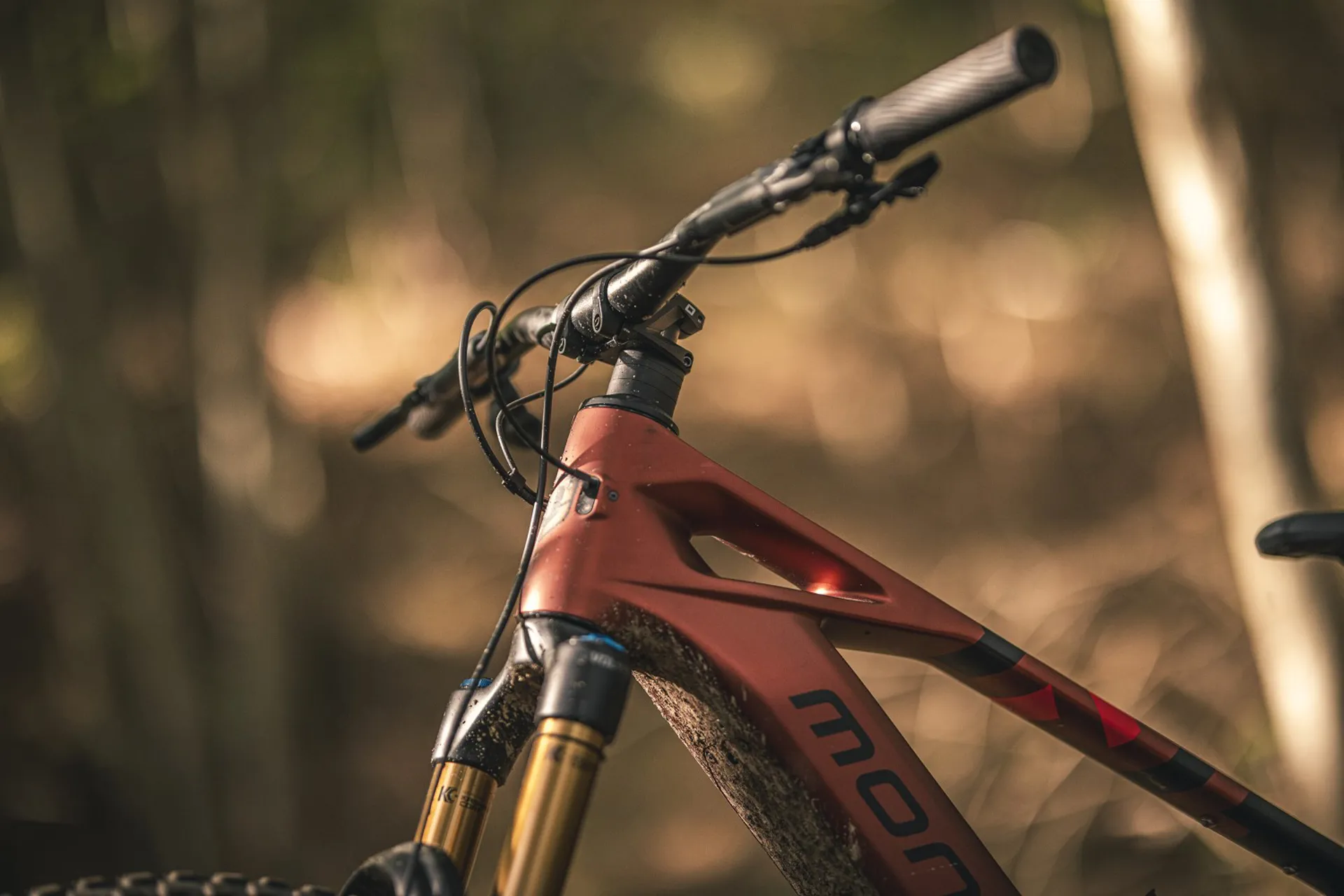

Fork
Fox 38 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
Headset
Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Stem
Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
Handlebar
Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
Grips
Onoff Forest, CNC lock-on, 135mm
Seatpost
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)
SaddleErgon SM-10
Front brake
Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake
Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever
Sram Maven Bronze , SwingLink and lever pivot bushings, tools-free reach adjust
Rims
Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
Spokes
Mavic J-bend double butted, contactless lacing
Front hub
Mavic, Boost 15x110mm, IS 6 bolts
Rear hub
Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub
Front tire
Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Rear tire
Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Crankset
Race Face Aeffect-R ebike, 160mm
Rings
Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55
Chain
Sram GX Eagle T-Type, 12s, Powerlock
Rear derrailleur
Sram GX Eagle AXS, T-Type, 12s
Shift levers
Sram Eagle AXS Pod MMX, 12s
Casette
Sram XS-1275, 10-52T, T-Type, 12s
Weight24,4 kg
Display
Purion 400 / Bosch Mini Remote / Bosch System Controller

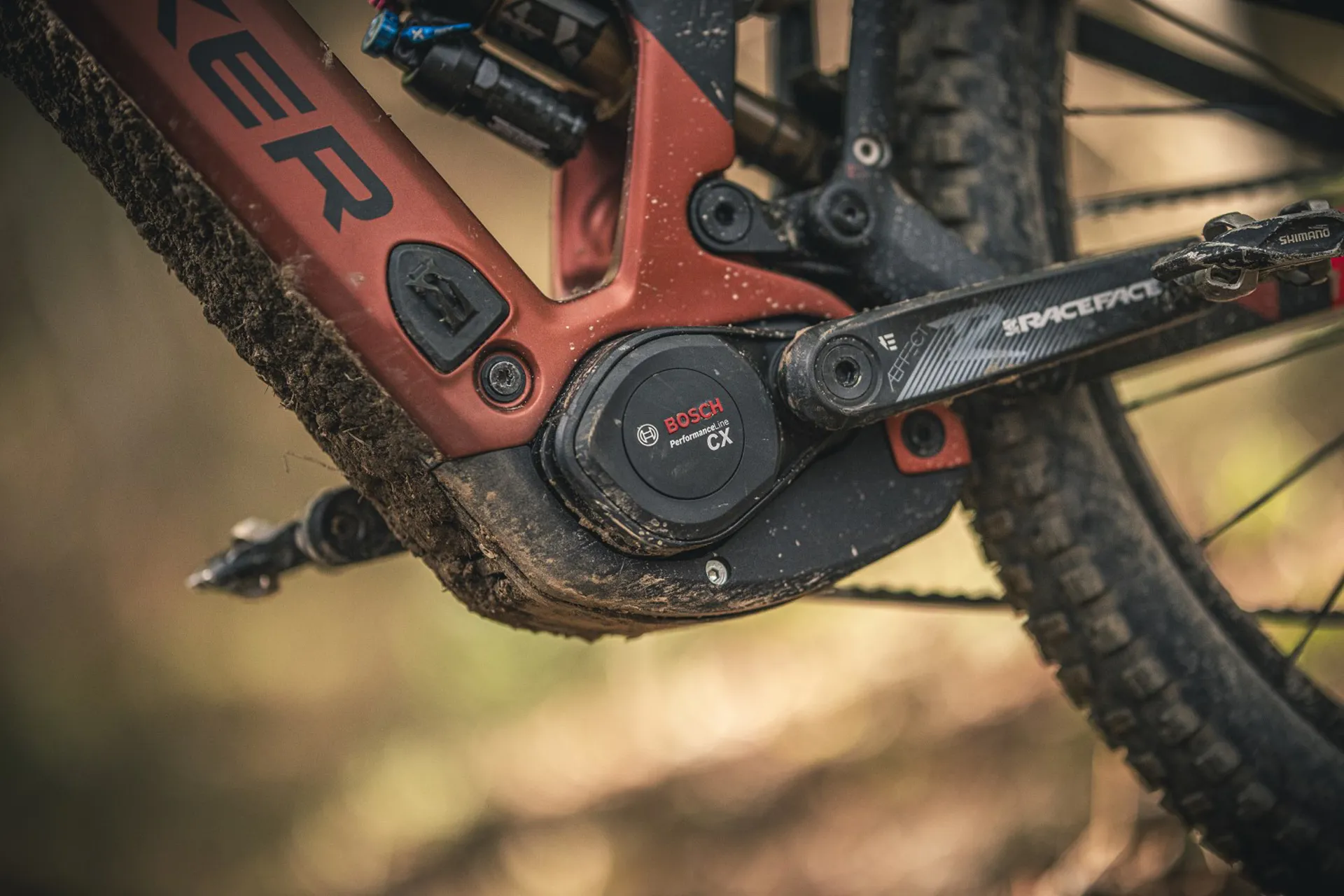

Motor
New Bosch Performance Line CX Cruise (25Km/h) SMART SYSTEM (BDU384Y)
Battery
Bosch Powertube 800Wh
Sizing Information


S [Std/Low]M [Std/Low]M/L [Std/Low]L [Std/Low]XL [Std/Low]
Seattube length380 mm410 mm435 mm460 mm490 mm
Toptube length581 mm/582 mm596 mm/597 mm618 mm/619 mm640 mm/641 mm662 mm/663 mm
Bottom bracket drop-25 mm/-30 mm-25 mm/-30 mm-25 mm/-30 mm-25 mm/-30 mm-25 mm/-30 mm
Bottom bracket height350 mm/345 mm350 mm/345 mm350 mm/345 mm350 mm/345 mm350 mm/345 mm
Chainstay length455 mm/456 mm455 mm/456 mm455 mm/456 mm465 mm/466 mm465 mm/466 mm
Seat tube angle73°/72.65°73°/72.65°73°/72.65°73°/72.65°73°/72.65°
Effective seattube angle77.95°/77.6°77.95°/77.6°77.95°/77.6°77.95°/77.6°77.95°/77.6°
Headtube angle64.5°/64.15°64.5°/64.15°64.5°/64.15°64.5°/64.15°64.5°/64.15°
Fork Offset44 mm44 mm44 mm/44 mm44 mm44 mm/44 mm
Wheelbase1240 mm/1241 mm1255 mm/1256 mm1280 mm/1281 mm1314 mm/1315 mm1338 mm/1339 mm
Headtube length120 mm120 mm130 mm140 mm150 mm
Reach445 mm/441 mm460 mm/456 mm480 mm/476 mm500 mm/496 mm520 mm/516 mm
Stack638 mm/641 mm638 mm/641 mm647 mm/650 mm656 mm/659 mm665 mm/668 mm
