The Orbea Orca Aero M20i Team-Disc is the perfect accomplice for riders who aspire to become more familiar with that spot on the podium. Do battle off the front while others hide in the wheels, vanquish.
The Orbea Orca Aero M20i Team-Disc is the perfect accomplice for riders who aspire to become more familiar with that spot on the podium. Do battle off the front while others hide in the wheels, vanquish.
Orbea

Orbea Orca Aero M20iTeam-Disc Ultegra Road Bike 2020 Silver Red

Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Not happy with your purchase? Send it back to us or return in any of our stores and we will give you a full refund or exchange!

Returns

In the unlikely event that you are dissatisfied with your purchase please feel free to return your goods within 60 days of the purchase date for a full exchange or refund. Any item (excluding food and underwear) can be returned to us for any reason provided it is returned in ‘showroom condition’, with its original packaging, tags and a valid receipt/delivery note.

Simply box up your items for return, include a cover note with the word REFUND or EXCHANGE inside & follow the below steps for safe return to our warehouse; where your return will be processed promptly.

Return Items by Post

It is your responsibility to ensure that the item is returned to us in a safe and secure manner, and in the event of a refund or exchange, in saleable condition (in original packaging and including all warranty, cards, manuals and accessories).

Customers are accountable for return shipping charges.

  1. You should always keep proof of postage and we advise you to use a ‘signed for service’ when returning goods.
  2. Send your package using a recorded delivery method (always keep a copy of your receipt!) to the following address:

Leisure Lakes Bikes Returns,
Unit 1 Osprey Place
Titan Way,
Leyland,
PR26 7EW

Checkout by Amazon Returns

If you used the pay by Amazon option when checking out then please send your package using a recorded delivery method (always keep a copy of your receipt!) with a note inside stating whether you want an exchange (what you want it exchanging for) or refund, to the following address:

Leisure Lakes Bikes Returns,
Unit 1 Osprey Place
Titan Way,
Leyland,
PR26 7EW

Bike & Bulky Item Returns

If you wish to return your bike to us please keep it in the box it arrived in and call us on 01772 644340 and we will arrange a collection.

Please note the following:

  • a) If we have sent you the incorrect bicycle, we will cover the cost of collection and delivery of the correct model.
  • b) If we have delivered the bicycle you ordered, but upon inspection you decide it is not the bike for you, we will charge you £50.00 for the collection.

Please do not ride the bike as a full refund cannot be given if the bike has been used or damaged.

Return Items to a store

Any item (excluding food and underwear) can be returned to any Leisure Lakes Bikes store not just the one you made your purchase at, including those made online. The item must be returned in ‘showroom condition’, with its original packaging, tags and with a valid receipt/delivery note.

Wrong size or you don't like the item?

If returning items that are not suitable for either refund or exchange you are accountable for the delivery cost in returning it to us. You should always keep proof of postage and we advise you to use a ‘signed for service’ when returning goods.

New faulty items/ Wrong Item Received

If you have received items that are faulty or not what you ordered send them back to us (using the steps above) and we will cover the delivery cost of the return if it is within 14 days of delivery. If we have supplied the correct product, it is not faulty or it is outside of the 14 days we can not be liable for your postage charges. You should always keep proof of postage and we advise you to use a ‘signed for service’ when returning goods.

In the event that you have received items that are fault or not what you ordered, please send them back to us as soon as possible. Only in these cases will we cover the cost of the return shipping charges.

Faulty Items

If you have received items that are faulty please send them back to us using the steps above. Please include a covering letter describing the fault and if you would like the item replacing or refunding. Once the item arrives back at our Mail Order Centre you will receive an email notifying you about the progress. Faulty items are then forwarded onto the suppliers to confirm the warranty issue. Please be patient with us as we need to receive this confirmation from the suppliers before we can process your request for a replacement/refund.

When returning the item please use Royal Mail1stClass Recorded* so that you have a tracking reference just in case! If your item arrived faulty we will refund your postage cost. If the item was in full working order at the time of delivery to you, we can not refund your return postage cost.

*In the event that you return a faulty/incorrect item we will refund your postage charge as long as it is 1stClass Recorded or a lesser value service. We do not refund premium services.

Refunds

Refunds will be processed using the same method of payment used for the original purchase. Credit and debit card refunds must be made to the card used for the original transaction, cheque payments will be refunded in cash but due to banking restrictions can only be refunded at least 14 days after the original purchase date. Due to the high incidence of fraud we regret that we are unable to offer any refund without a valid receipt/delivery note.

Refunds will be made for faulty or incorrect items, including any delivery charge incurred by the buyer (excluding ‘Special Delivery’) in the return of the item. If the products you ordered are delivered to you in good condition but you wish to return them for any reason we will refund the full value of the goods excluding any carriage charge upon receipt of your returned goods.

Items won’t be considered lost until after 15 working days of items beingdispatched. Once the 15 working days are up we will issue a refund or replacement.

Not received your order?

If you have not received your order please call us on 01772 644340 and a member of staff can confirm the shipping date. Unfortunately we cannot consider an item to be lost until 15 working days has passed (according to Royal Mail procedure). Once the 15 working days have passed we will be able to issue a full refund or resend your order.

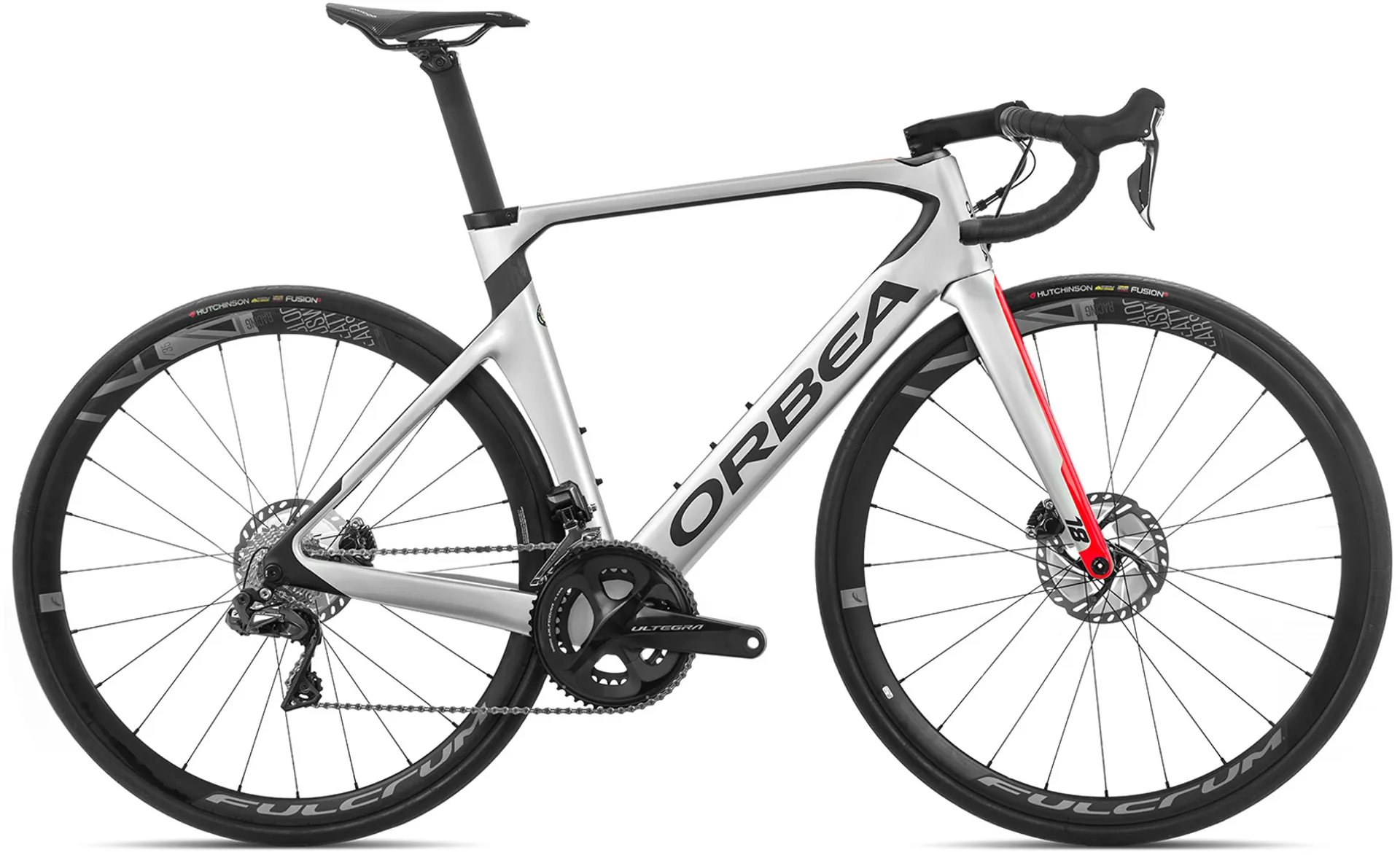

Orbea Orca Aero M20iTeam-Disc Ultegra Road Bike 2020 Silver Red

Season:2020

Brand:Orbea

Code:K138Silver/Red

Chase small improvements in every aspect of your riding, but don’t overlook the massive advantage offered by Orca Aero. A bike that doesn’t just cheat the wind but openly defies it – an ode to efficiency and stiffness that relishes the assault of a 1700 watt finish – Orca Aero is the perfect accomplice for riders who aspire to become more familiar with the podium. Do battle off the front while others hide in the wheels, vanquished. Take pulls. Love the gutter. Find unknown strength in a machine designed for glory and hoard it for that single moment when you seize your opportunity. Marginal gains are for those playing the long game - Orca Aero would rather take the win today.

Aerodynamics

  • New FreeFlow Fork - The wider fork opening reduces airflow pressure via the wheel and the fork achieving a 4 watt drag reduction. The new UCI legal fork designed according to the new regulations, provides all competitors with a 3:1 advantage ratio.
  • Shortened Tail - Enables the use of flatter tubing, which softens the airflow towards the bottles cages.
  • Double Radius - Opens up airflow around the tubing profile, with improved airflow over the different angles.
  • Flattend Sides - Reduces friction at the front of the tubing and provides better drag at low speeds.

Orca Aero Seat Post

The Orca Aero has an oval seat post designed to reduce air tubelence, without impairing its vibration absorbtion capabilities. The seat post is adjustable and employs a system that enables

Stiffness

Rigid Structure - The head tube, bottom bracket and chainstay joints are optimized for improved torsional strength. The sections have been optimized for each size frame to create a more rigid structure.

Power Transmission - A more rigid Orca Aero means improved transmission of power from the rider.


Integration

Simplicity and Compatibility - The headset and stem spacer design allows for several bar/stem options.

ICR Plus - (Internal Cable Routing) ensures the best internal cable routing: the system is friction free, easy to install and low maintenance. The icR+ System is compatible with both mechanica, all electronic and wireless transmissions.




Technical Information
FRAME
Orbea Orca Aero carbon OMR disc, monocoque construction,tapered 1-1/8" - 1,5", BB 386, powermeter compatible, Thru Axle 12mm x 142mm rear, thread M12x P1.5, internal cable routing, EC/DC compatible.
FORK
Orca Aero carbon OMR disc fork, full carbon steerer, tapered 1-1/8" - 1,5", carbon dropouts Thru axle 12mm x 100m, thread M12xP1.5

CRANKSET
Shimano Ultegra R8000 34x50t
HEADSET
FSA 1-1/8 - 1-1/2" Integrated Carbon Cup ACB Bearings
HANDLEBAR OC2 Road, reach 80mm, drop 125mm
STEM OC2 Road -8º
SHIFTERS Shimano ST-8070
BRAKES Shimano R8070 Hydraulic Disc
CASSETTE Shimano Ultegra R8000 11-28t 11-Speed
REAR DERAILLEUR Shimano Ultegra Di2 R8050 SS
CHAIN KMC X11-EL
WHEELS FULCRUM Racing 400 DB
TYRES Hutchinson Fusion 5 All Season TLR 700x28
SEATPOST Orbea Aero OMR
SADDLE Prologo Dimension T4.0 size143 mm
HANDLEBAR TAPE Orbea Anti-Slippery/Shock Proof
FRONT HUB
Orbea Road 12x100mm, thread M12xP1.5
REAR HUB
Orbea Road 12x142mm, thread M12xP1.5
PEDALS Not Included



Sizing Information

SIZE 47 49 51 53 55 57 60
1 - SEAT TUBE (C-T) 450 465 490 515 535 555 580
2 - TOP TUBE (EFF) 509 521 534 547 559 575 588
3 - HEAD TUBE 100 108 124 144 163 181 208
4 - CHAINSTAY 408
5 - BB HEIGHT 269,5 269,5 269,5 271,5 271,5 271,5 271,5
6 - BB DROP 72 72 72 70 70 70 70
7 - WHEELBASE 970 974 978 980 991 1000 1014
8 - HEAD ANGLE 71º 71.5º 72.2º 72.8º 73º 73.2º 73.2º
9 - SEAT ANGLE 74.5º 74º 73.7º 73.5º 73.5º 73.2º 73.2º
10 - STANDOVER 464,9 478,5 499,2 516,1 540 558,2 582,6
11 - REACH 370 375 380 385 391 398 404
12 - STACK 501 510 528 548 567 585 611
13 - FORK LENGTH 370
14 - RAKE 48 48 48 43 43 43 43
WHEEL SIZE 683



HEIGHT ( CM ) HEIGHT ( IN ) SIZE
155-160 61.1"-63.0" 47
160-166 63.0"-65.4" 49
167-172 65.7"-67.7" 51
173-179 68.1"-70.5" 53
180-185 70.9"-72.8" 55
186-191 73.2"-75.2" 57
192-207 75.6"-81.5" 60

* Estimated measurements

SIZE CRANK STEM HANDLEBAR
47 170 90 400
49 170 100 400
51 170 100 420
53 170 110 420
55 172 110 420
57 172 110 440
60 175 120 440

* The handlebar size is centre-centre
