The Trek Checkpoint SL7 eTap Gravel Bike pairs a light OCLV Carbon gravel frame with IsoSpeed and high-tech parts picked for performance and incredible ride quality on the toughest and roughest gravel adventures.
The Trek Checkpoint SL7 eTap Gravel Bike pairs a light OCLV Carbon gravel frame with IsoSpeed and high-tech parts picked for performance and incredible ride quality on the toughest and roughest gravel adventures.
Trek

Trek Checkpoint SL 7 eTap Gravel Bike 2022 Aqua/Carbon

£5,499.00 £6,400.00 14% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Not happy with your purchase? Send it back to us or return in any of our stores and we will give you a full refund or exchange!

Returns

In the unlikely event that you are dissatisfied with your purchase please feel free to return your goods within 60 days of the purchase date for a full exchange or refund. Any item (excluding food and underwear) can be returned to us for any reason provided it is returned in ‘showroom condition’, with its original packaging, tags and a valid receipt/delivery note.

Simply box up your items for return, include a cover note with the word REFUND or EXCHANGE inside & follow the below steps for safe return to our warehouse; where your return will be processed promptly.

Return Items by Post

It is your responsibility to ensure that the item is returned to us in a safe and secure manner, and in the event of a refund or exchange, in saleable condition (in original packaging and including all warranty, cards, manuals and accessories).

Customers are accountable for return shipping charges.

  1. You should always keep proof of postage and we advise you to use a ‘signed for service’ when returning goods.
  2. Send your package using a recorded delivery method (always keep a copy of your receipt!) to the following address:

Leisure Lakes Bikes Returns,
Unit 1 Osprey Place
Titan Way,
Leyland,
PR26 7EW

Checkout by Amazon Returns

If you used the pay by Amazon option when checking out then please send your package using a recorded delivery method (always keep a copy of your receipt!) with a note inside stating whether you want an exchange (what you want it exchanging for) or refund, to the following address:

Leisure Lakes Bikes Returns,
Unit 1 Osprey Place
Titan Way,
Leyland,
PR26 7EW

Bike & Bulky Item Returns

If you wish to return your bike to us please keep it in the box it arrived in and call us on 01772 644340 and we will arrange a collection.

Please note the following:

  • a) If we have sent you the incorrect bicycle, we will cover the cost of collection and delivery of the correct model.
  • b) If we have delivered the bicycle you ordered, but upon inspection you decide it is not the bike for you, we will charge you £50.00 for the collection.

Please do not ride the bike as a full refund cannot be given if the bike has been used or damaged.

Return Items to a store

Any item (excluding food and underwear) can be returned to any Leisure Lakes Bikes store not just the one you made your purchase at, including those made online. The item must be returned in ‘showroom condition’, with its original packaging, tags and with a valid receipt/delivery note.

Wrong size or you don't like the item?

If returning items that are not suitable for either refund or exchange you are accountable for the delivery cost in returning it to us. You should always keep proof of postage and we advise you to use a ‘signed for service’ when returning goods.

New faulty items/ Wrong Item Received

If you have received items that are faulty or not what you ordered send them back to us (using the steps above) and we will cover the delivery cost of the return if it is within 14 days of delivery. If we have supplied the correct product, it is not faulty or it is outside of the 14 days we can not be liable for your postage charges. You should always keep proof of postage and we advise you to use a ‘signed for service’ when returning goods.

In the event that you have received items that are fault or not what you ordered, please send them back to us as soon as possible. Only in these cases will we cover the cost of the return shipping charges.

Faulty Items

If you have received items that are faulty please send them back to us using the steps above. Please include a covering letter describing the fault and if you would like the item replacing or refunding. Once the item arrives back at our Mail Order Centre you will receive an email notifying you about the progress. Faulty items are then forwarded onto the suppliers to confirm the warranty issue. Please be patient with us as we need to receive this confirmation from the suppliers before we can process your request for a replacement/refund.

When returning the item please use Royal Mail1stClass Recorded* so that you have a tracking reference just in case! If your item arrived faulty we will refund your postage cost. If the item was in full working order at the time of delivery to you, we can not refund your return postage cost.

*In the event that you return a faulty/incorrect item we will refund your postage charge as long as it is 1stClass Recorded or a lesser value service. We do not refund premium services.

Refunds

Refunds will be processed using the same method of payment used for the original purchase. Credit and debit card refunds must be made to the card used for the original transaction, cheque payments will be refunded in cash but due to banking restrictions can only be refunded at least 14 days after the original purchase date. Due to the high incidence of fraud we regret that we are unable to offer any refund without a valid receipt/delivery note.

Refunds will be made for faulty or incorrect items, including any delivery charge incurred by the buyer (excluding ‘Special Delivery’) in the return of the item. If the products you ordered are delivered to you in good condition but you wish to return them for any reason we will refund the full value of the goods excluding any carriage charge upon receipt of your returned goods.

Items won’t be considered lost until after 15 working days of items beingdispatched. Once the 15 working days are up we will issue a refund or replacement.

Not received your order?

If you have not received your order please call us on 01772 644340 and a member of staff can confirm the shipping date. Unfortunately we cannot consider an item to be lost until 15 working days has passed (according to Royal Mail procedure). Once the 15 working days have passed we will be able to issue a full refund or resend your order.

Trek Checkpoint SL 7 eTap Gravel Bike 2022 Aqua/Carbon

Season:2023

Brand:Trek

Code:52608

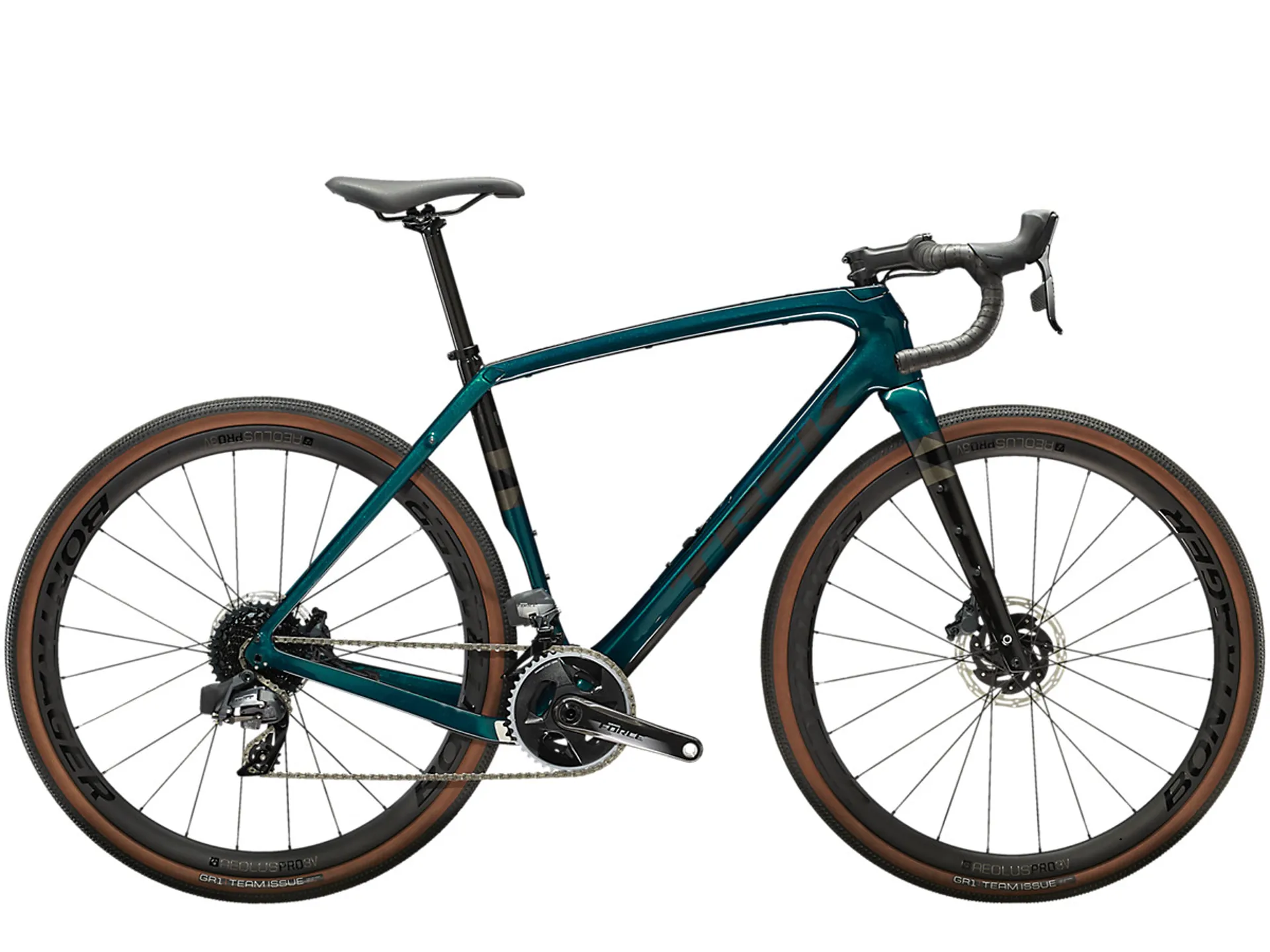

The Trek Checkpoint SL7 eTap Gravel Bike pairs a light OCLV Carbon gravel frame with IsoSpeed and high-tech parts picked for performance and incredible ride quality on the toughest and roughest gravel adventures.

A nimble-yet-stable progressive geometry, a smart and smooth SRAM wireless electronic drivetrain, carbon wheels and internal storage give you the comfort and capability you need to tackle your next all-road excursion.

It's right for you if...

You want an adventure-hungry carbon gravel bike that can help you crush the toughest, longest rides. You also want the swift, precise and cable-free shifting of an advanced wireless electronic drivetrain, and carbon wheels for extra comfort on rough terrain.

The tech you get

A 500 Series OCLV Carbon frame with damped Rear IsoSpeed and carbon armour, a progressive geometry that's stable at speed and efficient when you're grinding up a climb, internal storage, hidden cables that won't interfere with bags, integrated frame bag mounts and rack and mudguard mounts. Plus, a carbon fork, 2x12 SRAM Force eTap AXS wireless electronic drivetrain with a wide-range cassette and Bontrager Aeolus Pro 3V OCLV Carbon wheels with wide 700x40c gravel tyres that provide extra traction and stability. You can even run a dropper post to get low on long descents. Fits up to 45 c tyres.

The final word

This bike is built to stand up to the most gruelling gravel races and burliest all-road bikepacking adventures. It's light, fast, comfortable and fitted with pro-level parts, like an advanced wireless electronic drivetrain and carbon wheels.

Why you'll love it

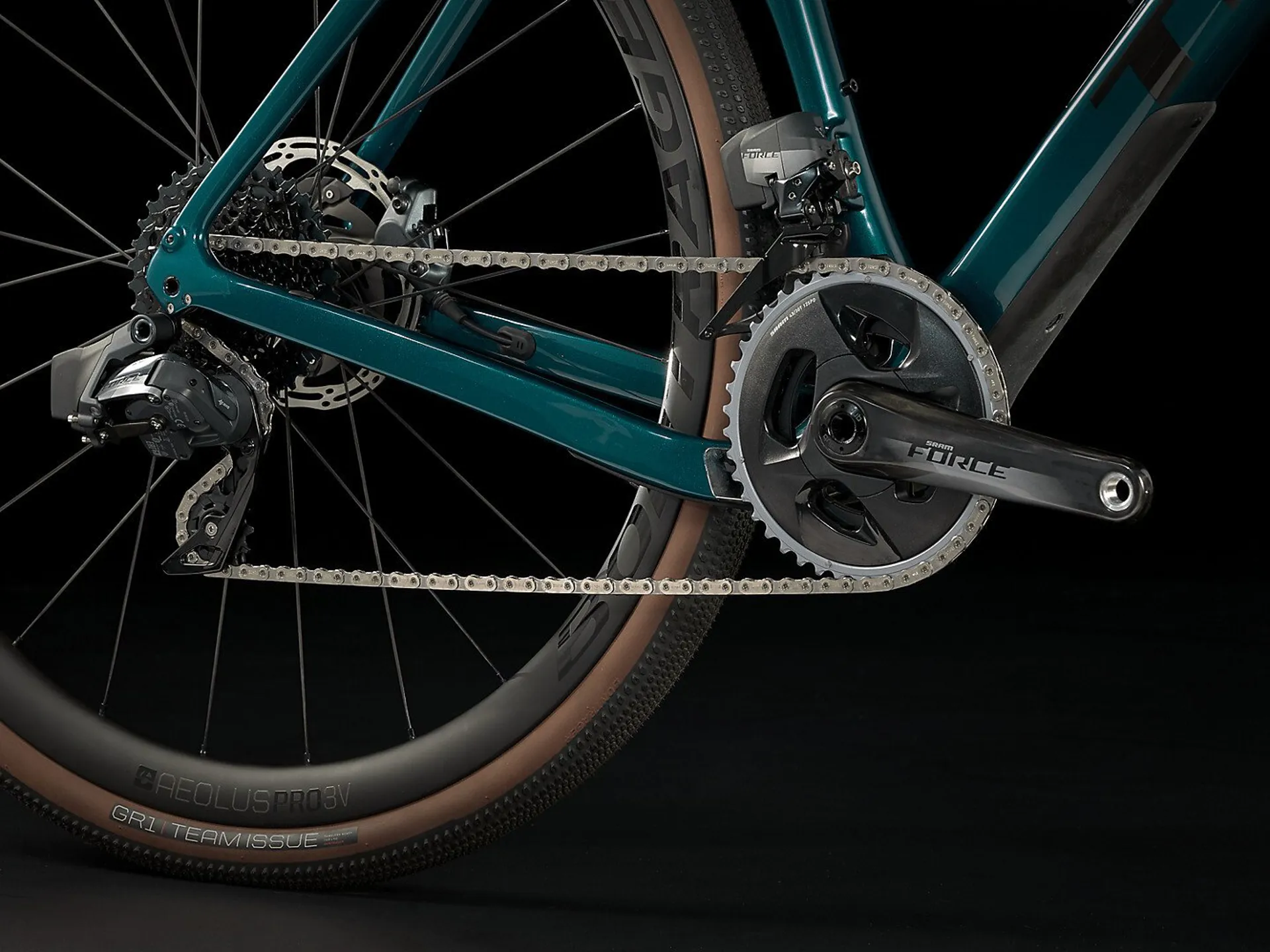

  1. The SRAM Force eTap AXS drivetrain is smart, smooth and completely wireless
  2. The damped, controlled rebound of the IsoSpeed decoupler soaks up fatiguing bumps without bouncing you around
  3. All-new progressive geometry is quick and nimble yet keeps you stable and in control on fast, choppy descents

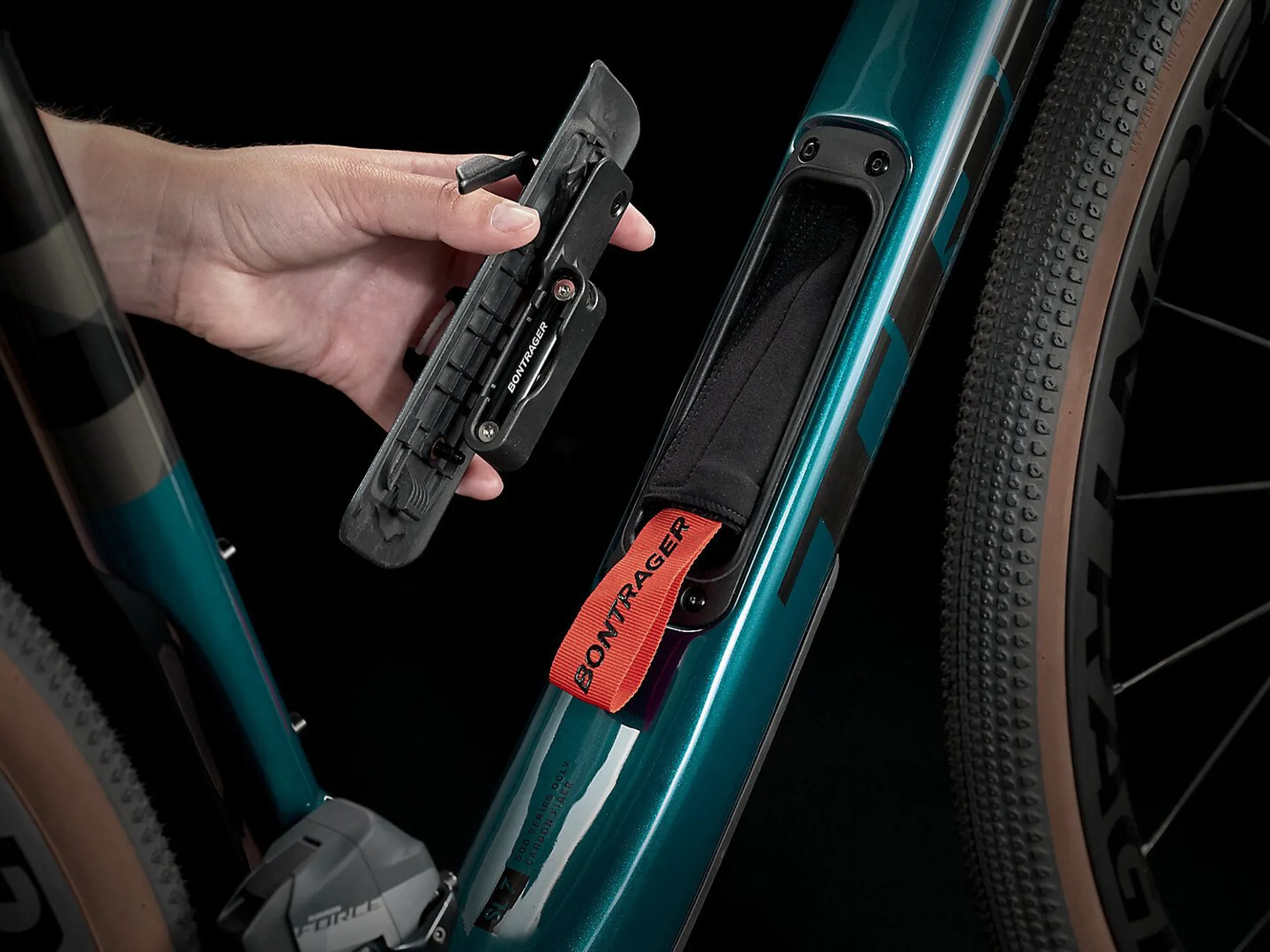

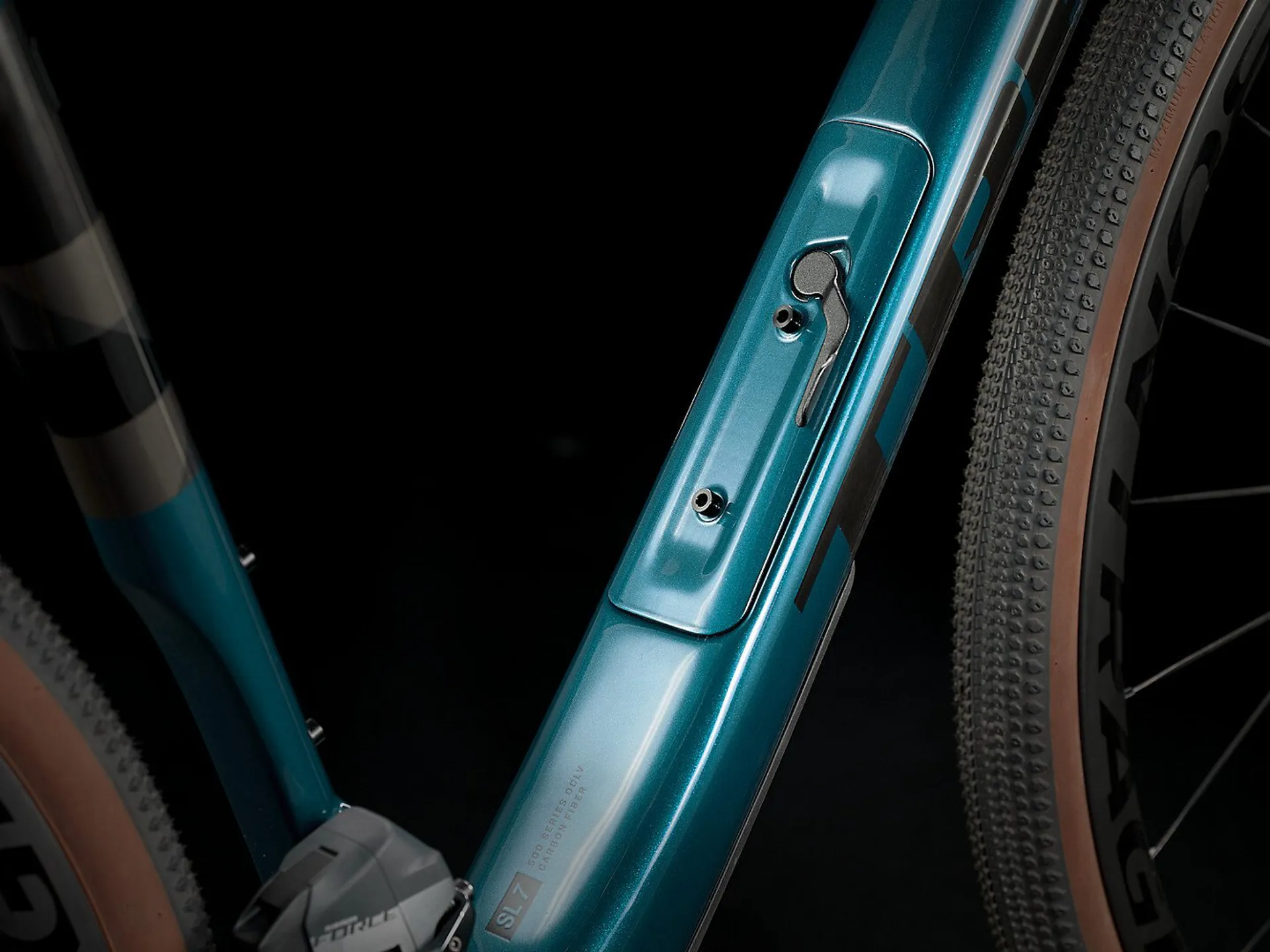

  4. A sleek internal storage compartment gives you a versatile spot to stow tools and gear

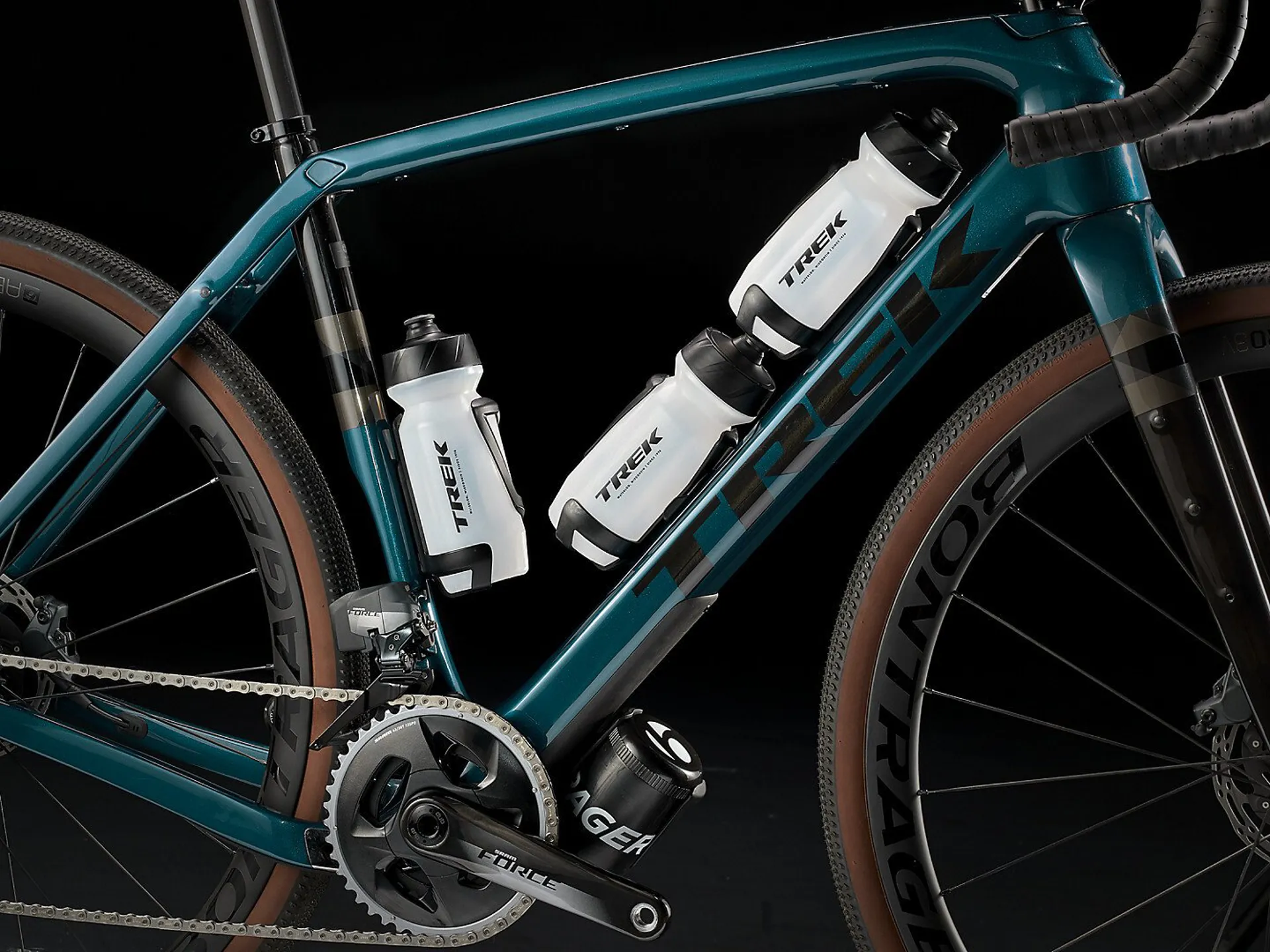

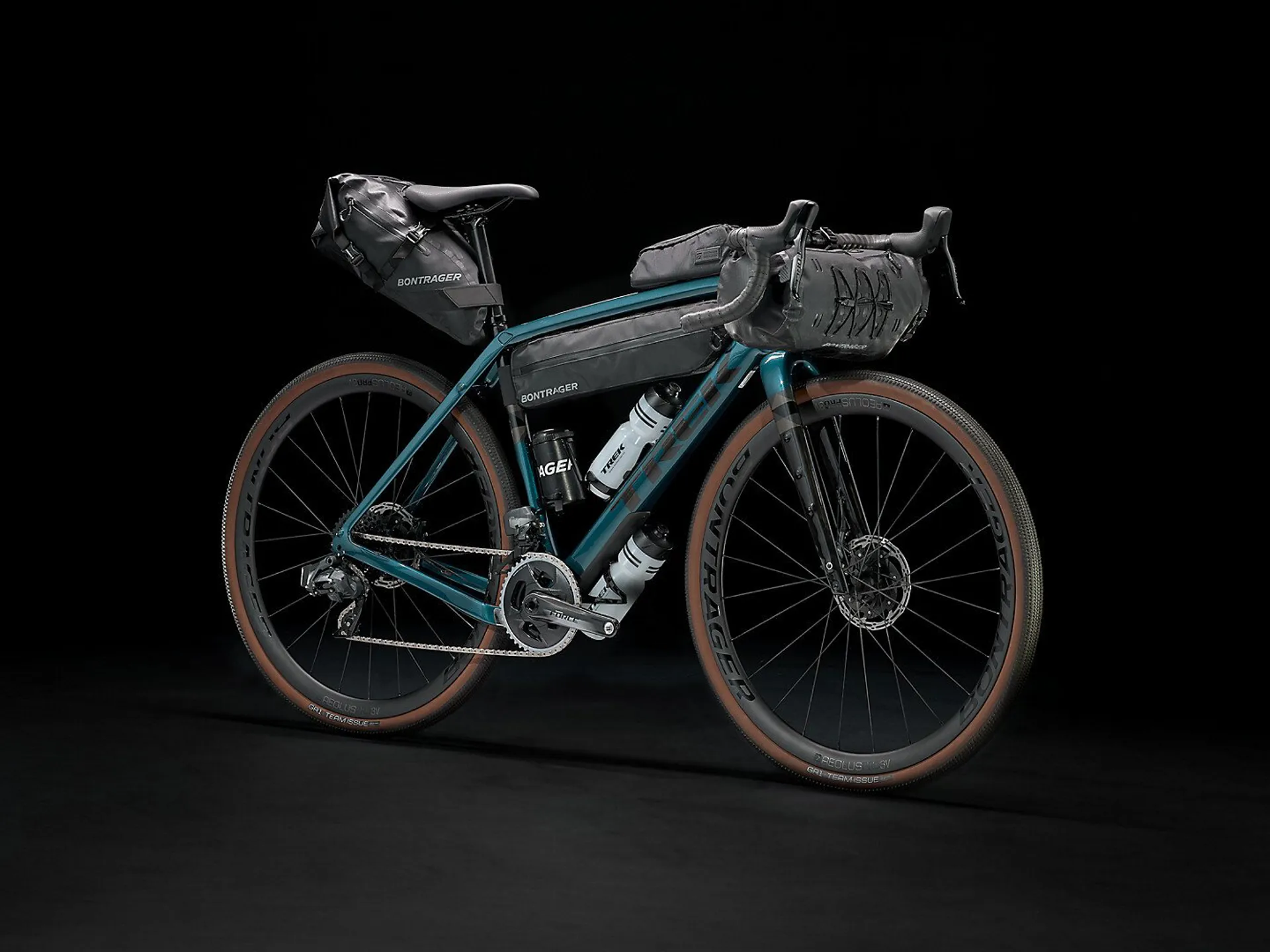

  5. Integrated frame bag mounts and rack and mudguard mounts make it easy to carry gear and water
Technical Information
Frameset

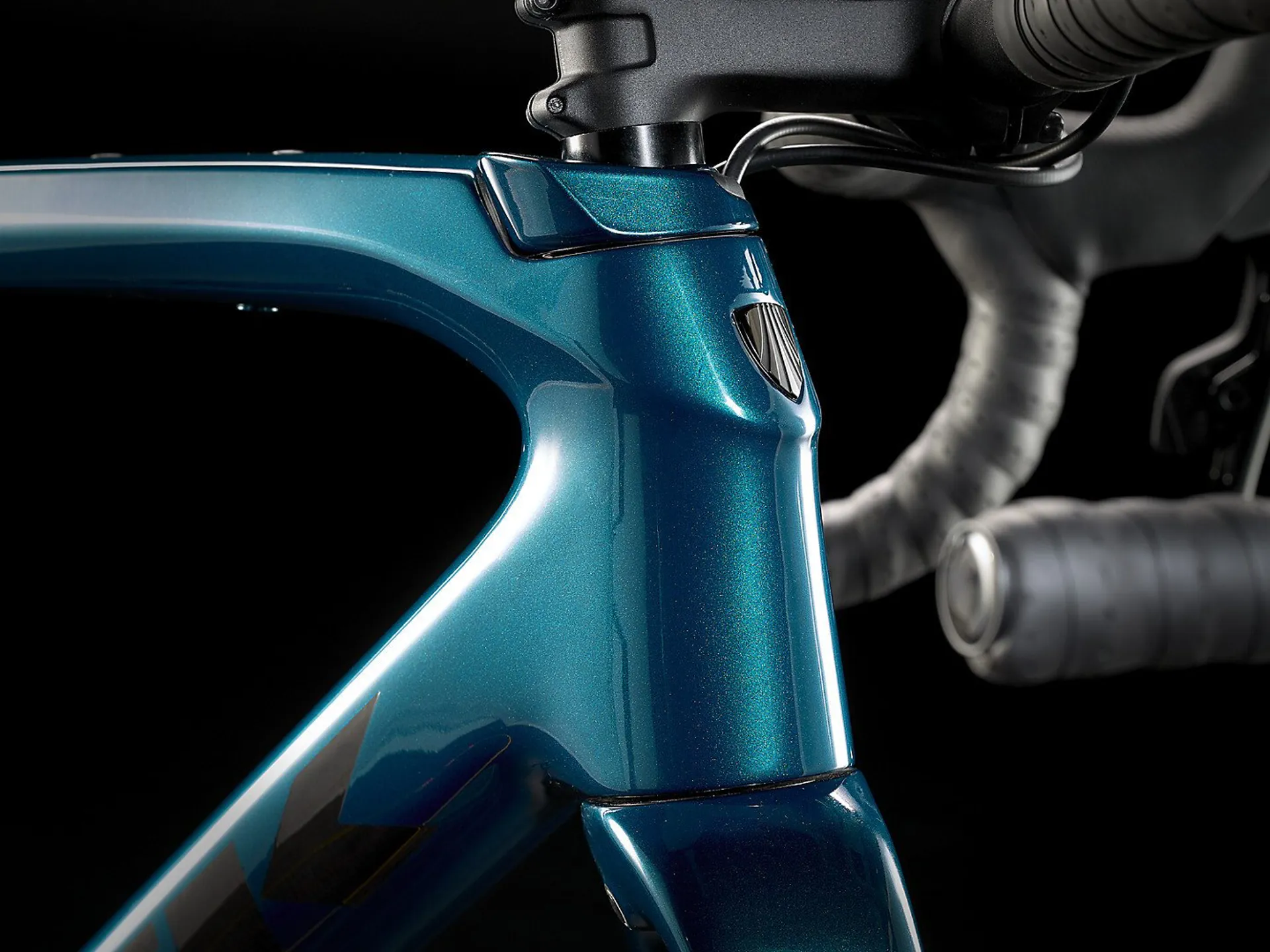

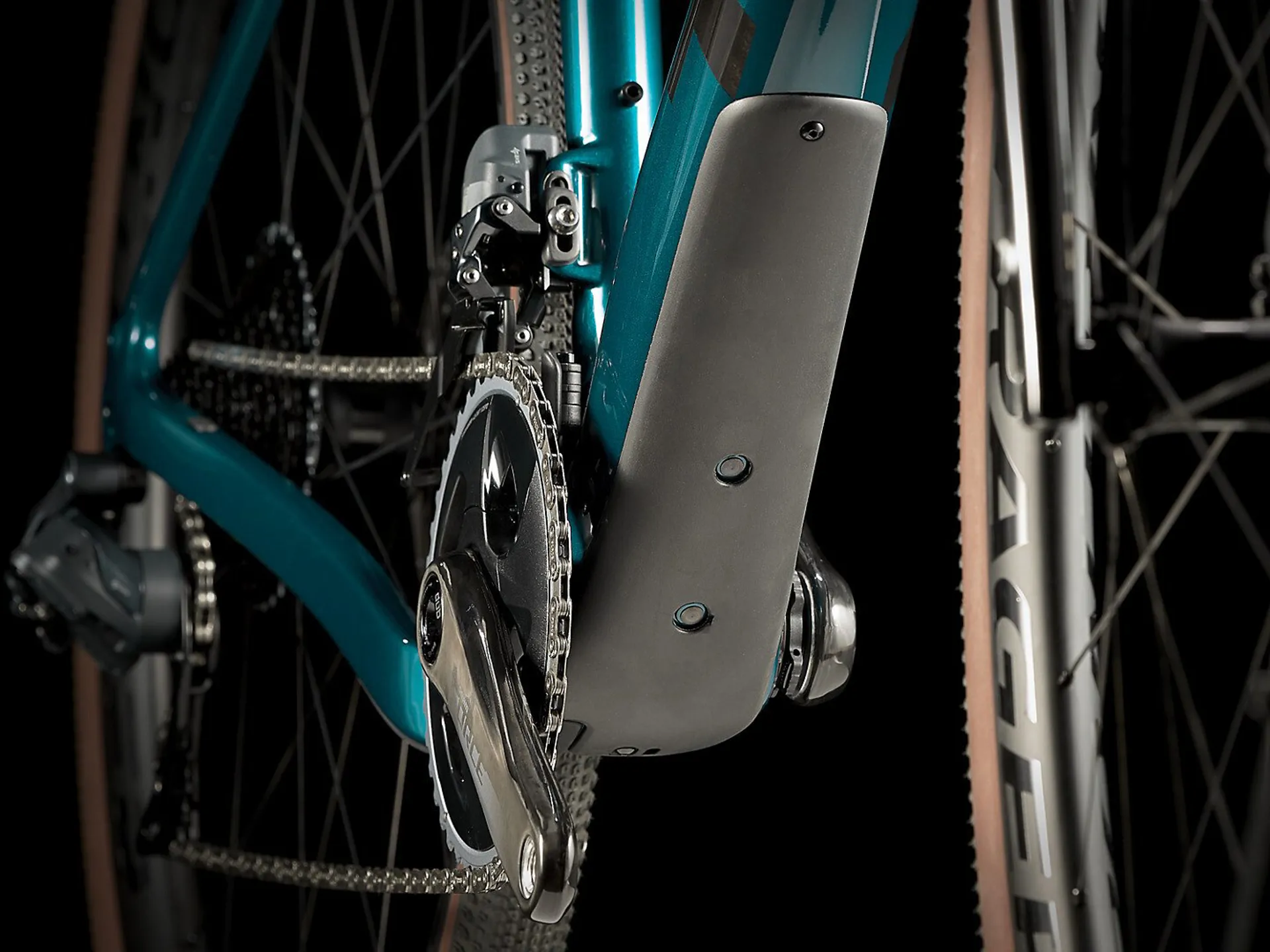

Frame500 Series OCLV Carbon, IsoSpeed, internal cable routing, downtube storage door, 3S chain keeper, T47 BB, rack and mudguard mounts, integrated frame bag mounts, flat-mount disc, dropper post compatible, 142x12 mm thru axle

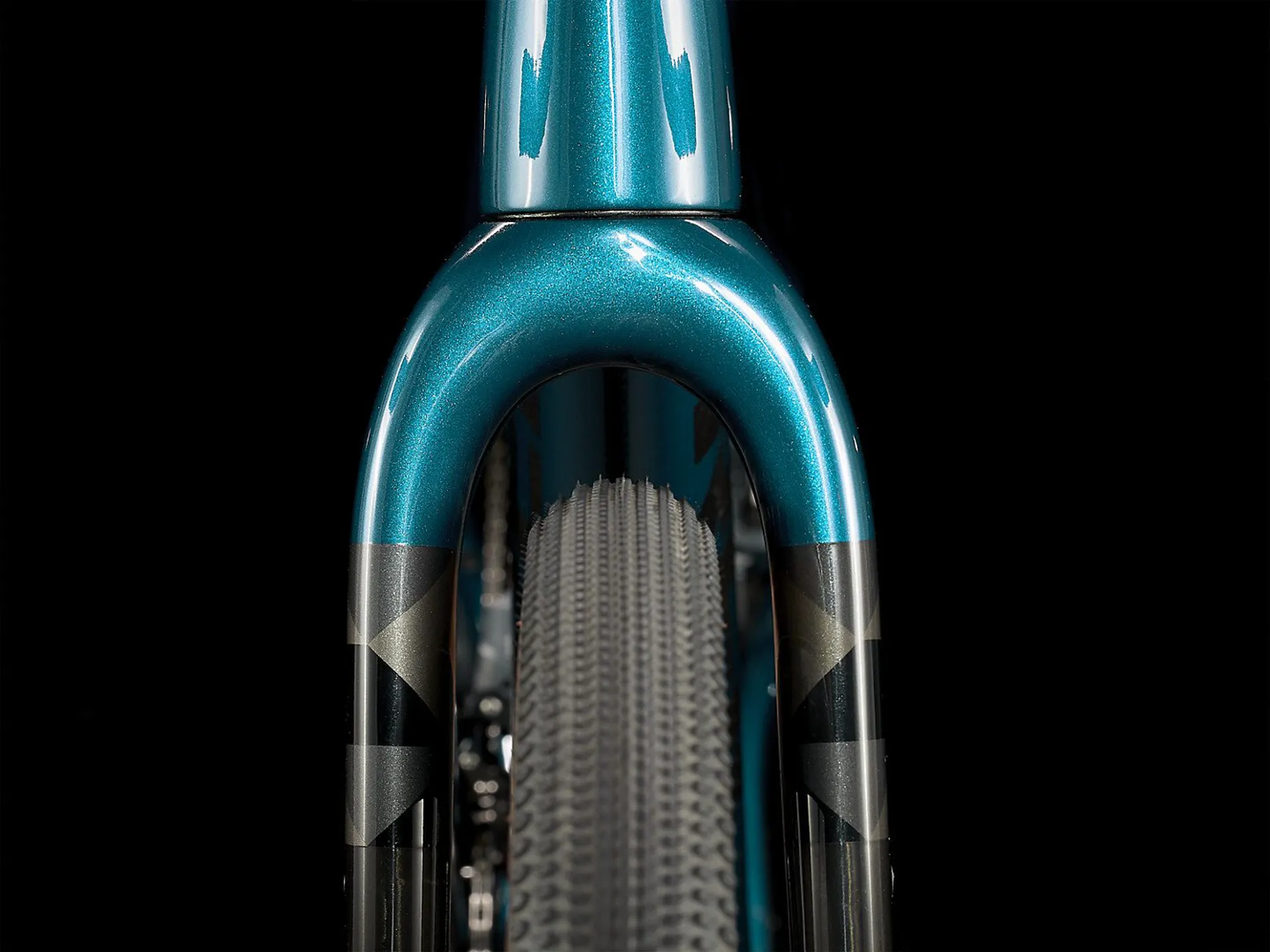

ForkTrek Checkpoint, full carbon, tapered carbon steerer, rack mounts, mudguard mounts, flat-mount disc, 12x100 mm thru-axle
Wheels
Wheel frontBontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle
Wheel rearBontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25 mm rim width, SRAM XD-R driver, 142x12 mm thru axle
Skewer frontBontrager Switch thru axle, removable lever
Skewer rearBontrager Switch thru-axle, removable lever
TyreBontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40 c
*Tyre partSize: 49, 52, 54, 56, 58, 61
Bontrager TLR sealant, 180 ml/6 oz
Size: 49, 52, 54, 56, 58, 61
Bontrager XXX TLR valve, 55 mm
Rim stripBontrager TLR
Drivetrain
Front derailleurSRAM Force eTap AXS, wide, braze-on
Rear derailleurSRAM Force eTap AXS, 36T max cog
*CrankSize: 49
SRAM Force, 43/30, DUB Wide, 165 mm length
Size: 52
SRAM Force, 43/30, DUB Wide, 170 mm length
Size: 54, 56
SRAM Force, 43/30, DUB Wide, 172.5 mm length
Size: 58, 61
SRAM Force, 43/30, DUB Wide, 175 mm length
Bottom bracketSRAM DUB, T47 threaded, internal bearing
Components
*SaddleSize: 49, 52
Bontrager P3 Verse Comp, steel rails, 155 mm width
Size: 54, 56, 58, 61
Bontrager P3 Verse Comp, steel rails, 145 mm width
SeatpostBontrager carbon, 27.2 mm, 8 mm offset, 330 mm length

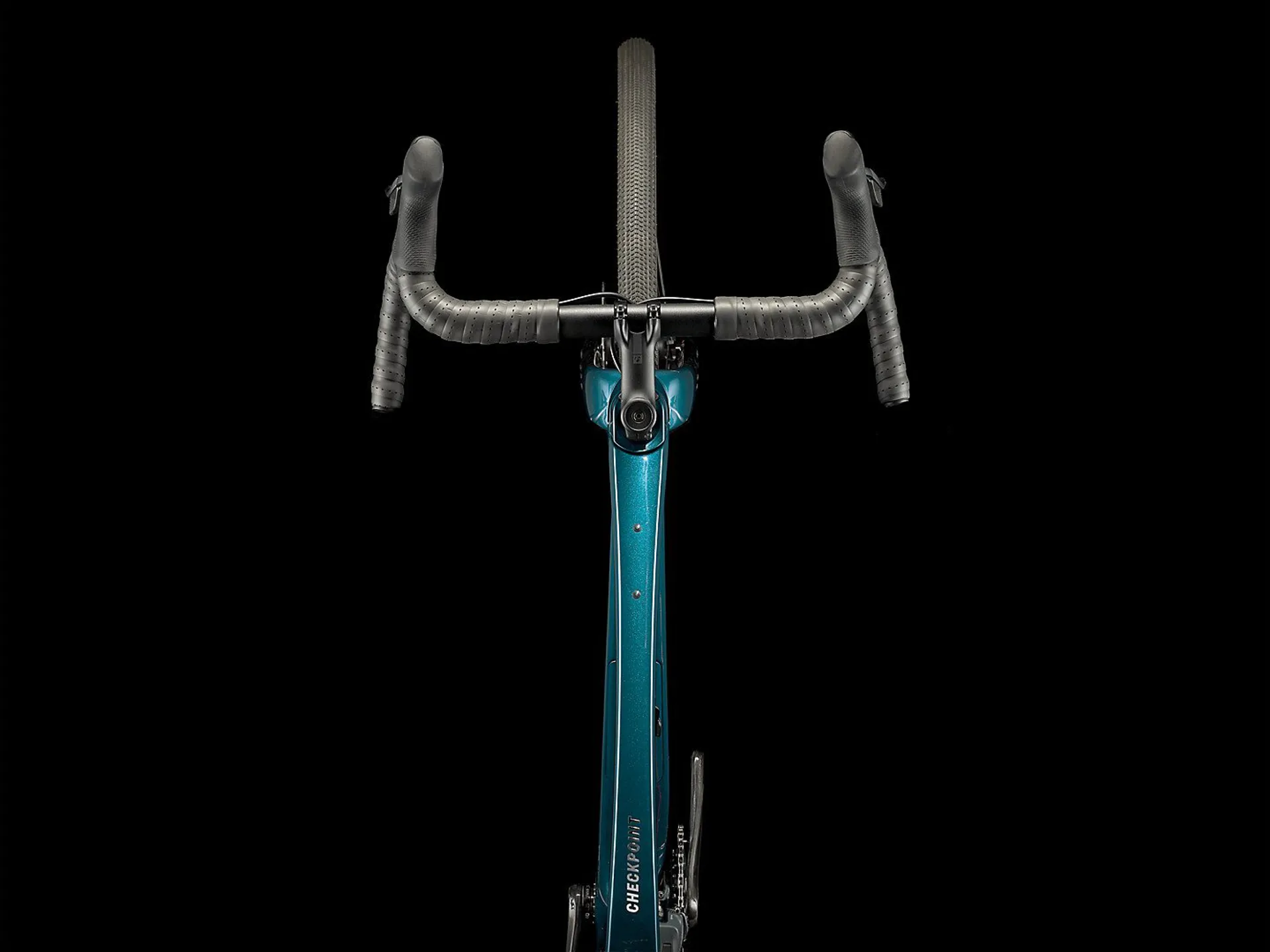

*HandlebarSize: 49
Bontrager Elite Gravel, 38 cm width
Size: 52
Bontrager Elite Gravel, 40 cm width
Size: 54, 56
Bontrager Elite Gravel, 42 cm width
Size: 58, 61
Bontrager Elite Gravel, 44 cm width
Handlebar tapeBontrager Supertack Perf tape
*StemSize: 49
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size: 52, 54
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size: 56, 58
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Size: 61
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Brake rotorSRAM CenterLine X, CenterLock, round edge, 160 mm
Accessories
BagBontrager BITS Internal Frame Storage Bag
Weight
Weight56 - 19.62 lbs / 8.9 kg
Weight limitThis bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).

Geometry

Frame size numberWheel sizeA —Seat tubeB —Seat tube angleC —Head tube lengthD —Head angleE —Effective top tubeG —Bottom bracket dropH —Chainstay lengthI —OffsetJ —TrailK —WheelbaseL —StandoverM —Frame reachN —Frame stack
49 cm700c49.074.1°9.071.2°54.17.843.54.57.4102.573.539.353.8
52 cm700c52.073.7°10.571.6°55.57.843.54.57.1103.376.539.955.3
54 cm700c54.073.2°12.571.8°57.07.643.54.57.0104.178.940.357.1
56 cm700c56.072.8°14.572.2°58.47.643.54.56.7104.880.940.759.2
58 cm700c58.072.5°16.572.3°59.77.443.54.56.6105.882.941.160.9
61 cm700c61.072.1°19.572.6°61.77.443.54.56.5107.085.941.763.9

Sizing Information

Trek Men's Bike Sizing Guide

We have put together a general sizing guide for Trek road and mountain bikes. Please see the below for a general size and check out the Trek Bikes Sizing Guide for all bike model guides and how to measure yourself.

Trek Men's Road Bike Sizing Guide

Rider Height: cm 151 153 155 157 159 161 163 165 167 169 171 173 175 177 179 181 183 185 187 189 191 193 195 197 199 201 203
in" 59.5 60 61 62 62.5 63.5 64 65 66 66.5 67.5 68 69 69.5 70.5 71.5 72 73 74 74.5 75 76 77 77.5 78.5 79 80
  44 cm
        47 cm
                  50 cm
                            52 cm
                                      54 cm
                                                  56 cm
                                                              58 cm
                                                                        60 cm
                                                                                  62 cm
                                                                                            64 cm

Trek Men's Mountain Bike Sizing Guide

Rider Height: cm 148 150 152 154 156 158 160 162 164 166 168 170 172 174 176 178 180 182 184 186 188 190 192 194 196 198
in" 58 59 60 60.5 61.5 62 63 64 64.5 65.5 66 67 68 68.5 69.5 70 71 71.5 72.5 73 74 75 75.5 76.5 77 78
  13.5 in
              15.5 in
                              17.5 in
                                                18.5 in
                                                              19.5 in
                                                                                21.5 in
                                                                                                      23 in

Trek Men's Commute Bike Sizing Guide

Rider Height: cm 148 150 152 154 156 158 160 162 164 166 168 170 172 174 176 178 180 182 184 186 188 190 192 194 196 198 200 202 204
  13 in
                15 in
                                    17.5 in
                                                        20 in
                                                                              22.5 in
                                                                                                    25 in
