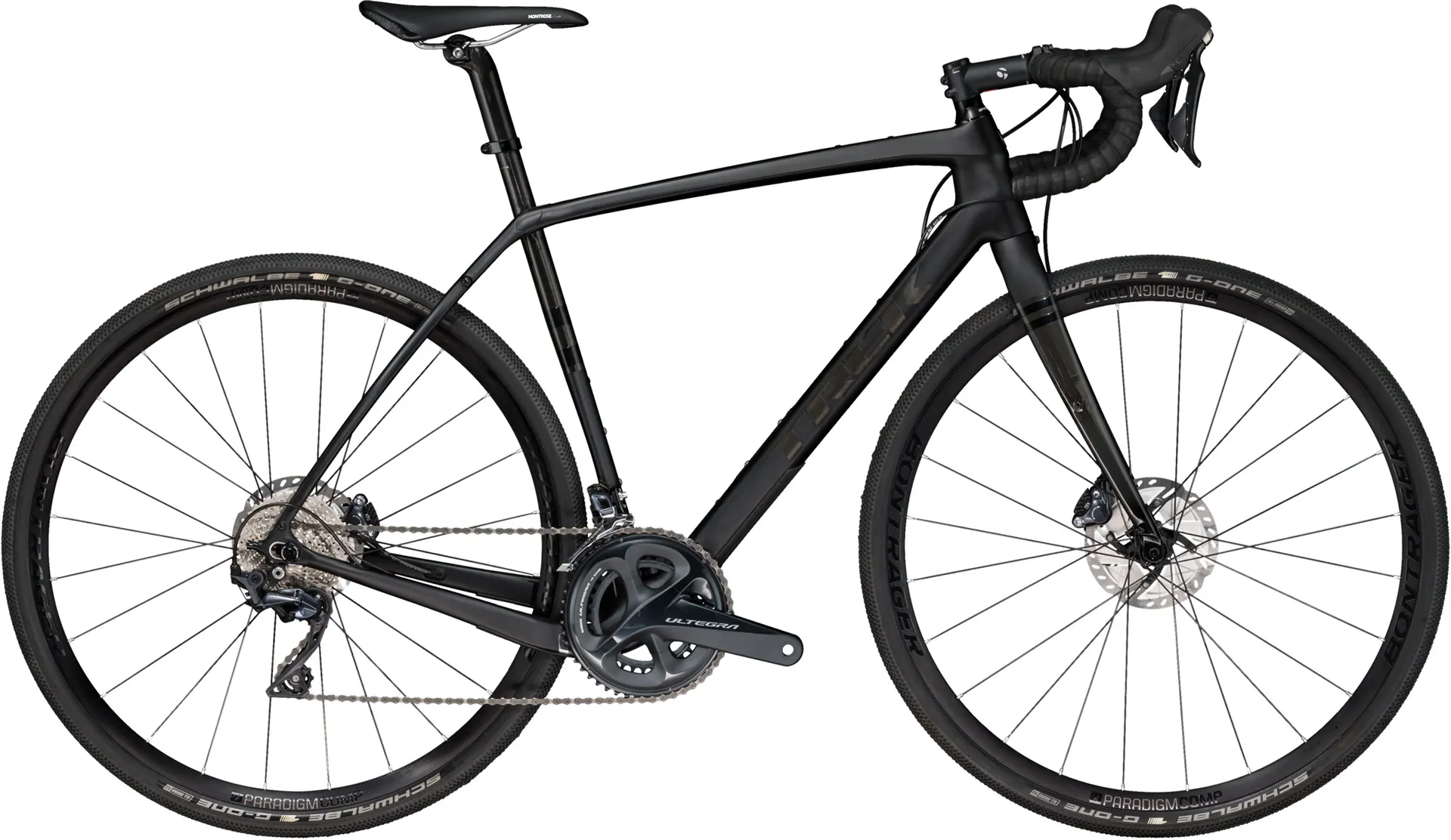

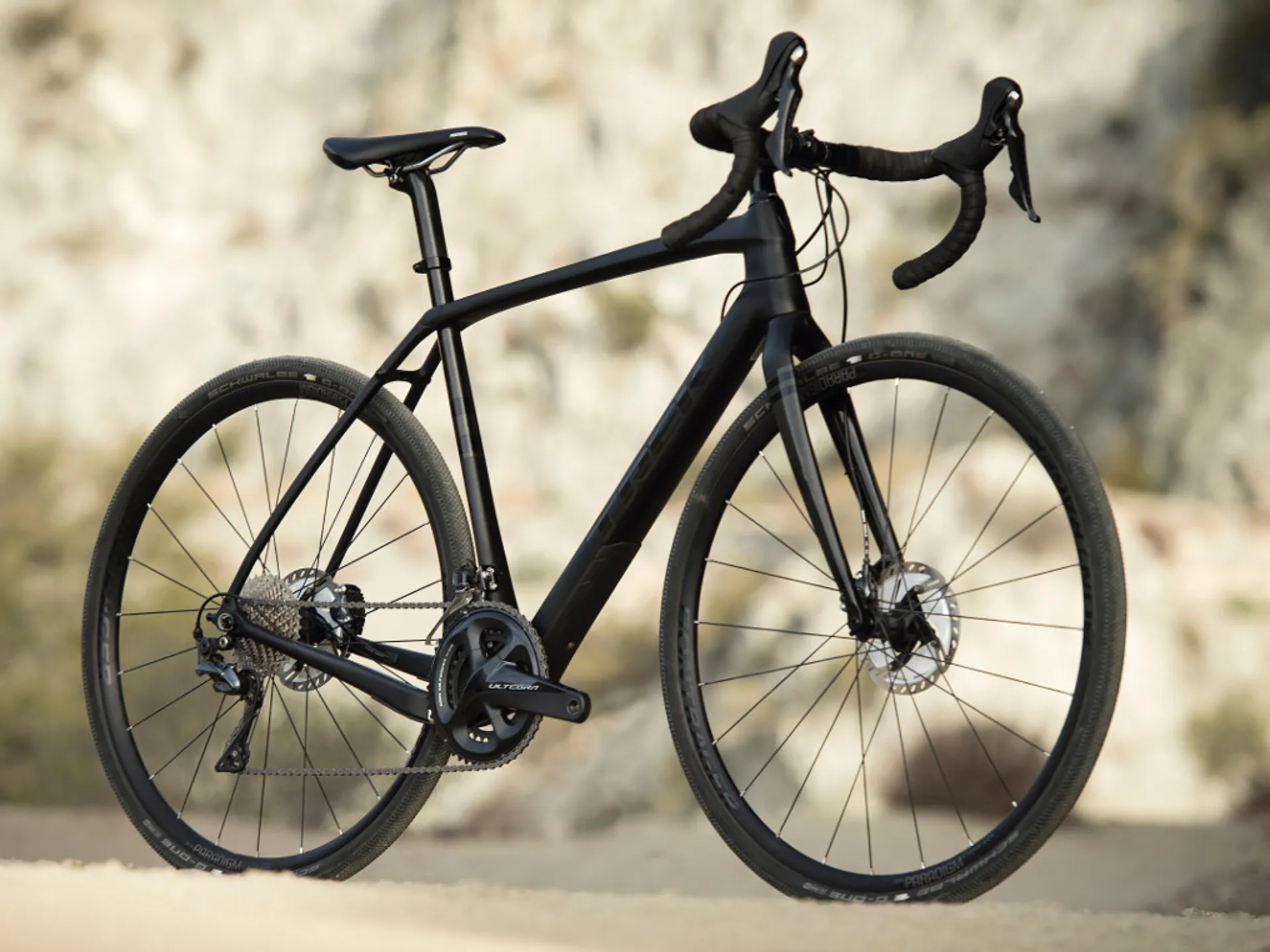

Trek Checkpoint SL 6 Gravel Bike 2019 Matte Black

Season:2019

Brand:Trek

Code:5628-MBLK

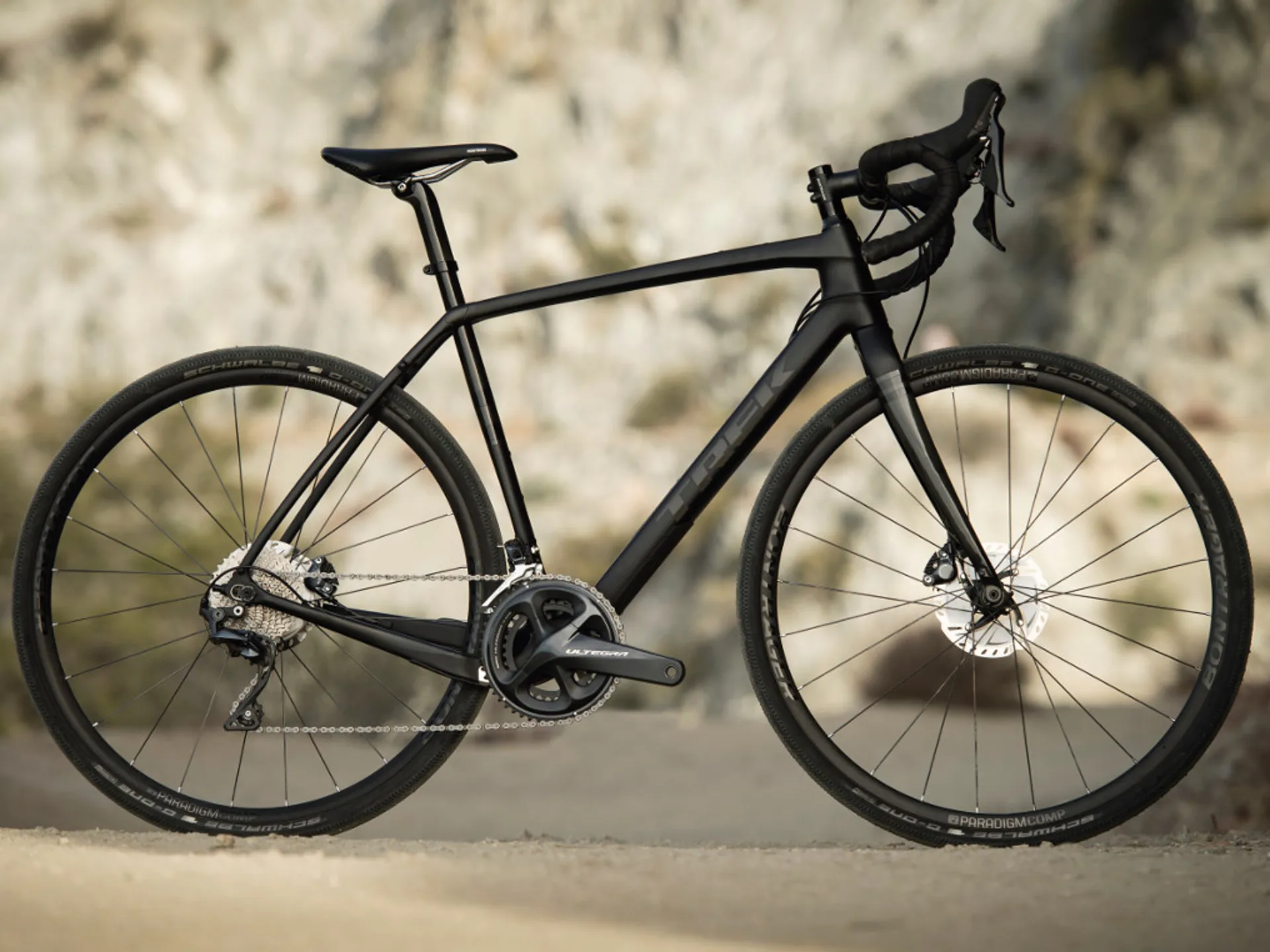

The 2019 Trek Checkpoint SL 6 is a carbon gravel bike without limits. It's designed to take you to places you'd never reach on a standard road bike - like the mud-caked finish line of the world's greatest gravel races. A light-weight OCLV Carbon frame with gravel-smoothing IsoSpeed, a full Shimano Ultegra drivetrain and extra mounts for gear and accessories make the Checkpoint SL 6 a true gravel powerhouse and the best choice for serious all-road adventurers.

Geometry for the Checkpoint is comfortable for the long haul and rough roads, but aggressive enough to provide the speed and ride-feel gravel riders are looking for. With a slightly taller stack and lower bottom bracket when compared to a CX bike, the Trek Checkpoint delivers improved stability while maintaining fast and manoeuverable characteristics. Control Freak internal cable routing allows for easy conversion to 1x or electronic shifting and keeps everything protected from the inevitable mud-and-dirt. Complete with a carbon seatmast cap, Carbon Armour for additional protection against debris, and 12mm front and rear thru-axles.

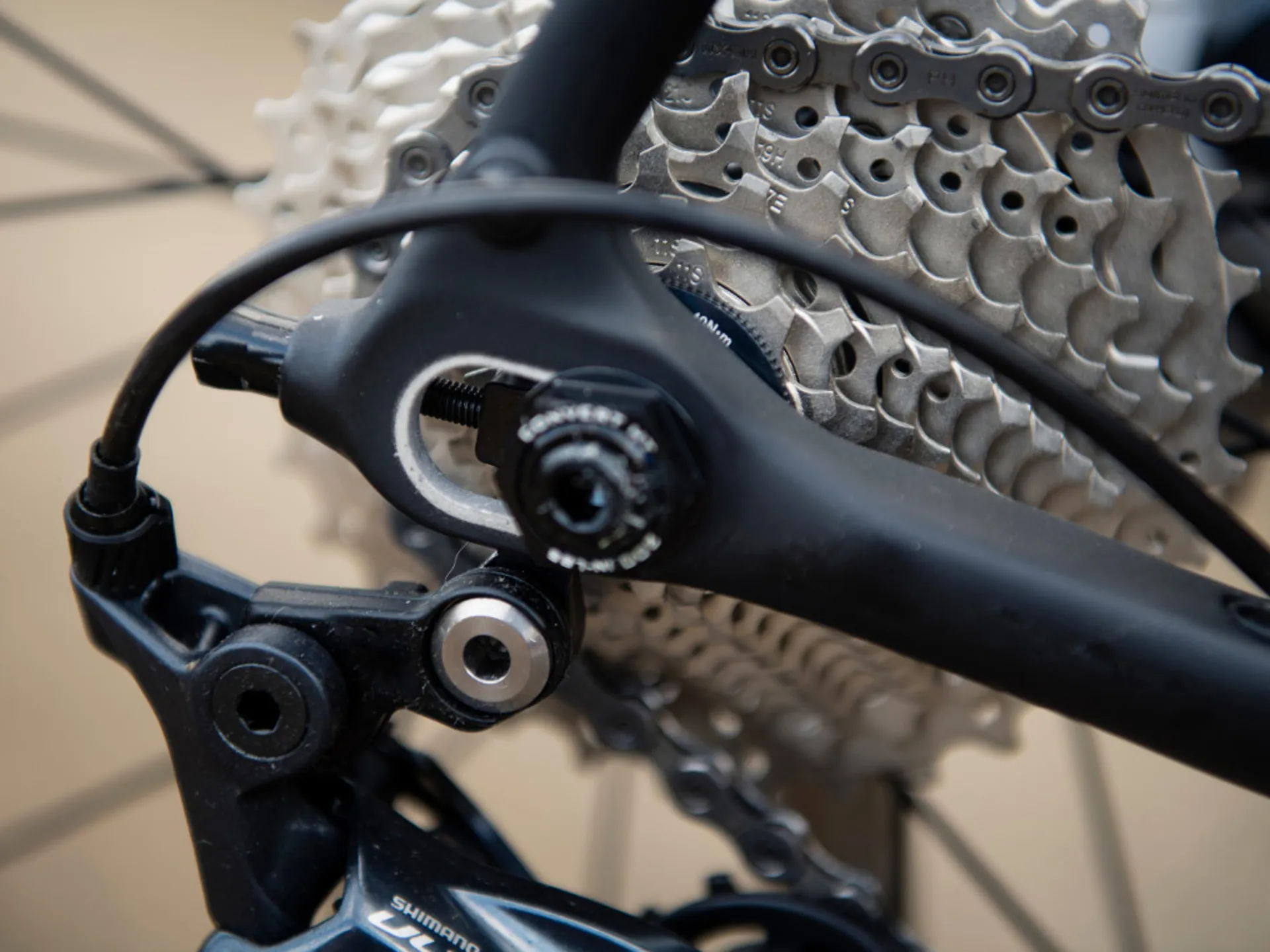

Stranglehold dropouts allow the rider to adjust the bike's geometry and gearing based on the requirements of the ride ahead. The longest setting makes the bike more stable for longer rides and bikepacking. The dropouts also allow for quick & easy conversion to singlespeed. Stock 35mm tyres hit the sweet-spot for a wide range of terrain, but the Checkpoint can accept up to 45mm, allowing you to tackle rut-ridden roads with confidence. Alternatively a move down to 28mm slicks transforms the ride to a firm, fast-rolling ride for gravel to tarmac routes.

The Trek Checkpoint is covered in mounts, on the seat-tube and down-tube allow riders to fit three bottles in the main triangle, or position two bottles low while leaving room for a frame bag. There's also room for one more bottle under the down-tube. Lowrider fork mounts will take a rack & bags. Rear rack mounts give more room for cargo, and hidden fender mounts keep the ride clean in even the worst weather. The Trek Checkpoint SL also comes with a top-tube mount to easily attach an easy-to-each bag for ride essentials.

Trek Checkpoint SL 6 2019 Features

  • The IsoSpeed decoupler cuts down on fatiguing bumps in gravel so you can wander more, reach new places and stay stronger for longer
  • This bike is exceedingly versatile and suited to a wide variety of riding styles, including gravel rides, bikepacking and daily commutes
  • Extra mounts on the top tube, seat tube and both sides of the down tube make it easy to carry extra gear and water
  • Massive tyre clearance means you can use tyres up to 45c for extra traction and stability in any condition

2019 Checkpoint SL 6 Build Highlights

  • 500 Series OCLV Carbon frame with rear IsoSpeed Decoupler
  • Checkpoint Carbon Disc fork
  • Shimano Ultegra 11-speed (50/34t - 11-34t)
  • Bontrager Paradigm Comp Disc tubeless ready wheelset
  • Shimano Ultegra hydraulic disc brakes
  • Bontrager finishing kit

500-Series OCLV

500 Series OCLV acheives a superb balance of light-weight, strength, and stiffness that's perfectly suited to the sophisticated frame technologies that distinguish Trek frames.

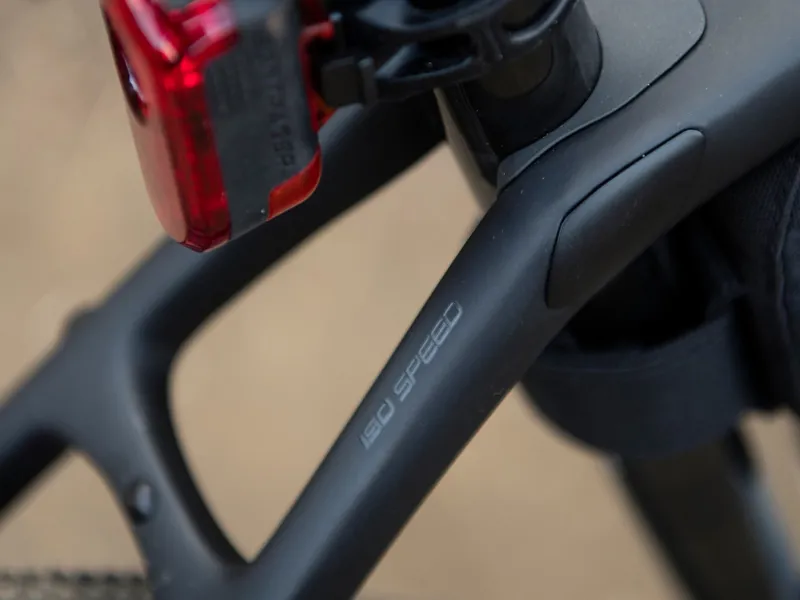

IsoSpeed Decoupler

The core of Trek's endurance comfort technology is the IsoSpeed decoupler. IsoSpeed maintains the diamond-shaped frameset geometry but decouples the seat tube from the top tube, allowing the seat tube to flex with the forces of the road. The result is a ride that moves with the road while maintaining the feel and efficiency of the traditional race bike design. IsoSpeed diminishes the fatiguing impacts of the road, allowing the rider to remain fresher for longer.

Technical Information
Frameset
Frame 500 Series OCLV Carbon, Rear IsoSpeed, Stranglehold dropouts, tapered head tube, BB90, flat-mount disc brakes, rack mounts and hidden mudguard mounts, Control Freak, internal control routing, 12 mm thru axle, 3S chain keeper, Ride Tuned seatmast

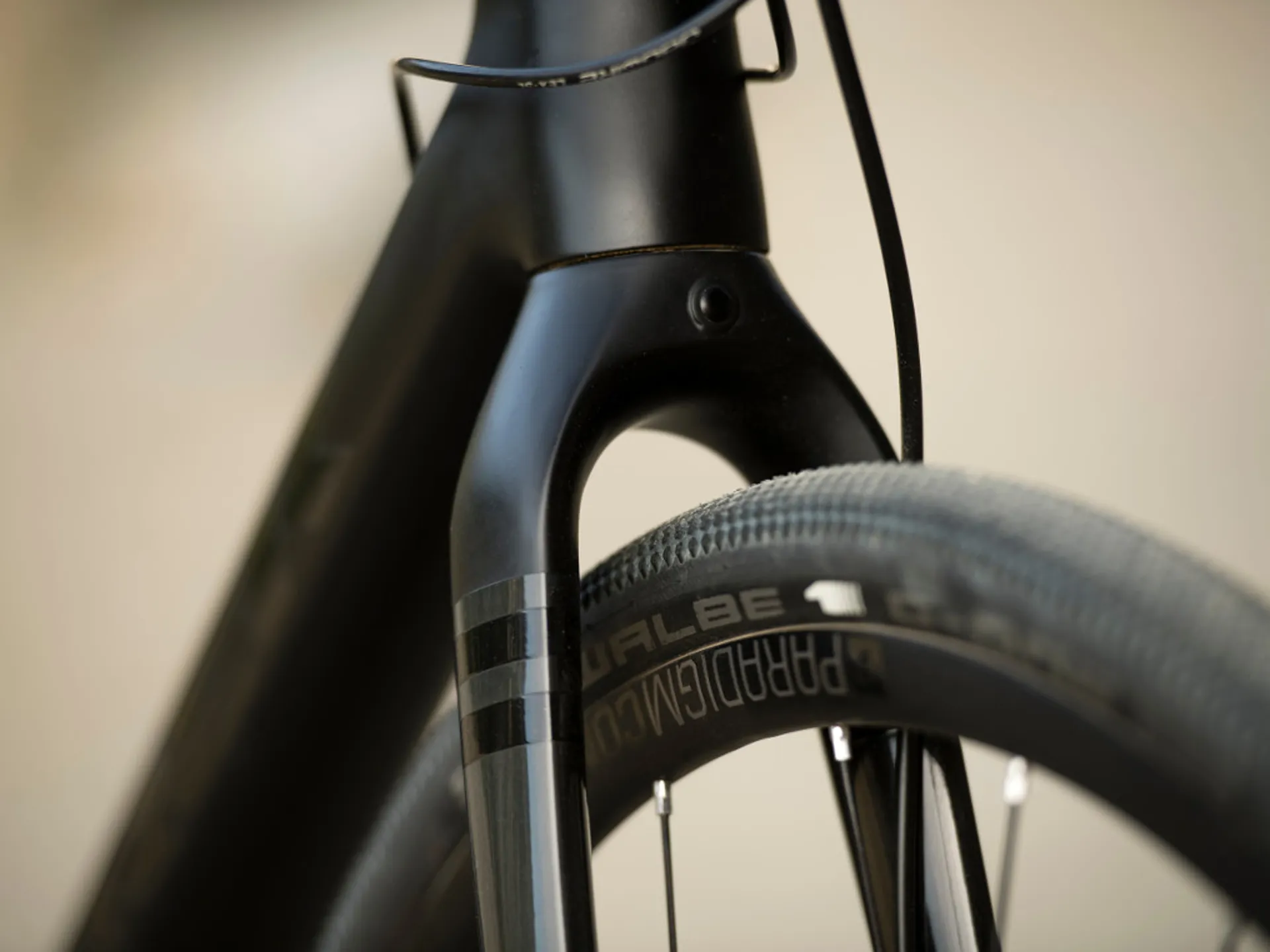

Fork Checkpoint carbon disc, carbon tapered steerer, flat-mount disc brakes, rack mounts, hidden mudguard mounts, 12 mm thru axle
Wheels

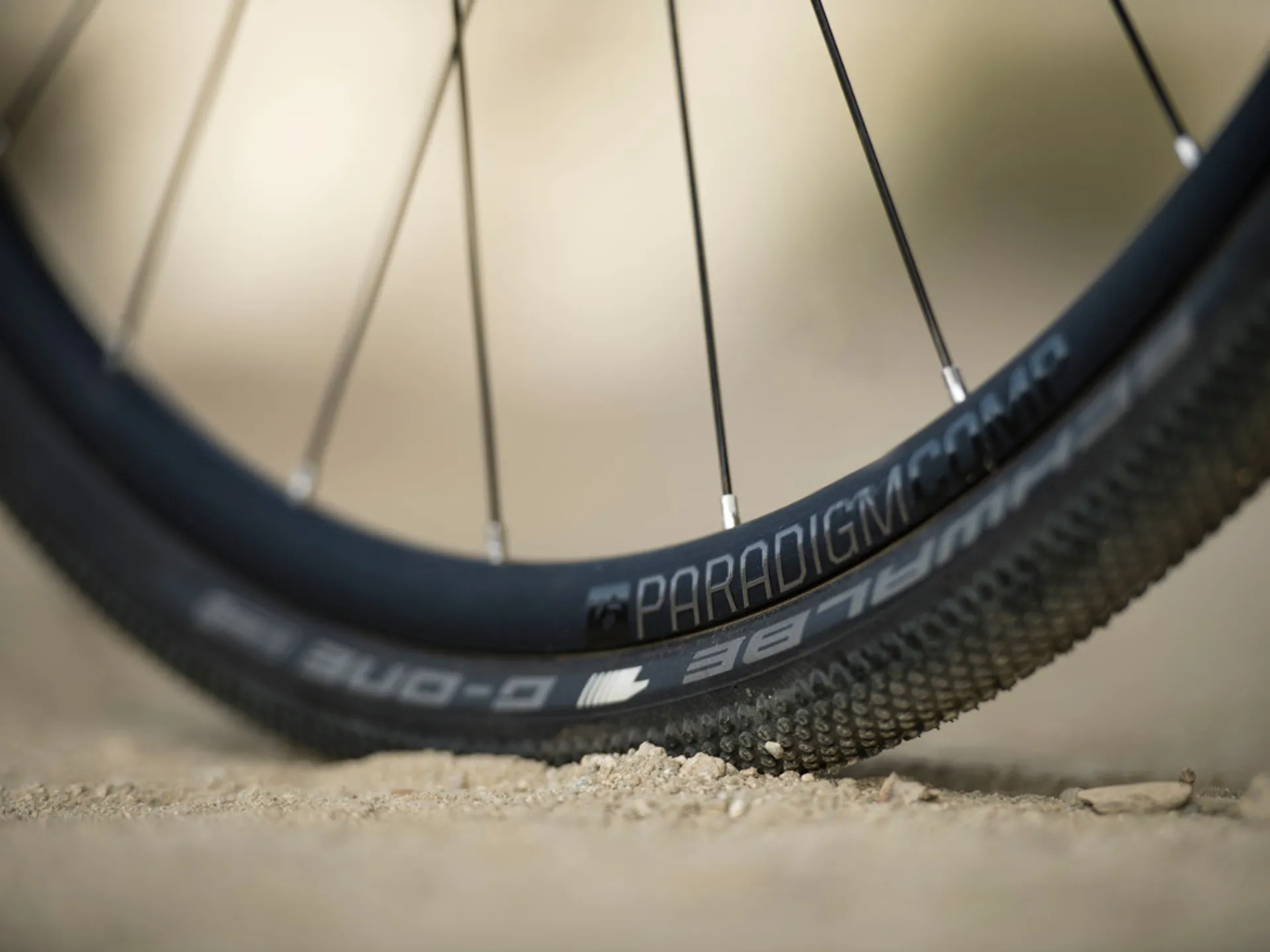

Wheels Bontrager Paradigm Comp Tubeless Ready Disc, 12 mm thru axle
Tires Schwalbe G-One Allround, aramid bead, TL Easy, 700 c 35 c
Drivetrain
Shifters Shimano Ultegra, 11-speed
Front derailleur Shimano Ultegra, braze-on

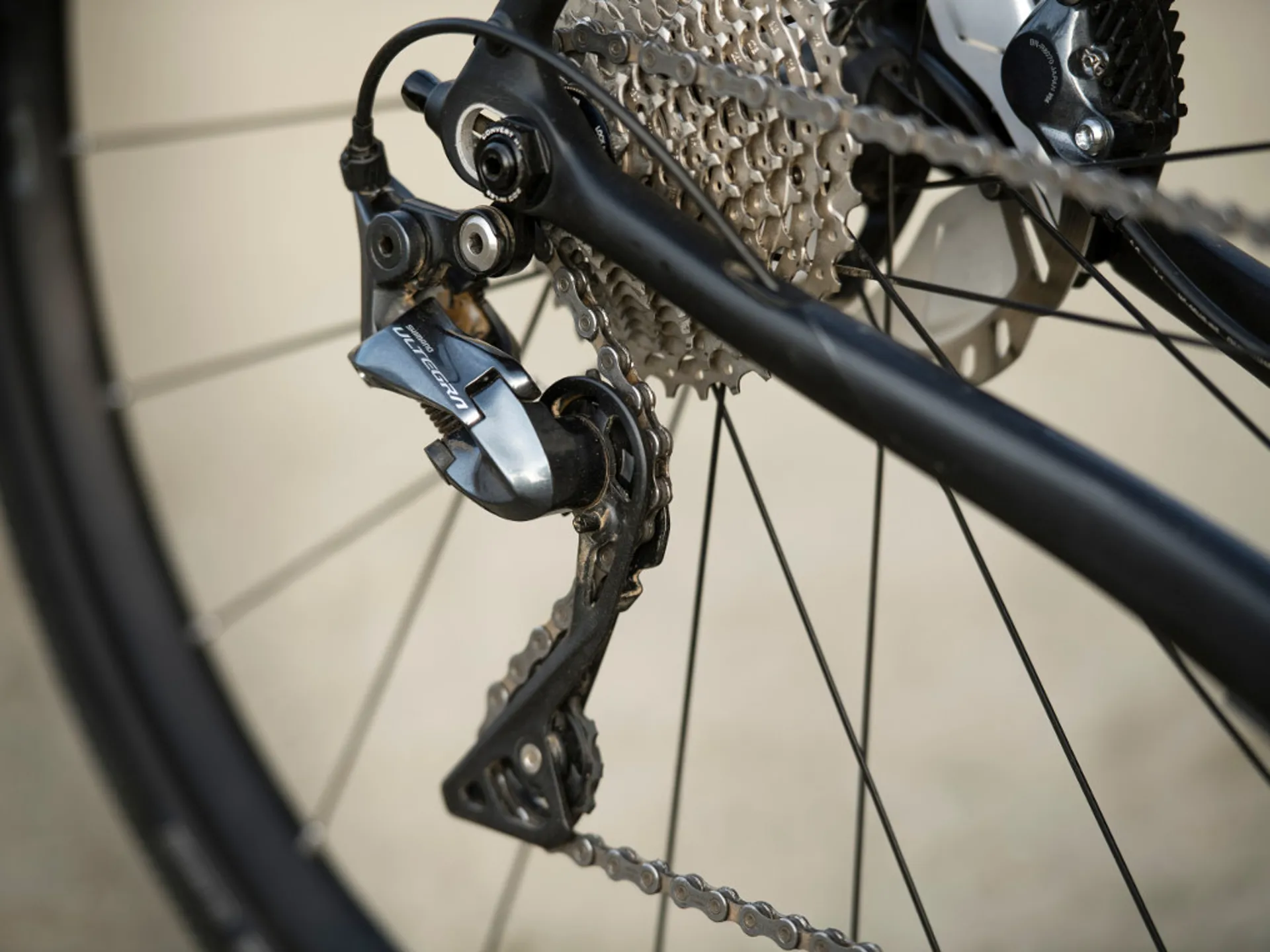

Rear derailleur Shimano Ultegra, Shadow design, 11-speed

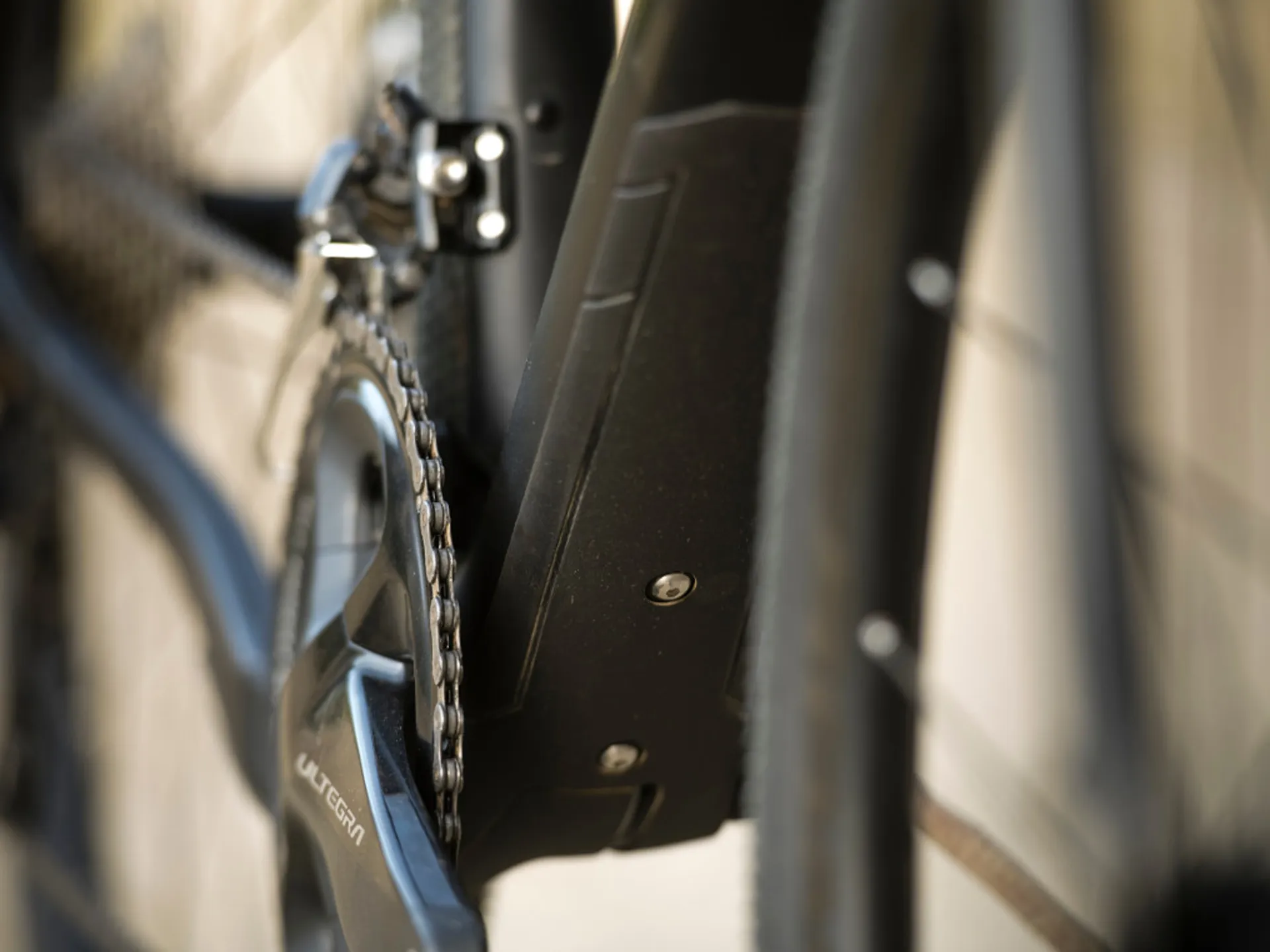

Crank Shimano Ultegra, 50/34 (compact)
Bottom bracket BB90
Cassette Shimano HG800, 11-34, 11-speed
Chain Shimano HG600, 11-speed
Components
Saddle Bontrager Montrose Comp
Seatpost Bontrager Ride Tuned carbon seatmast cap, 20 mm offset
Handlebar Bontrager RL IsoZone VR-CF, 31.8 mm
Stem Bontrager Elite, 31.8 mm, 7-degree, w/computer and light mounts
Grips Bontrager tape

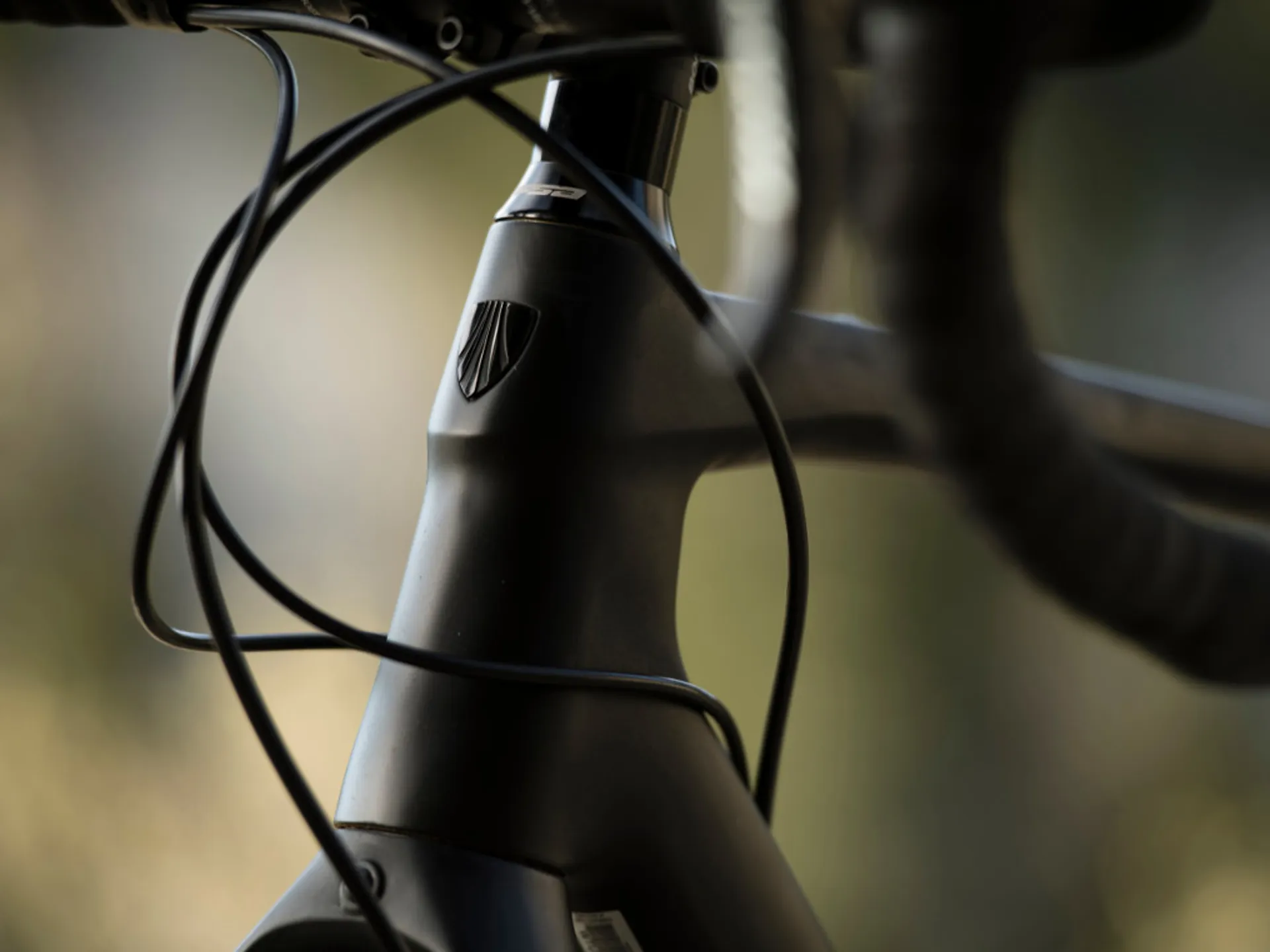

Headset Integrated, cartridge bearing, sealed, 1-1/8˝ top, 1.5˝ bottom

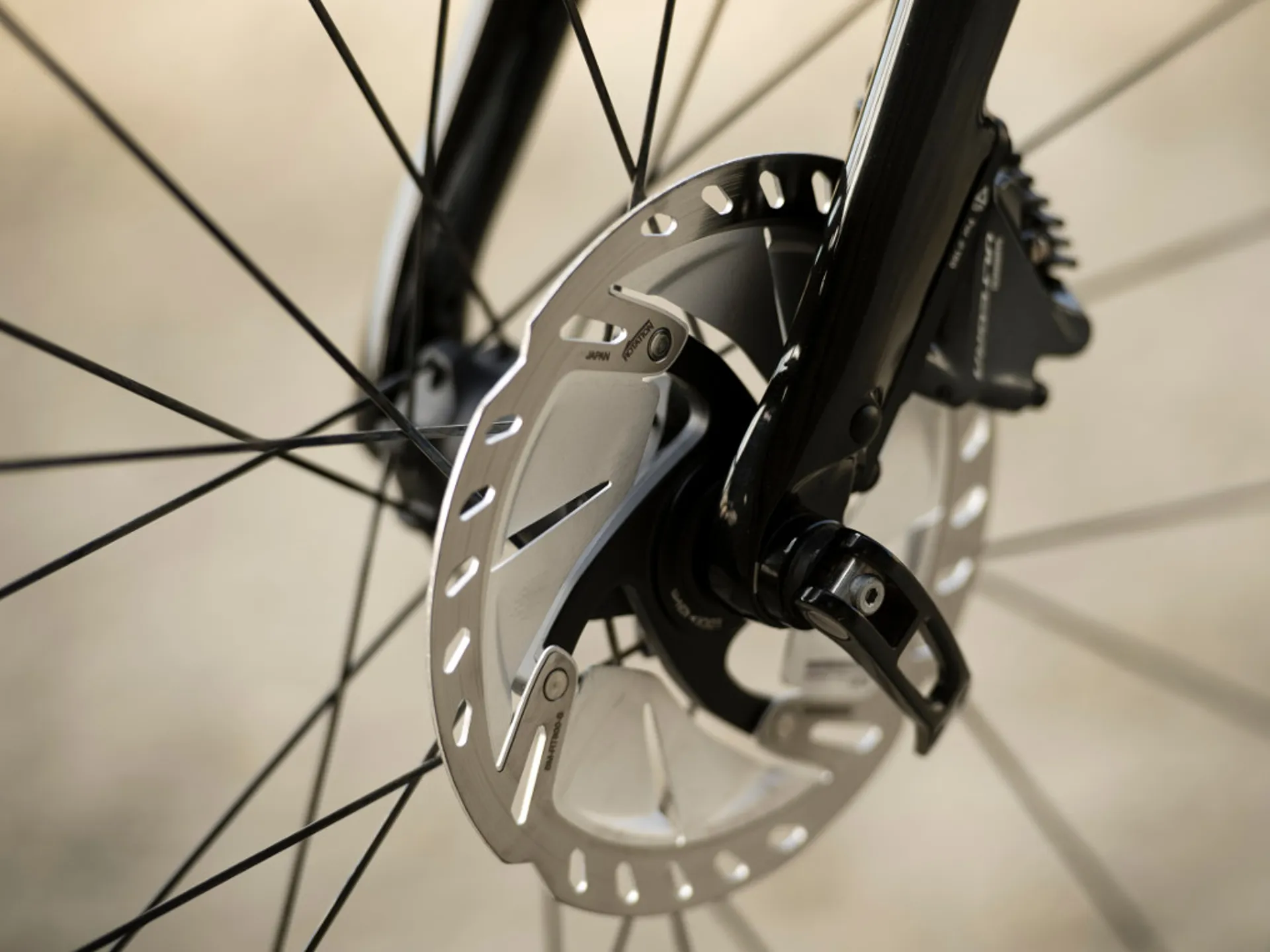

Brakeset Shimano Ultegra flat mount hydraulic disc



Sizing Information

Trek Checkpoint Sizing Guide

Please view the information below to find your perfect fit for the Checkpoint. Check out the Trek Bikes Sizing Guide for all bike model sizing guides and tips on how to measure yourself.

  49 52 54 56 58 61
Rider Height (cm) 158.0 - 163.0 cm 162.0 - 168.0 cm 167.0 - 174.0 cm 173.0 - 180.0 cm 179.0 - 186.0 cm 184.0 - 191.0 cm
Rider Height 5'2.2" - 5'4.2" 5'3.8 - 5'6.1" 5'5.7 - 5'8.5" 5'8.1" - 5'10.9" 5'10.5" - 6'1.2" 6'0.4" - 6'3.2"

Trek Checkpoint Geometry

Frame size number Wheel size ASeat tube BSeat tube angle CHead tube length DHead angle EEffective top tube GBottom bracket drop HChainstay length IOffset JTrail KWheelbase LStandover MFrame reach NFrame stack Saddle rail height minimum Saddle rail height maximum
49 cm 700c 49 75.0° 9 71.4° 51.5 7.8 42.5 4.9 6.6 99.5 72.3 37.3 53.2 57.5 66.5
52 cm 700c 52 74.0° 10.7 71.6° 53.6 7.8 42.5 4.9 6.5 100.5 74.9 37.9 54.9 61 70
54 cm 700c 54 73.5° 12.6 71.8° 55.1 7.6 42.5 4.9 6.4 101.4 77.5 38.3 56.7 64 73
56 cm 700c 56 73.0° 14.5 72.2° 56.6 7.6 42.5 4.9 6.1 102 79.5 38.7 58.6 67 76
58 cm 700c 58 73.0° 17.1 72.3° 57.7 7.4 42.5 4.9 6.1 103.2 81.7 39.1 60.9 69 78
61 cm 700c 61 73.0° 20 72.6° 59.2 7.4 42.5 4.9 5.9 104.4 84.6 39.7 63.8 72 81
