Trek Supercaliber 9.9 XX1 29er Mountain Bike 2021 Red/Black

Season:2021

Brand:Trek

Code:2084600HD-RD-BK

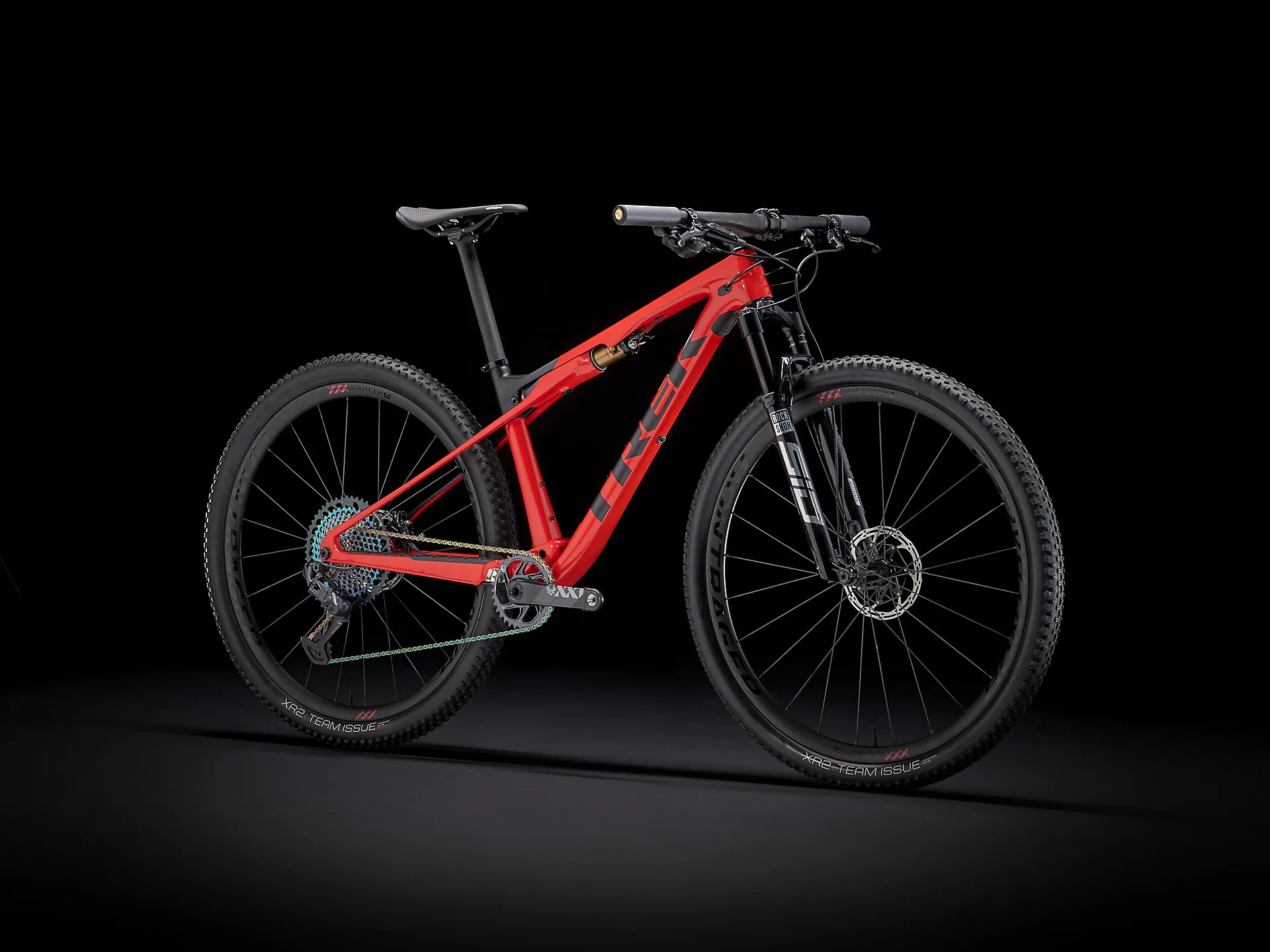

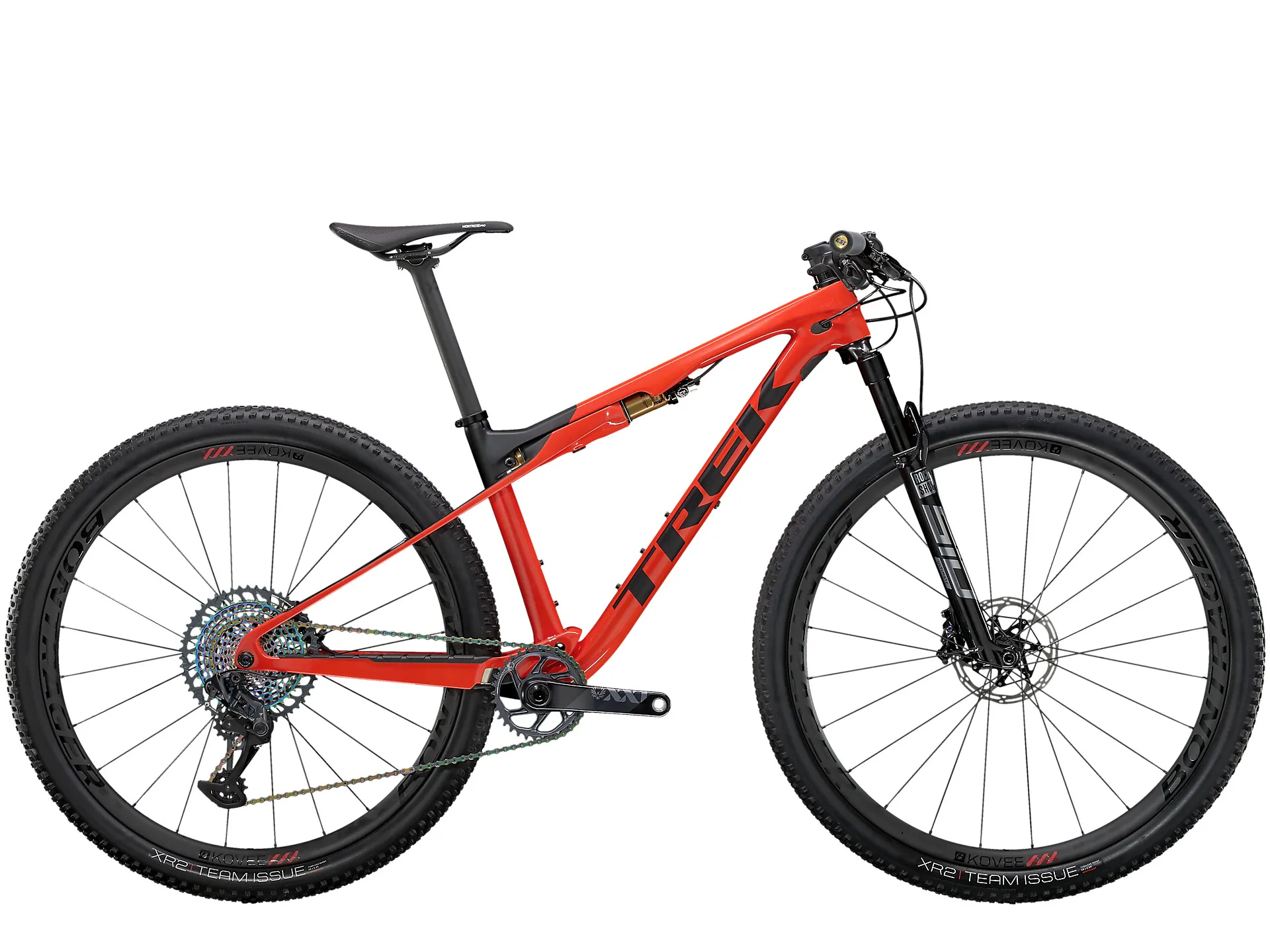

Supercaliber 9.9 is the fastest, lightest and most capable cross-country race bike we make – and that's exactly why it's Trek Factory Racing's World Cup bike of choice.

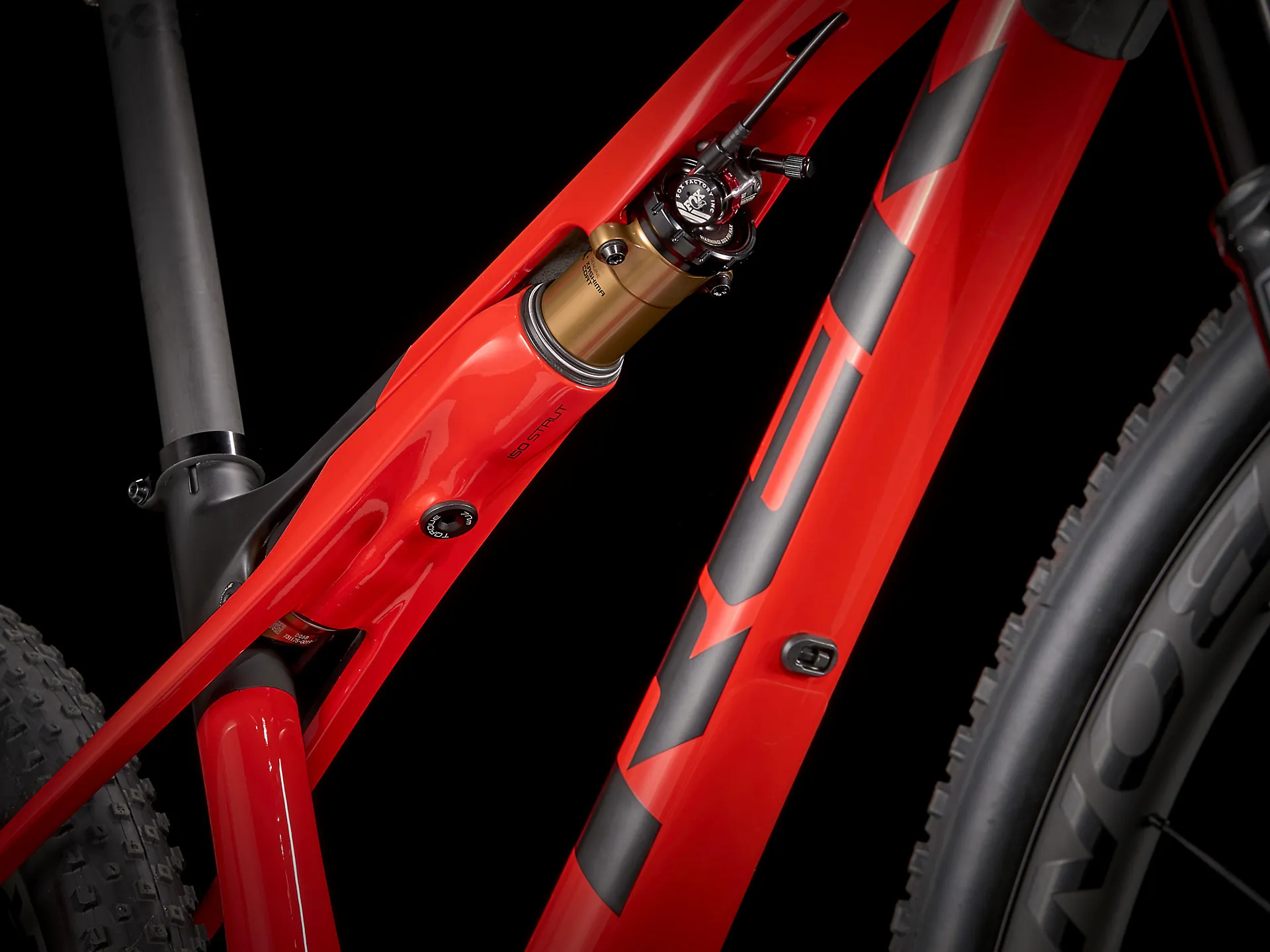

The exclusive IsoStrut top tube shock is the cornerstone of Supercaliber's efficient suspension system, giving you a fast and light ride that charges through rugged terrain at breakneck speed.

It's right for you if...
You're gunning for the top spot and looking for a pro-level cross country racing bike that has top-of-the-line everything. You want a bike that comesspec’d with the best parts and suspension available – plus tons of carbon – for knock-out, drag-out speed and capability.

The tech you get
An ultra-lightweight, full OCLV Mountain Carbon frame with 60 mm of travel, a 100 mm FOX Factory 32 Step-Cast fork with FIT4 damper and Trek's exclusive IsoStrut FOX Factory shock designed specifically for Supercaliber. Plus, a full SRAM XX1 Eagle 1x12 drive train, Bontrager carbon wheels with a 54-tooth DT Swiss rear hub for fast engagement, SRAM Level Ultimate brakes with carbon levers and a Bontrager XXX carbon seat post and handlebar.

The final word
If you don’t podium, sorry, but you can’t blame it on this bike. Its insanely light carbon frame is spec'd for the pros using the most advanced MTB components out there, including our cutting-edge IsoStrut integrated shock. Saddle up and see what you're made of.

Why you'll love it
  1. Supercaliber 9.9 is the ultimate XC race bike, one you'll see taking top spots during the World Cup
  2. Our exclusive IsoStrut shock provides tunable, damped suspension for a smooth and efficient ride
  3. Pivotless seat stays save on weight and actively bend to help soak up trail chatter
  4. TwistLoc simultaneously locks out front and rear shocks for climbs and sprints with the simple Grip Shift-like motion
  5. Wider Kovee XXX 30 wheels provide better tire support so you can run lower pressure and get more traction
Technical Information
FrameOCLV Mountain Carbon main frame and stays, IsoStrut, tapered head tube, Knock Block, Control Freak internal routing, Boost148, 60 mm travel
ForkRockShox SID SL Ultimate, DebonAir spring, Charger Race Day, damper, 44 mm offset, Boost110, 15 mm Maxle Stealth, 100 mm travel
Rear suspensionTrek IsoStrut, Fox Factory shock, air spring, DPS 2-position remote damper, Kashima Coat, 235x32.5 mm
Wheels

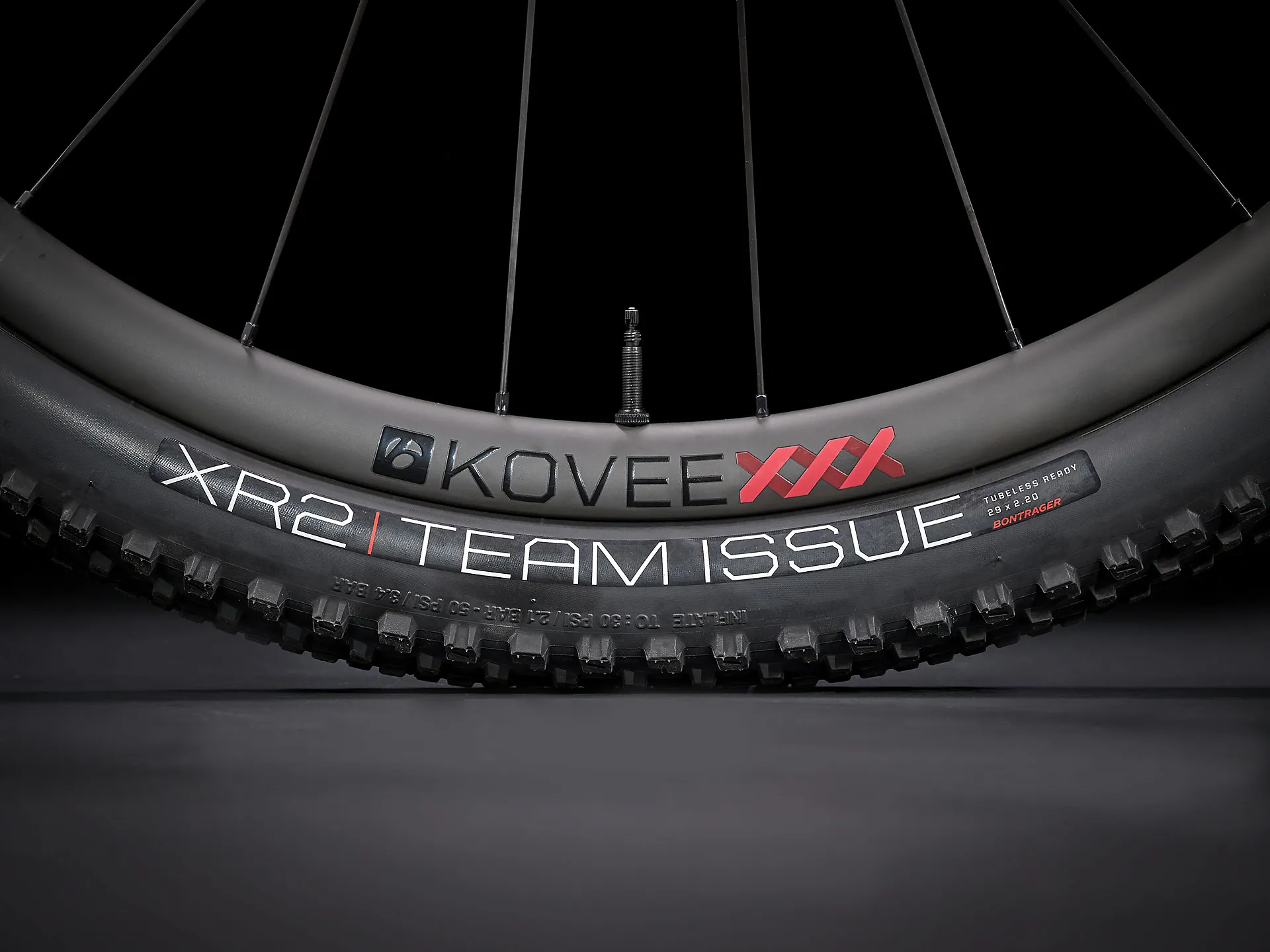

WheelsFRONT: Bontrager Kovee XXX, OCLV Mountain Carbon, Tubeless Ready, CenterLock, Boost110, 15 mm thru axle
REAR: Bontrager Kovee XXX, OCLV Mountain Carbon, Tubeless Ready, DT Swiss 54T engagement, CenterLock, SRAM XD driver, Boost148, 12 mm thru axle
TiresBontrager XR2 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.20"
Drivetrain
ShiftersSRAM XX1 Eagle, 12-speed
Rear derailleurSRAM XX1 Eagle
CrankSize: S

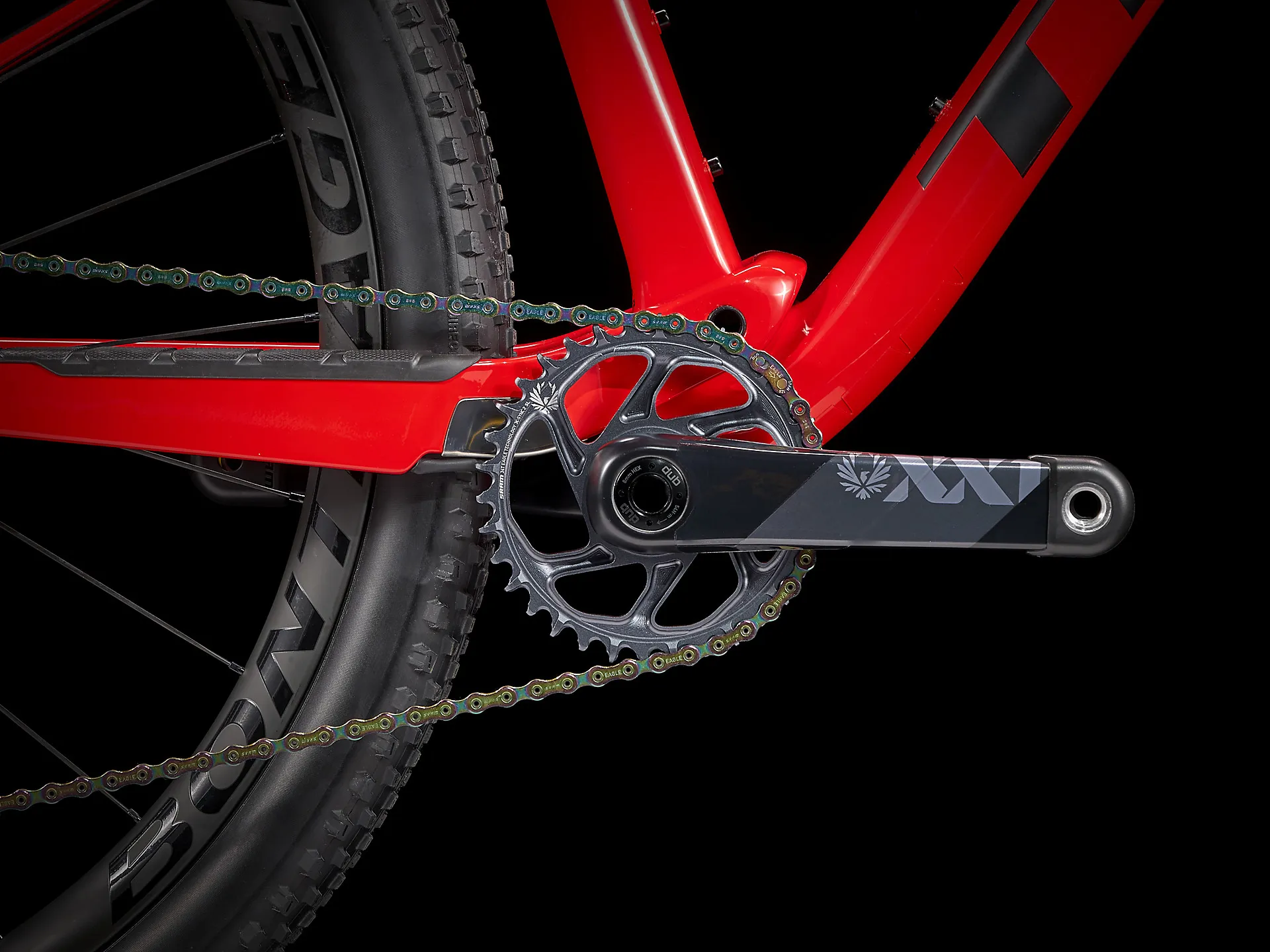

SRAM XX1 Eagle AXS Carbon, DUB, 34T alloy ring, Boost (52mm chainline), 170mm length
Size: M, M/L, L, XL
SRAM XX1 Eagle AXS Carbon, DUB, 34T alloy ring, Boost, 175 mm length

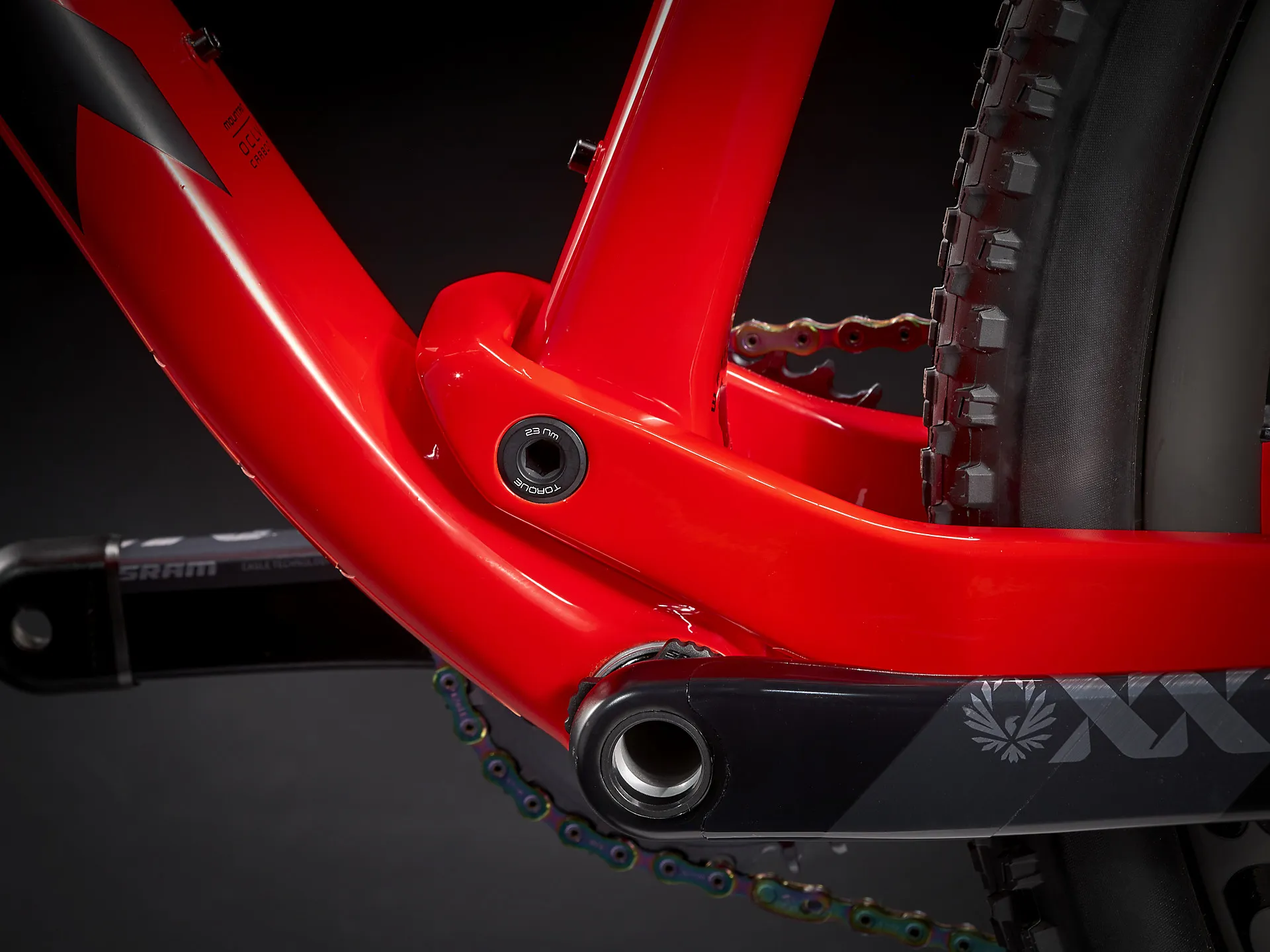

Bottom bracketSRAM DUB, 92mm, PressFit
CassetteSRAM Eagle XG-1299, 10-52, 12-speed
ChainSRAM XX1 Eagle, 12-speed
Components
SaddleBontrager Montrose Pro, 7x10 mm carbon rails, 138 mm width
SeatpostSize: S
Bontrager XXX, OCLV Carbon, 31.6 mm, 0 mm offset, 330 mm length
Size: M, M/L, L, XL, XXL
Bontrager XXX, OCLV Carbon, 31.6 mm, 0 mm offset, 400 mm length
HandlebarBontrager Kovee XXX, OCLV Carbon, 35 mm, 0 mm rise, 720 mm width
StemSize: S
Bontrager Kovee Pro, 35 mm, Knock Block, Blendr-compatible, 13-degree, 60 mm length
Size: M, M/L
Bontrager Kovee Pro, 35 mm, Knock Block, Blendr-compatible, 13-degree, 70 mm length
Size: L, XL
Bontrager Kovee Pro, 35 mm, Knock Block, Blendr-compatible, 13-degree, 80 mm length
Size: XXL
Bontrager Kovee Pro, 35 mm, Knock Block, Blendr-compatible, 13-degree, 90 mm length
Head setKnock Block Integrated, 62-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
GripsESI Chunky
BrakesetSRAM Level Ultimate hydraulic disc, carbon levers
WeightM - 9.29 kg / 20.48 lbs (with tubes)

Frame size numberFrame size letterA —Seat tubeB —Seat tube angleEffective seat tube angleC —Head tube lengthD —Head angleE —Effective top tubeF —Bottom bracket heightG —Bottom bracket dropH —Chainstay lengthI —OffsetJ —TrailK —WheelbaseL —StandoverM —Frame reachN —Frame stack
15.5S39.470.0°74.0°969.0°56.5325.3434.49.6107.97539.559.4
17.5M41.970.5°74.0°969.0°59.5325.3434.49.6110.67642.559.4
18.5ML44.570.5°74.0°969.0°61325.3434.49.6112.1764459.4
19.5L4771.0°74.0°969.0°62.5325.3434.49.6113.678.745.559.4
21.5XL50.871.0°74.0°10.569.0°65.9325.3434.49.6117.278.748.560.8
23XXL54.671.0°74.0°1269.0°68.3325.3434.49.6119.778.750.562.2
How To Measure Yourself
Measure Your Height
Our handy size charts match your height to the appropriate frame size so you need to be sure you’ve measured your height accurately.
Take off your shoes and stand with your back against a wall.
Make sure legs are together and your shoulders are back.
Place a pencil on top of your head and mark the wall (the best and easiest way to do this properly is with a friend to help you).
Measure from the floor to the pencil mark you have just made with a tape measure.
Range of Reach
For most people to get the right frame size, measuring your height will suffice. However, you may find that your height is on the borderline of the range we suggest for a particular frame. If this occurs you need to measure the range of your reach or “Ape Index”. This will ensure you get a comfortable distance between the handlebars and your saddle.
Stand up straight with your back against a wall.
Life your arms out horizontally either side of you.
Measure the distance from fingertip of one hand to fingertip of the other. This will give you your arm span.
Subtract your height from this figure to get your Ape Index.
If the result is positive (your arm span is greater than your height) you should go for the larger size of bike.
If the result is negative (your arm span is less than your height you need the smaller size.
Stand Over Height
You should also consider your inside leg measurement when choosing your bike to ensure adequate stand over height. Stand over height is the clearance between the top tube and the bottom of your crotch. For mountain bikes we recommend a distance of 2-4 inches and for road or hybrid bikes 1-2 inches of clearance is required. This will ensure comfort when you’re stopped and standing astride the bike.
Our bike sizing charts take stand over height into consideration but if you have a particularly long or short inside leg measurement in relation to your height you will need to bear this in mind when selecting your frame size.
Riding Style
The way you ride and the type of bike you are into will also impact the frame size you should choose. For example, a trail devotee looking for an aggressive ride may prefer a smaller, more manoeuvrable bike size. It all comes down to personal preference and how the bike feels to you.
Our sizing charts aim to be as specific as possible so you can look up the particular type, make and model of bike you’re looking for. Remember, the sizes given in our guides are suggestions and should be used for general advice only. For the best possible fit we recommend popping in to your local Leisure Lakes Bikes store, or call 0800 083 0888 for expert advice tailored to you.
Sizing Information

Trek Men's Bike Sizing Guide

We have put together a general sizing guide for Trek road and mountain bikes. Please see the below for a general size and check out the Trek Bikes Sizing Guide for all bike model guides and how to measure yourself.

Trek Men's Road Bike Sizing Guide

Rider Height: cm 151 153 155 157 159 161 163 165 167 169 171 173 175 177 179 181 183 185 187 189 191 193 195 197 199 201 203
in" 59.5 60 61 62 62.5 63.5 64 65 66 66.5 67.5 68 69 69.5 70.5 71.5 72 73 74 74.5 75 76 77 77.5 78.5 79 80
  44 cm
        47 cm
                  50 cm
                            52 cm
                                      54 cm
                                                  56 cm
                                                              58 cm
                                                                        60 cm
                                                                                  62 cm
                                                                                            64 cm

Trek Men's Mountain Bike Sizing Guide

Rider Height: cm 148 150 152 154 156 158 160 162 164 166 168 170 172 174 176 178 180 182 184 186 188 190 192 194 196 198
in" 58 59 60 60.5 61.5 62 63 64 64.5 65.5 66 67 68 68.5 69.5 70 71 71.5 72.5 73 74 75 75.5 76.5 77 78
  13.5 in
              15.5 in
                              17.5 in
                                                18.5 in
                                                              19.5 in
                                                                                21.5 in
                                                                                                      23 in

Trek Men's Commute Bike Sizing Guide

Rider Height: cm 148 150 152 154 156 158 160 162 164 166 168 170 172 174 176 178 180 182 184 186 188 190 192 194 196 198 200 202 204
  13 in
                15 in
                                    17.5 in
                                                        20 in
                                                                              22.5 in
                                                                                                    25 in
