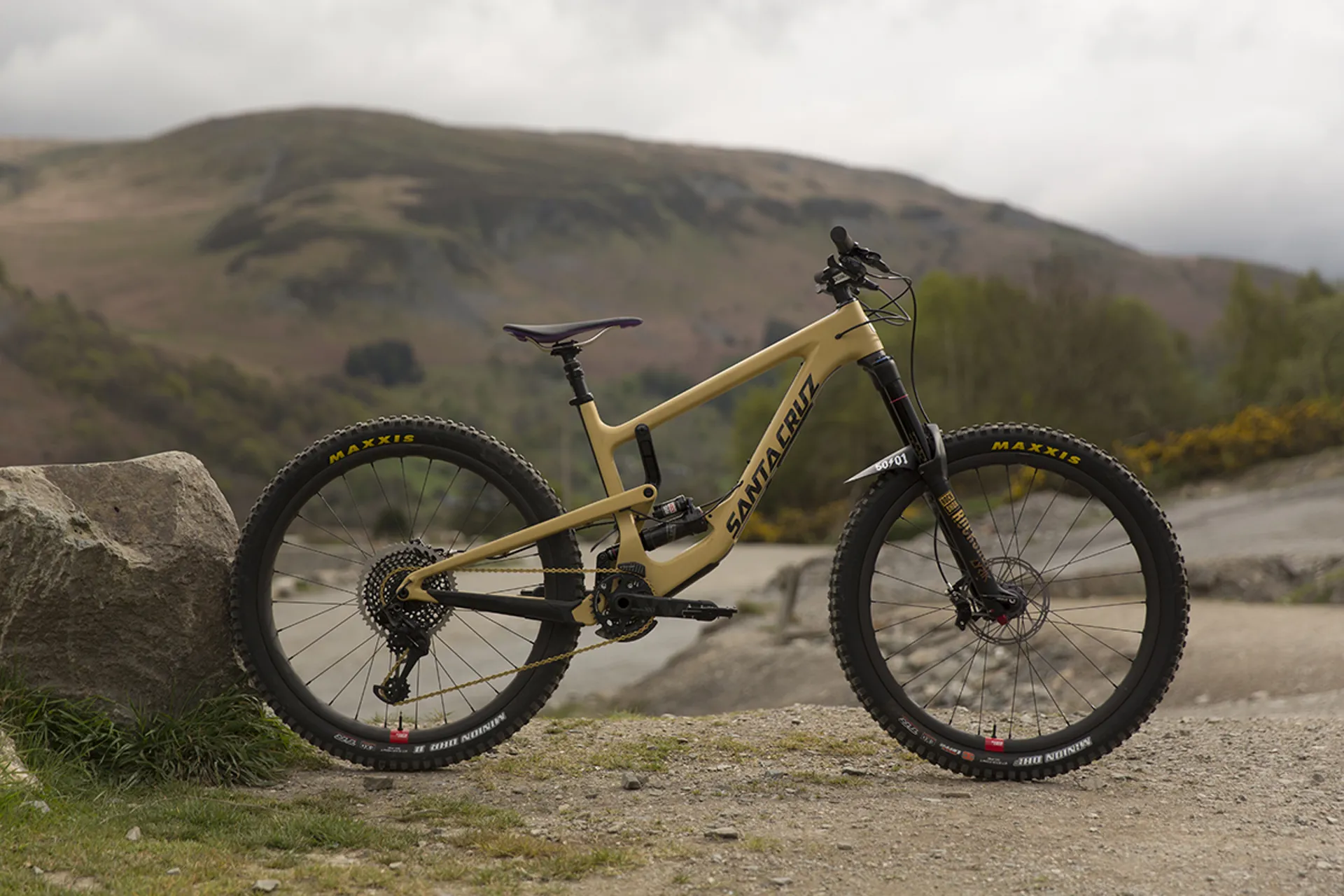

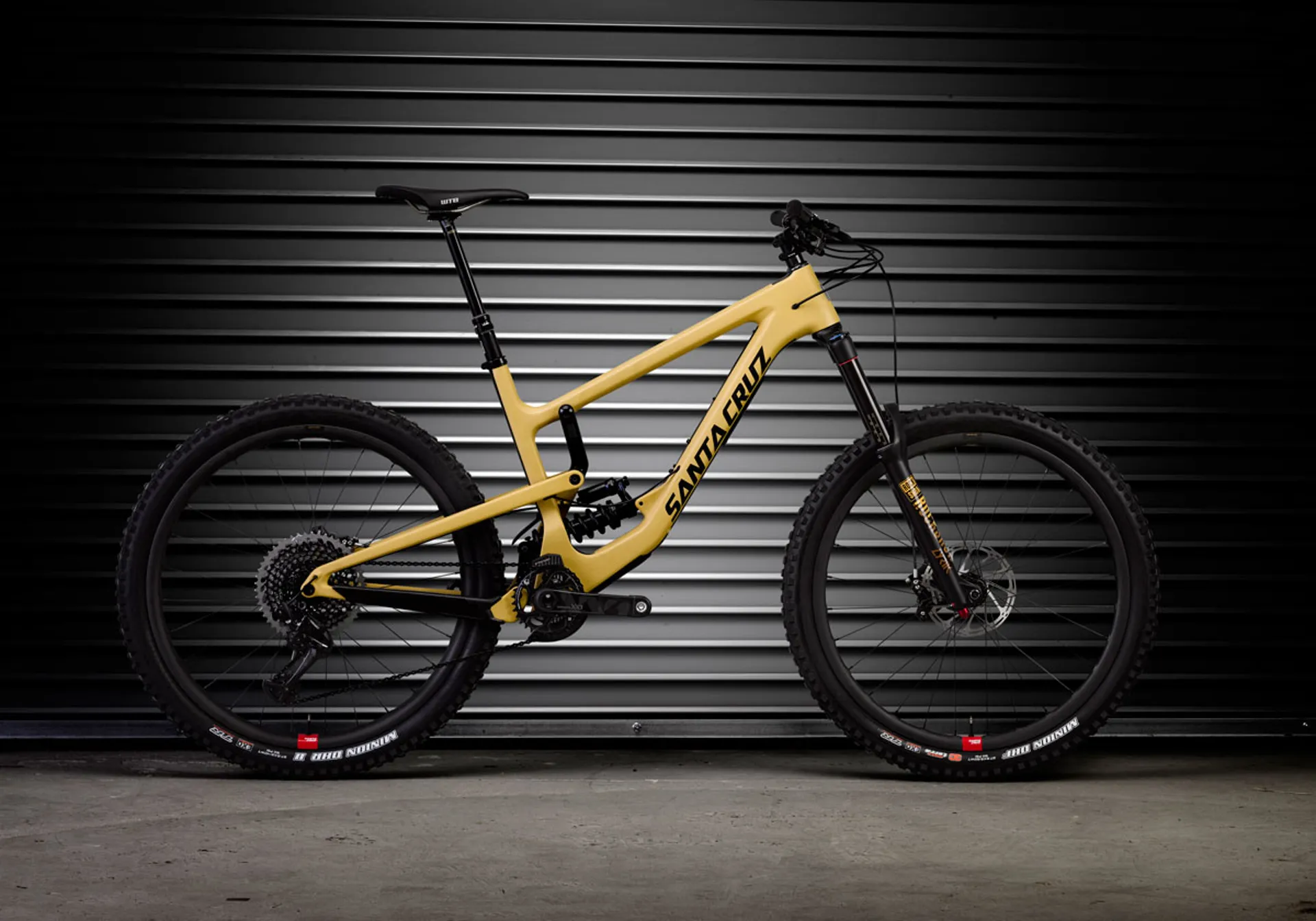

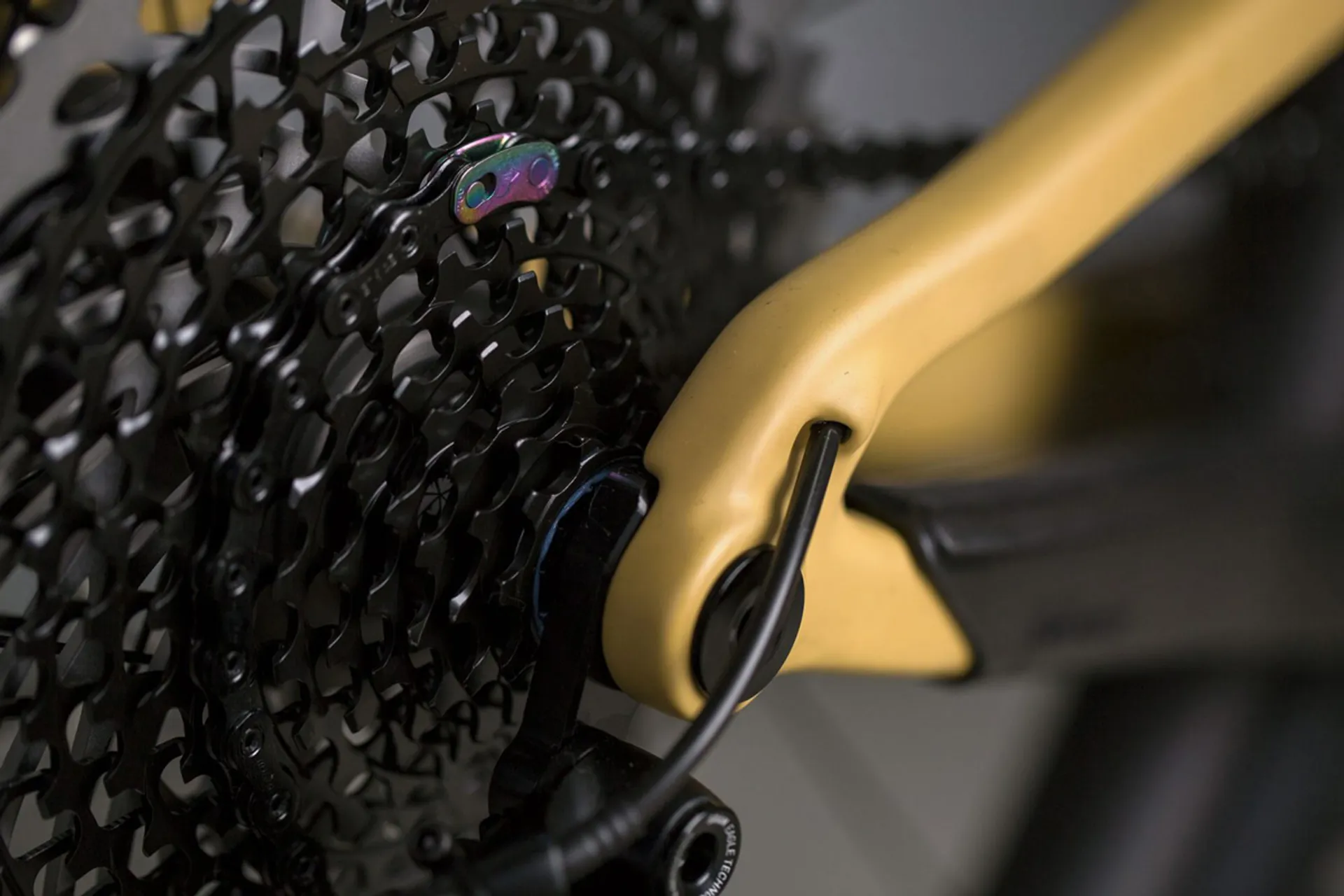

Santa Cruz Nomad C XE 27.5 Mountain Bike 2018 Tan/Black

Season:2018

Brand:Santa Cruz

Code:SCS1716-SCRUZ18

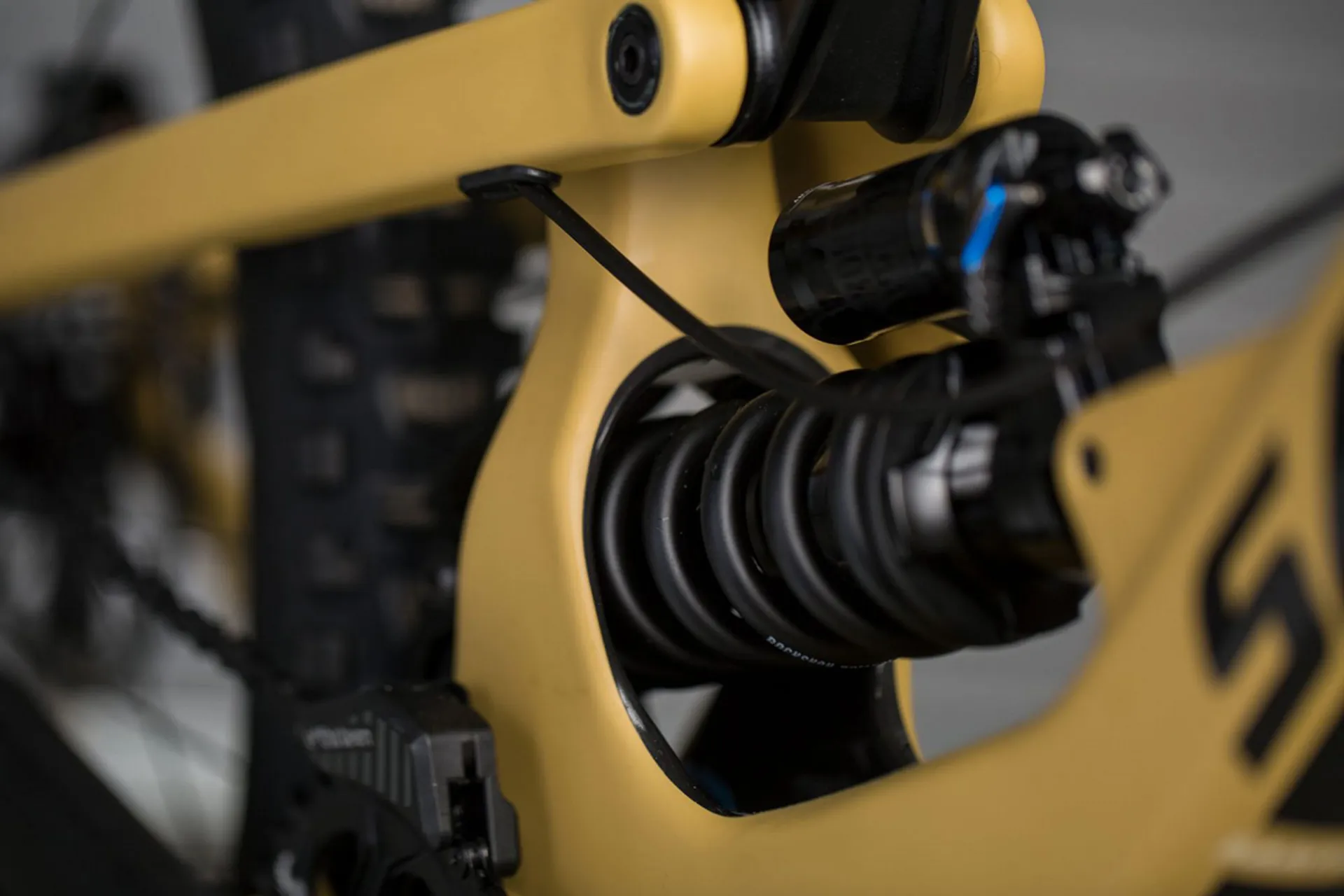

The Santa Cruz Nomad gets a complete redesign for the new season, bringing in a lower link-mounted shock (akin to the V10 linkage system) alongside a whole new geometry.

This new suspension configuration creates a shock rate that’s both supportive & progressive, perfect for rough terrain. It also plays well with coil shocks, adding to the depth and dimension of the Nomad’s ride characteristics and range of tunability.

Tweaks to the geometry ensure that the Nomad 4.0 stays on the fine-line between flat-out DH & a bike that’s still a load of fun out on the trails. The flip-chip on the lower link provides two riding settings, the higher setting delivering added versatility, while the lower setting slackening things further out to near DH levels. A pedal-friendly 74.5-degree seat tube angle alongside it’s longer & lower-slung base lead to a ride that maximises stability & confidence on just about everything.

In the process of redefining the Nomad, Santa Cruz have spent a fair bit of time on the bike’s details. Bolt-on downtube protectors and shuttle guards ward off any wayward rocks and the sandpaper effect of tailgate transport. An integrated fender helps keep crud out of the suspension, which is still backed with lifetime warranty.

Images are for Illustrative purposes only. Please check the Specification listing for an accurate build for the Santa Cruz Nomad C XE 2018. Pre-order date is currently only an estimate - For more info please call us on 0800 083 0888 or contact us via Live Chat!

Santa Cruz Nomad 2018 Features

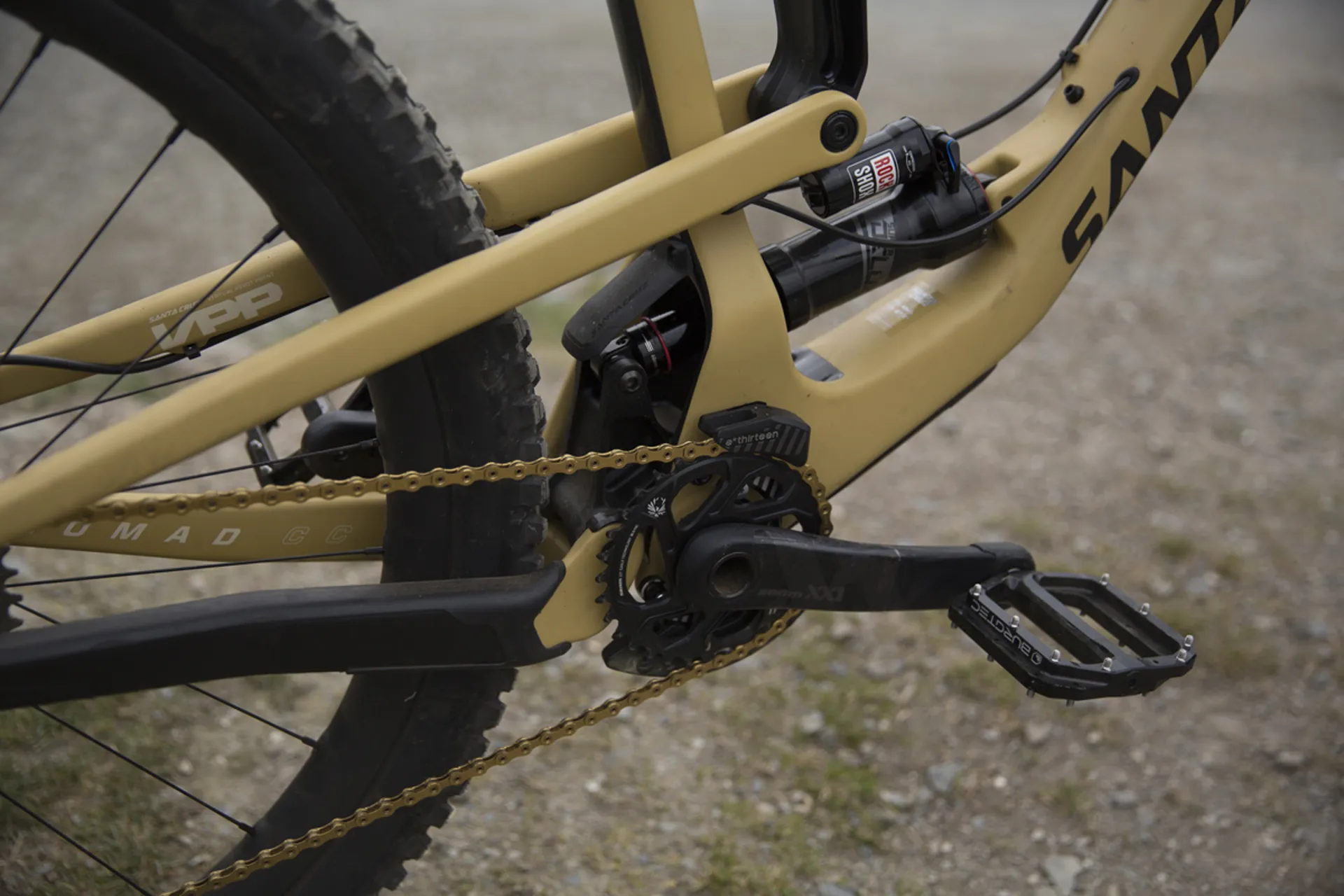

  • Lower-link mounted shock configuration takes inspiration from the V10 to create a ride that pushes the boundaries of how DH a bike can be without sacrificing its trail riding capabilities.
  • Near linear shock rate delivers feather-light small bump sensitivity right off the bat, a supportive midstroke & overall progression that’s typically found on a fully-fledged DH rig.
  • Flip-Chip on the lower link allows you to adapt to how you want to ride:
  • Higher setting – “Regular” riding mode, delivering additional versatility for all round performance
  • Lower setting – The Low setting is closer to DH status, slackening things further out for flat out confidence on the descents

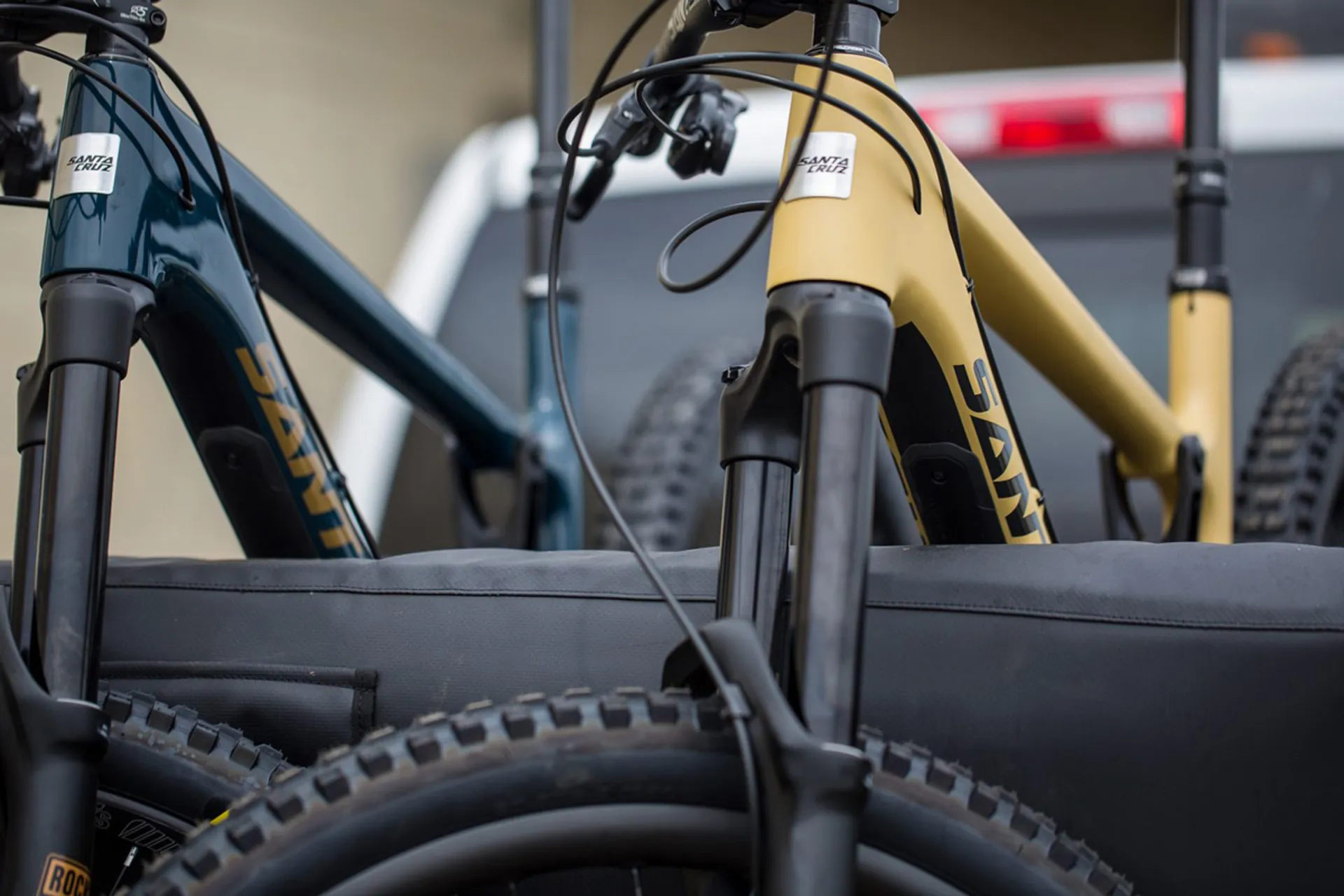

  • It’s all in the details – Bolt-on downtube protectors + shuttle guards which are replaceable & an integrated shock fender all help make your time with the Nomad that extra bit more enjoyable.

Santa Cruz Nomad C XE 2018 Build Highlights

  • RockShox Lyrik RCT3 Solo Air 170 fork
  • SRAM XT M8000 GS derailleur
  • SRAM Code RSC brakes
  • RaceFace Turbine crankset

Santa Cruz Nomad 4.0 Frame Features

  • 148mm Rear Axle Spacing
  • 170mm VPP™ suspension
  • 27.5" wheels
  • Angular contact bearings maximize stiffness
  • Bolt-on shuttle guard and downtube protector
  • Collet axle pivots lock in place without pinch bolts
  • Double sealed pivots for long bearing life
  • Forged upper and lower links
  • Full carbon frame and swingarm
  • Internal carbon tubes ensure precise and hassle-free routing of derailleur and seat post cables
  • ISCG-05 tabs for chainguide compatibility
  • Molded rubber swingarm and downtube protection
  • Recessed lower link protected from rock strikes
  • Single grease port on lower link for swift and easy maintenance
  • Threaded Bottom Bracket

Santa Cruz Nomad C Frame

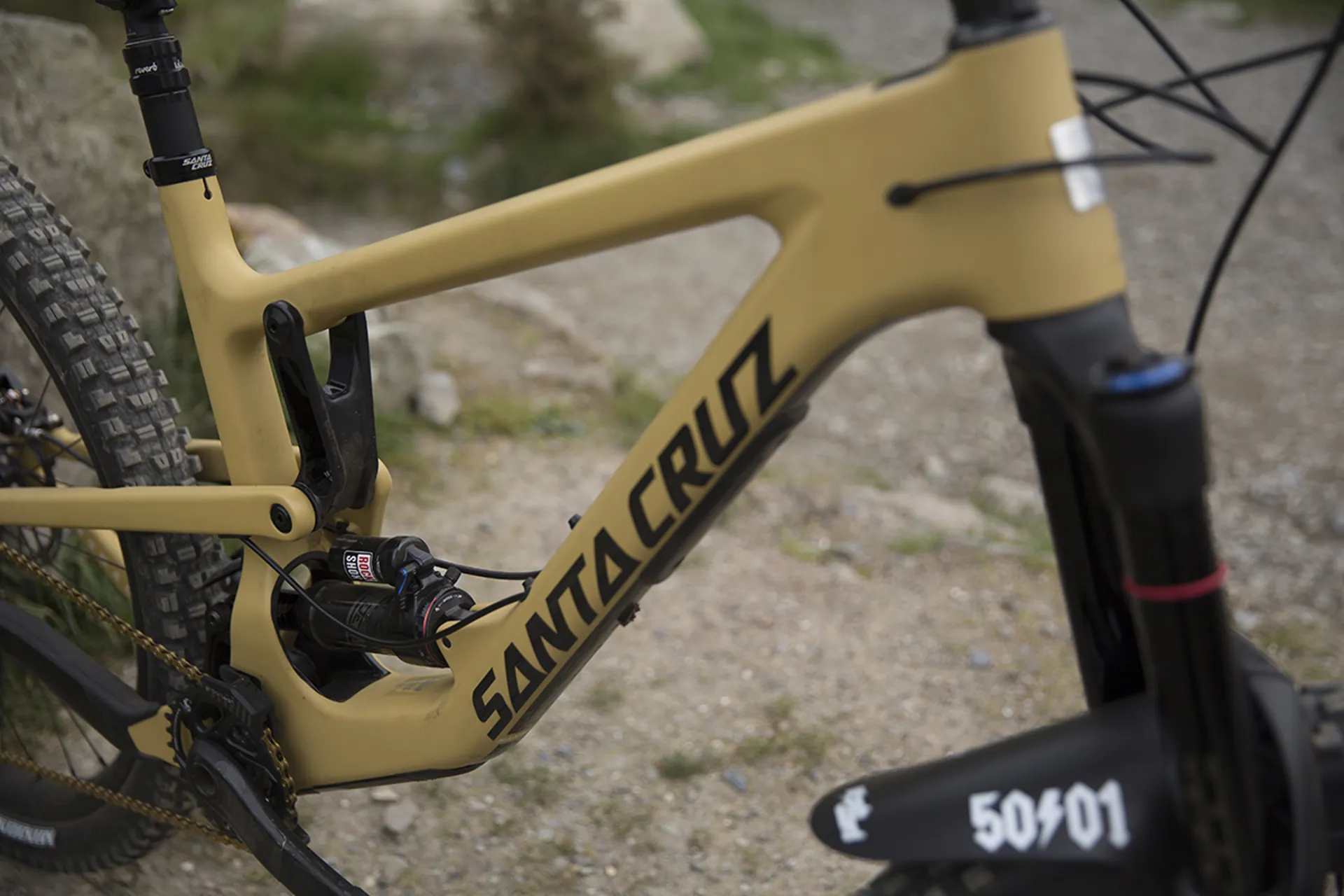

The C-Level carbon frame found on the Santa Cruz Nomad boasts the same level of stiffness and strength as the higher tiered CC-level frame, but with the sacrifice of a bit more weight (280 grams heavier than the CC frame) to ensure the proper reinforcement is provided.

Technical Information

Nomad 4.0 Frame Features

Suspension System VPP
Front Derailleur No compatibility
Headset/Headtube Integrated; IS41 upper, IS52 lower
Seat Post 31.6mm
Seat Clamp 36.4mm
Stroke 60mmm
Fork Compatibility 170-180mm
BB Shell Standard
Max Tire Size 2.5"
Water Bottle Mounts Yes

C XE Build Kit

Frame Carbon C 27.5” 170mm Travel VPP™
Shock RockShox Super Deluxe Coil RCT or Super Deluxe Air RCT
Fork RockShox Lyrik RCT3 170
Rear Derailleur Shimano XT M8000
Front Derailleur N/A
Chainguide E13 TRS + 1x Guide ISCG05
Shifters Shimano XT M8000
Brakes SRAM Code RSC
Rotors Avid Centerline - 180mm
Crankset Race Face Turbine 30t - 170mm
Cassette E13 TRS Race 11 speed 9-46t
Chain Shimano SLX M7000
Handlebar Santa Cruz AM Carbon Bar - 35x800mm
Stem Race Face Aeffect R - 50mm
Grips Santa Cruz Palmdale Grips - Black
Headset Cane Creek 40 IS Integrated Headset
Seatpost RockShox Reverb Stealth - 31.6x100mm (XS), 125mm (S), 150mm
Saddle WTB Silverado Pro
Front Tyre Maxxis Minion DHF 3C EXO TR - 27.5x2.5”
Rear Tyre Maxxis Minion DHR II EXO TR - 27.5x2.4”
Tubes/Sealant Stan’s Sealant
Front Hub Novatec D641 - 15x110mm
Rear Hub Novatec D642 - 12x148mm (XD)
Rims E13 TRS 30mm - 32h
Spokes DT Competition




Sizing Information

Santa Cruz Nomad 4.0 Sizing Guide

For more information & to ensure that you get the correct fit, check out our Santa Cruz Bikes Sizing Guide; it contains full measurements for each model, as well as tips on how to measure yourself correctly.

Height Frame Size
5'0" - 5'5" S
5'5" - 5'10" M
5'10" - 6'1" L
6'1" - 6'6" XL

High Setting Geometry

  XS S M L XL
Reach 390mm 420mm 440mm 460mm 490mm
Stack 584mm 593mm 602mm 611mm 620mm
Head Tube Angle   65° 65° 65° 65°
Seat Tube Length 375mm 390mm 420mm 450mm 480mm
Front Center 704mm 738mm 762mm 787mm 821mm
BB Height 344mm 344mm 344mm 344mm 344mm
BB Drop 10mm 10mm 10mm 10mm 10mm
Wheelbase 1134mm 1168mm 1192mm 1217mm 1251mm
Chainstay Length 430mm 430mm 430mm 430mm 430mm
Head Tube Length 90mm 100mm 110mm 120mm 130mm
Top Tube Length 540mm 573mm 596mm 619mm 653mm
Seat Tube Angle 74.5° 74.5° 74.5° 74.5° 74.5°
Standover Height 710mm 712mm 728mm 726mm 724mm

Low Setting Geometry

  XS S M L XL
Reach 386mm 416mm 436mm 456mm 486mm
Stack 587mm 596mm 605mm 614mm 623mm
Head Tube Angle 64.6° 64.6° 64.6° 64.6° 64.6°
Seat Tube Length 375mm 390mm 420mm 450mm 480mm
Front Center 704mm 738mm 762mm 787mm 821mm
BB Height 339mm 339mm 339mm 339mm 339mm
BB Drop 15mm 15mm 15mm 15mm 15mm
Wheelbase 1135mm 1169mm 1194mm 1218mm 1252mm
Chainstay Length 431mm 431mm 431mm 431mm 431mm
Head Tube Length 90mm 100mm 110mm 120mm 130mm
Top Tube Length 541mm 574mm 598mm 621mm 654mm
Seat Tube Angle 74.1° 74.1° 74.1° 74.1° 74.1°
Standover Height 704mm 706mm 722mm 720mm 718mm
