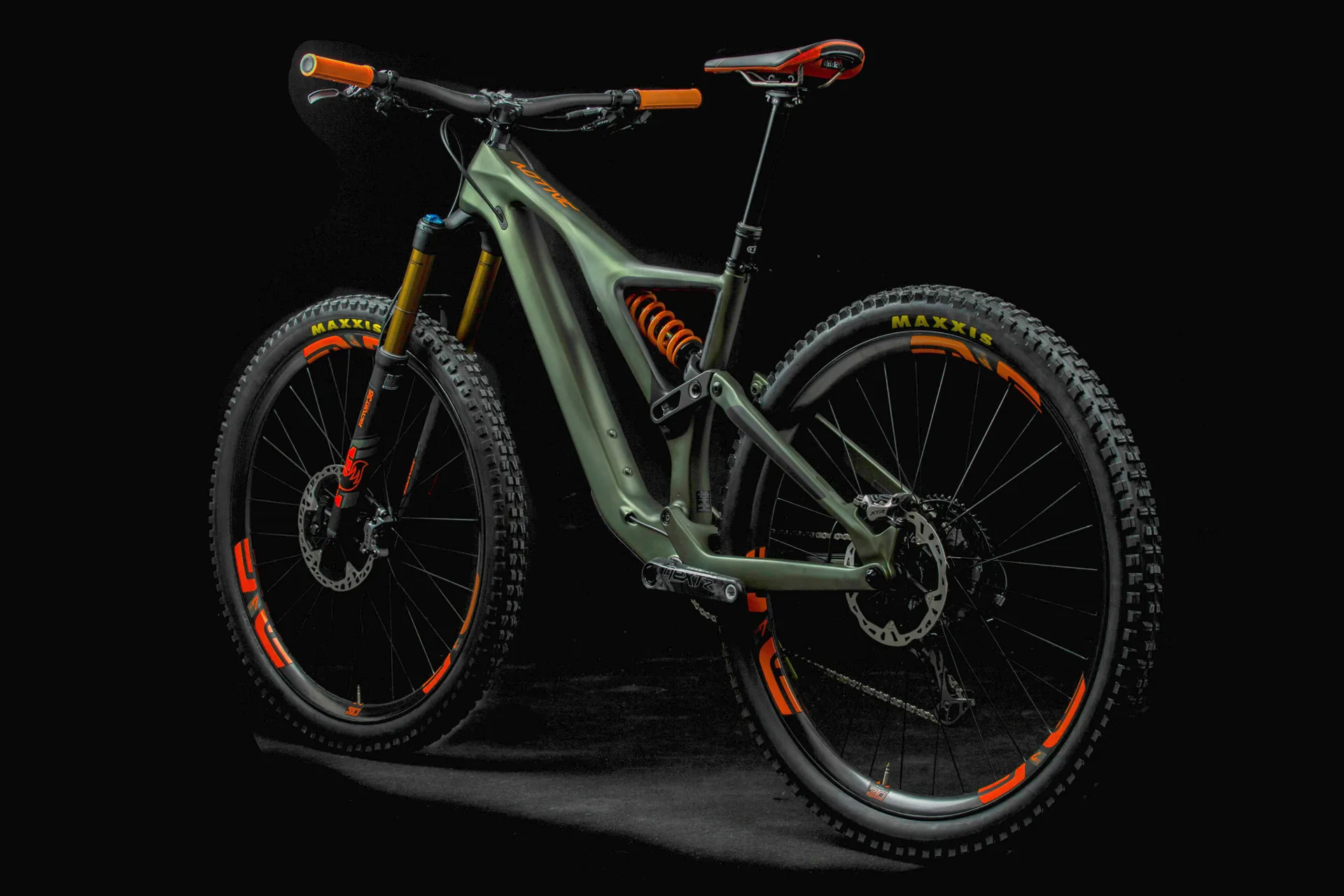

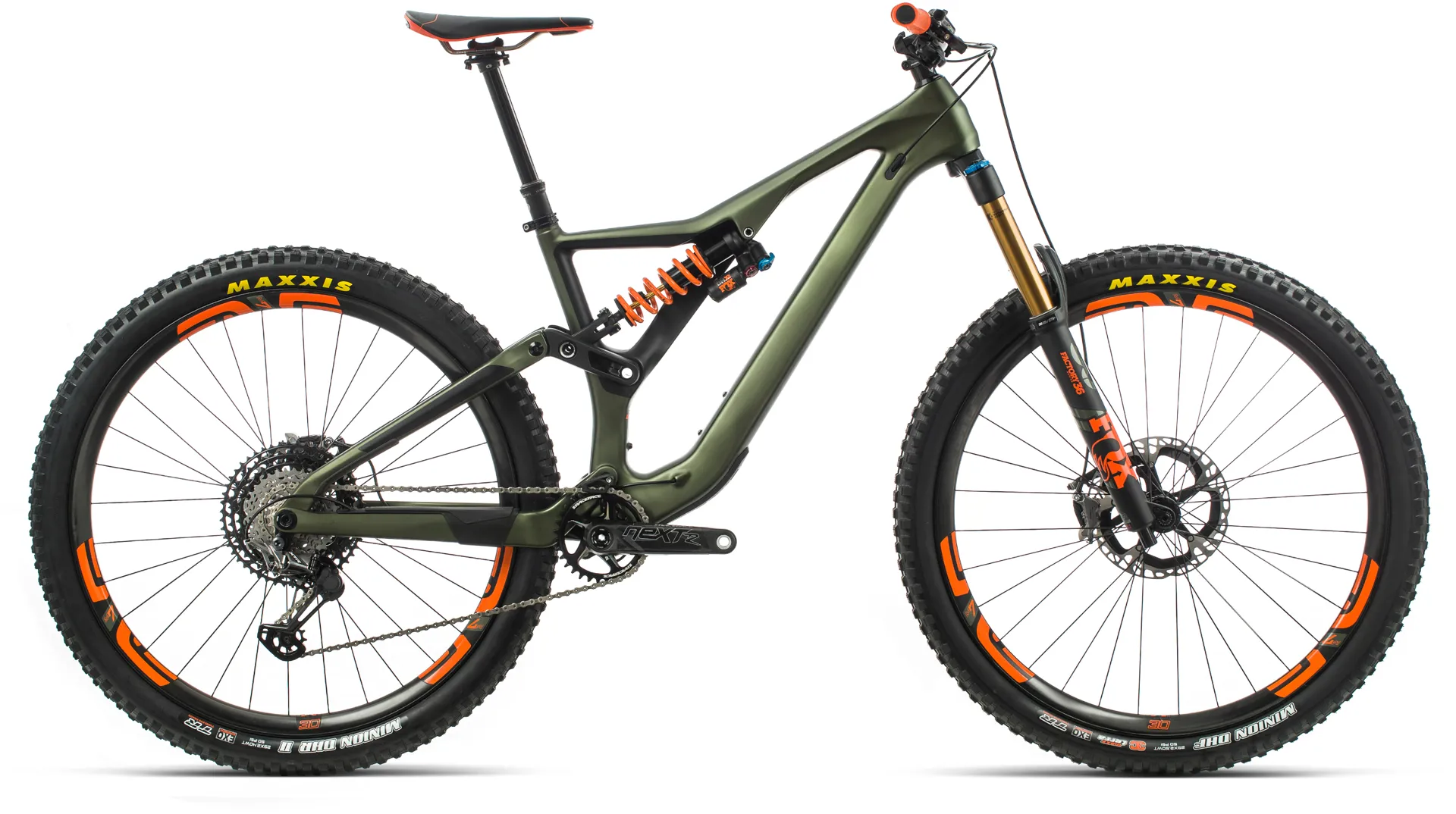

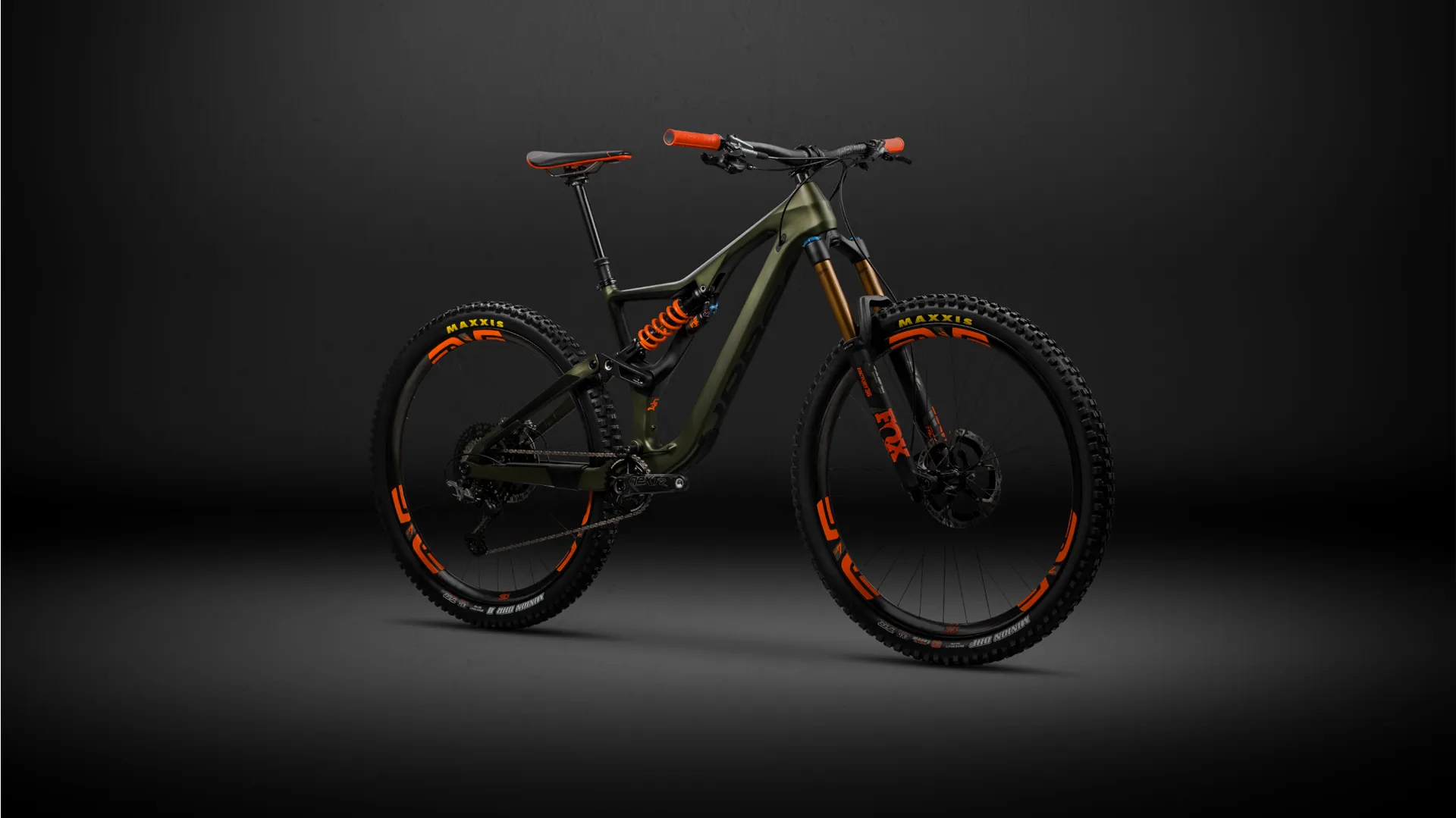

Orbea Rallon M-LTD 29er Mountain Bike 2020 Matte Green / Gloss Orange

Season:2020

Brand:Orbea

Code:K271Green/Orange

The Orbea Rallon M-LTD 29er Mountain Bike. It’s the difference between the tentative first go of the year and the ripping third lap of a midsummer day. It’s the ease of knowing your suspension is dialed. It’s a boost of confidence, speed and control when a bit more of any could make a winning formula. Enduralin is the extra bit of fun that turns a good ride into a great one – the shouting of the crowd, a flow state of euphoria, cowbells, chainsaws, accelerated reaction time and enhanced perception. It’s the difference between a Good Time and All-Time.

Orbea Rallon M-LTD 2020 Mountain Bike Technical Specification

Longer Travel With new Kinematics

  • The 2020 Orbea Rallon gets a bump in travel to 160mm with a redesigned linkage assembly. A higher starting leverage ratio improves early stroke sensitivity, while the progressive rate increases from 8% to 20% to provide more bottom-out support.
  • Frame geometry remains unchanged, even with greater travel and the addition of a 170mm Fox 36 fork gives the Rallon a boost of 'Enduralin' with a new 64.5 degree head angle.
  • Advanced Dynamics is at the heart of every Orbea suspension bike. It is a computer based modelling process we developed in conjunction with CEIT (Centro de Estudios e Invesgaciones Tecnogicas) that allows us to virtually test and fine tune our suspension platforms.
  • Connected Link . The Rallon's concentric boost suspension provides unique freedom to Orbea's engineers to finely design the kinematics so that pedalling efficency, small bump sensibility, suspension progressivity and rear system stiffness to weight ratio can be independantly optimized. A high main pivot point provides minimum pedalling energy losses at the same time the seat stays and linkage positioning ensure just the right progressivity for outstanding bump absorption and ultimate grip and control when its needed
  • Using a vast database of shock tunes and component behaviors we can study a design under a simulated rider that exerts forces on the pedals, saddle and handlebars.
  • Orbea Monocoque Race (OMR) frames blend high modulus fibres and high strength fibres exclusively. Prepreg sheets are laser cut to minimize excess materials and overlap, hours of pre-moulding ensure optimal compaction with the smallest amount of carbon. A full EPS (Expanded Polysyrene) mold helps eliminate wrinkles and voids.
  • Pure Enduro Geometry

  • Slack head angle
  • Long Cockpit
  • Adjustable Geometry
  • Long Wheelbase
  • Steep Seat Angle
  • Low Bottom Bracket
  • Short Chainstays



Technical Information
FRAME Orbea Monocoque Race Carbon. Advanced Dynamics 160mm suspension technology. 29" wheels.Concentric Boost 12x148 rear axle. Pure Enduro geometry. Internal cable routing. ISCG05

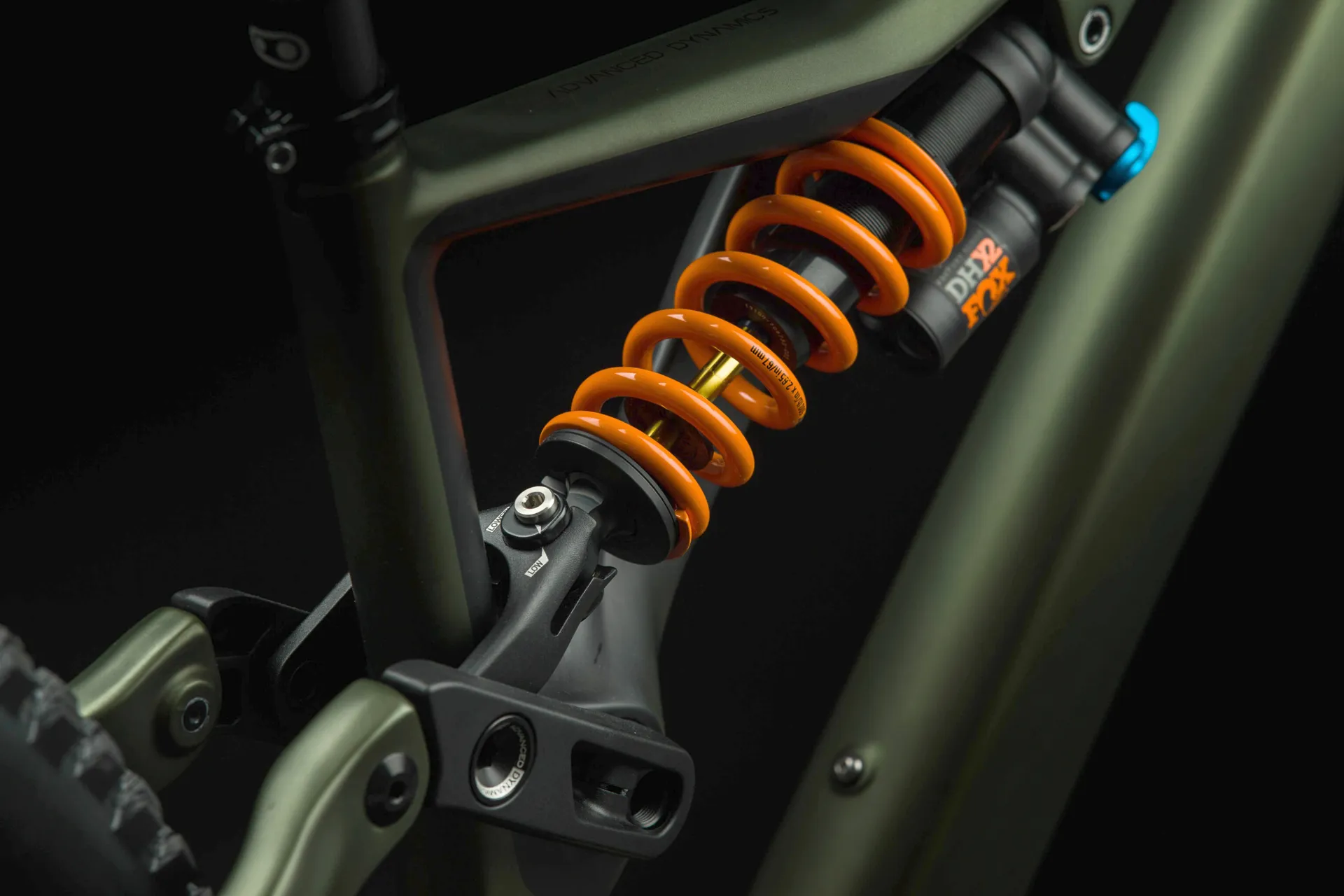

SHOCK Fox DHX2 Factory 2-Position Adjust SLS Spring TiN 230x60mm
FORK Fox 36 Float Factory 170 Grip2 RC2 QR15x110 Kashima
CRANKSET Race Face Next-R 32t
HEADSET Acros Alloy 1-1/8 - 1-1/2" Integrated
HANDLEBAR Race Face Next R 35 20mm Rise 800mm
STEM Race Face Turbine R 35mm interface
SHIFTERS Shimano XTR M9100
BRAKES Shimano XTR M9120Hydraulic Disc
CASSETTE Shimano XTR M9100 10-51t 12-Speed
REAR DERAILLEUR Shimano XTR M9100 SGS Shadow Plus
CHAIN Shimano CN-9100
WHEELS ENVE M730 DT i9 Hydra 15/110mm CL TL
TYRES Maxxis Minion DHR II 2.40" FB 60 TPI Dual Exo TR
SEATPOST Crank brothers Highline
SADDLE Fizik Taiga Kium rail
CHAINGUIDE OneUp Components ISCG05 Guide
PEDALS Not included



Orbea Rallon M-series 2020 Geometry

                                                                   S/M                                                                         L                                XL

1 - SEAT TUBE (C-T) 406 444 483
2 - TOP TUBE (EFF) 583 611 644
3 - HEAD TUBE 100 110 125
4 - CHAINSTAY 435
5 - BB HEIGHT* 346/339
6 - BB DROP* 25/32
7 - WHEELBASE 1187 1217 1253
8 - HEAD ANGLE* 65/64,5º
9 - SEAT ANGLE* 76/75
10 - STANDOVER 737 767 781
11 - REACH 430 455 485
12 - STACK 618 627 640
13 - FORK LENGTH 577,1
RAKE 44



Sizing Information

SIZE CRANK STEM HANDLEBAR
S/M 170 45 780
LG 170 45 780
XL 170 55 780

* The handlebar size is centre-centre

HEIGHT ( CM ) HEIGHT ( IN ) SIZE
160-175 63.0"-68.9" S/M
170-185 66.9"-72.8" L
180-198 70.9"-78.0" XL



How To Measure Yourself

Measure Your Height

Our handy size charts match your height to the appropriate frame size so you need to be sure you’ve measured your height accurately.

  1. Take off your shoes and stand with your back against a wall.
  2. Make sure legs are together and your shoulders are back.
  3. Place a pencil on top of your head and mark the wall (the best and easiest way to do this properly is with a friend to help you).
  4. Measure from the floor to the pencil mark you have just made with a tape measure.

Range of Reach

For most people to get the right frame size, measuring your height will suffice. However, you may find that your height is on the borderline of the range we suggest for a particular frame. If this occurs you need to measure the range of your reach or “Ape Index”. This will ensure you get a comfortable distance between the handlebars and your saddle.

  1. Stand up straight with your back against a wall.
  2. Life your arms out horizontally either side of you.
  3. Measure the distance from fingertip of one hand to fingertip of the other. This will give you your arm span.
  4. Subtract your height from this figure to get your Ape Index.
  5. If the result is positive (your arm span is greater than your height) you should go for the larger size of bike.
  6. If the result is negative (your arm span is less than your height you need the smaller size.

Stand Over Height

You should also consider your inside leg measurement when choosing your bike to ensure adequate stand over height. Stand over height is the clearance between the top tube and the bottom of your crotch. For mountain bikes we recommend a distance of 2-4 inches and for road or hybrid bikes 1-2 inches of clearance is required. This will ensure comfort when you’re stopped and standing astride the bike.

Our bike sizing charts take stand over height into consideration but if you have a particularly long or short inside leg measurement in relation to your height you will need to bear this in mind when selecting your frame size.

Riding Style

The way you ride and the type of bike you are into will also impact the frame size you should choose. For example, a trail devotee looking for an aggressive ride may prefer a smaller, more manoeuvrable bike size. It all comes down to personal preference and how the bike feels to you.

Our sizing charts aim to be as specific as possible so you can look up the particular type, make and model of bike you’re looking for. Remember, the sizes given in our guides are suggestions and should be used for general advice only. For the best possible fit  we recommend popping in to your local Leisure Lakes Bikes store, or call 0800 083 0888 for expert advice tailored to you.
