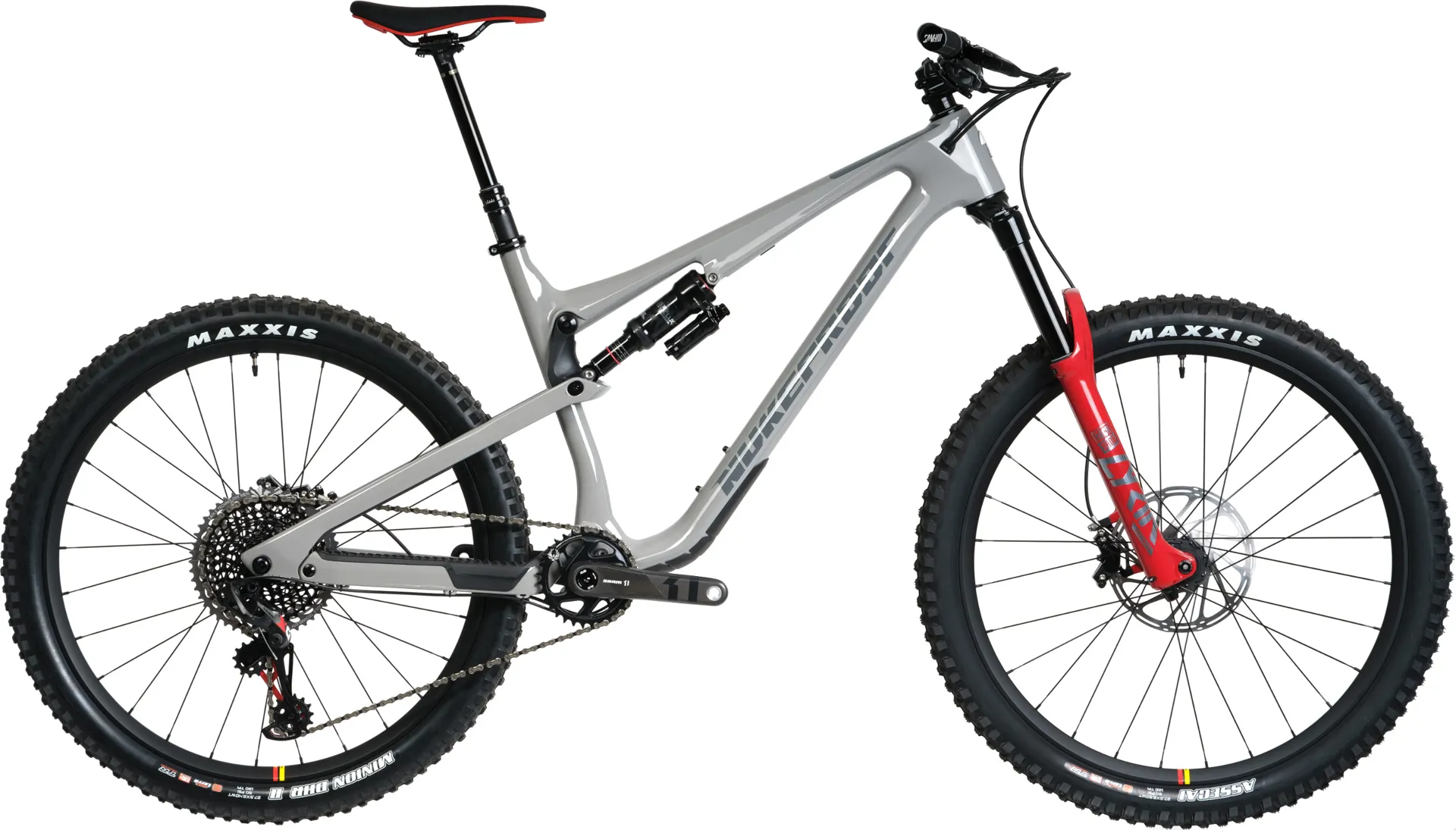

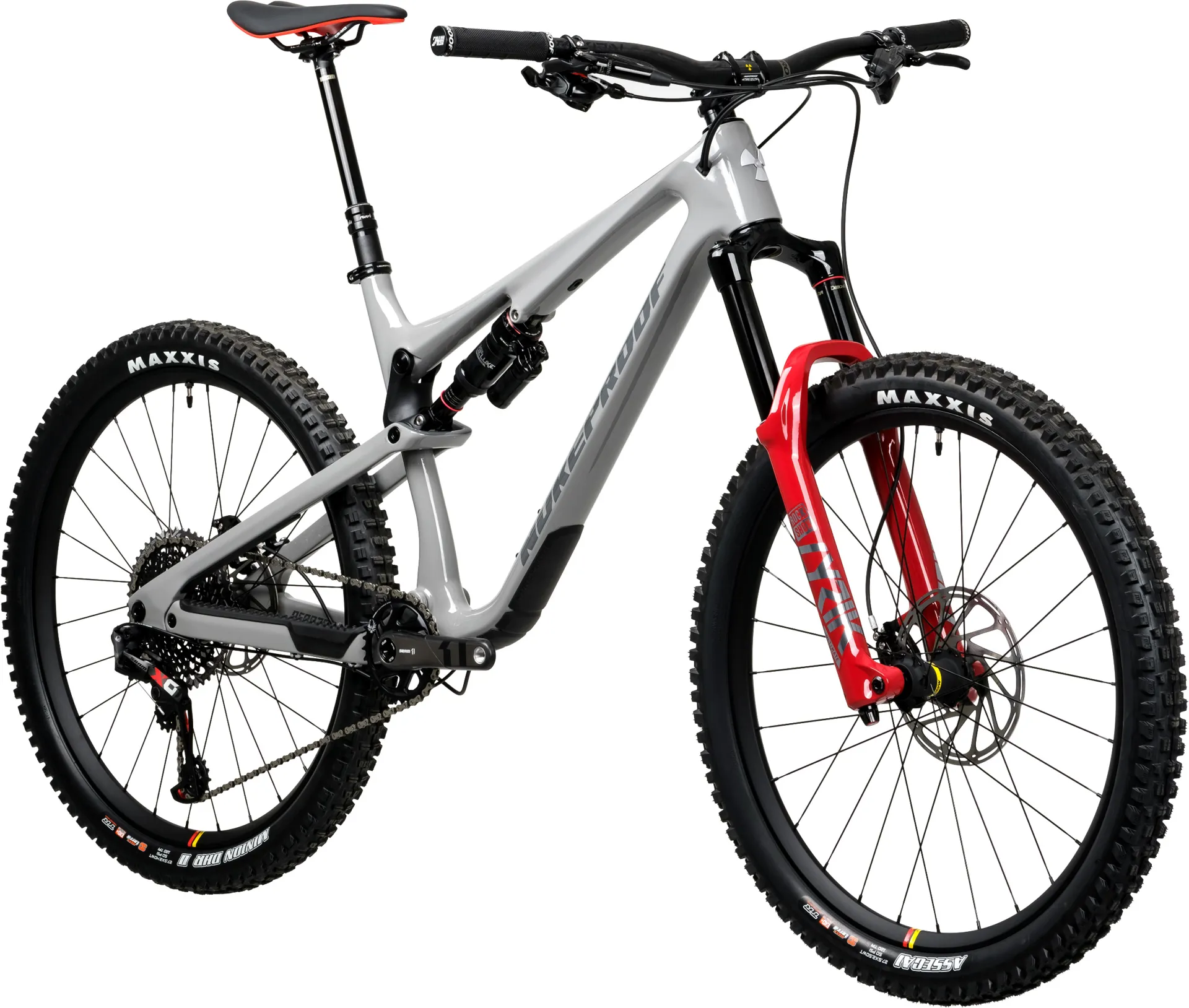

Nukeproof Reactor 275 RS XO1 Eagle 27.5 Mntn Bike 2020 Grey/Dark Grey

Season:2020

Brand:Nukeproof

Code:702038-NPROOF20

Introducing the all new Nukeproof Reactor RS XO1 Eagle 27.5, an old school name with a very new school look. Although it takes its name from the original 1996 Nukeproof Reactor trail frame, a lot has changed in the last 23 years as it runs an all new trail focused platform.

From concept through to design, the Kinematics, the geometry and specification; the Reactor is designed from the ground up to be the ultimate aggressive trail bike. It is at home on technical climbs, but happiest when thrashing the most technical trails you can point it at.

Frame Construction

To optimise the weight, strength and stiffness, the Reactor Carbon frame features a full UD woven carbon fibre frameset (Including chain and seat stays). It is available for 27.5” or 29” wheel sizes. These are two totally different, compromise free frames that were designed and developed at the same time.  Each frame is simply tailored around each wheel size.

Speed or play: which do you value more? The manoeuvrability of 27.5” or the raw speed of a 29”?

Adjustable Geometry

  • All Reactor frames feature a “flip chip” to adjust the geometry from “Trail” to “Rail mode”.
  • Trail – As the name suggests, this setting is best suited for trail riding. It is for riders who get as much enjoyment from the climb as the descents.
  • Rail – The Rail setting turns the Reactor into a corner shredder, dropping the bottom bracket 6mm and slackening the head angle by half a degree. It is there to maximise the descending capabilities.

Suspension Design

To ensure the bike could climb as well as it descends, Nukeproof engineers designed the 4 bar horst linkage to have higher levels of anti-squat for climbing gears but lower levels when you drop down the cassette. This means that the bike can behave itself on the climbs but when you get it up to speed, it turns into a trail hooligan. The combination of low anti-squat and progressive rate give ultimate small bump compliance (removes rough trail and root chatter) with good mid stroke support for cornering/pumping and end stroke progression for aggressive riding. Balanced anti-rise figures allow the Reactor some squat when braking hard, maintaining rider position and providing a good amount of pressure through the tyre to ensure traction. The Reactor is designed to reward the rider and ensure you get that stoke factor in on any ride.

Nukeproof Reactor RS Features

  • Nukeproof Reactor 275 Carbon, 140mm Rear Travel, UD woven Carbon Fibre front triangle/chain stays/seat stays, internal cable routing
  • RockShox Lyrik Ultimate Charger 2 RCT3 160mm Suspension Fork, DebonAir, BOOST
  • RockShox Super Deluxe Ultimate RCT, Custom ML 380 tuned Rear Shock
  • Mavic Deemax DH 27.5 Wheelset
  • Sram XO1 Eagle 12-Speed, Red
  • RockShox Reverb Stealth with 1x remote dropper seatpost










NUKEPROOF: THE HISTORY BEHIND THE BRAND

Nuke Proof Industries, the brain child of founder John Muenzenmeyer, started life in 1990 from the city of Grand Rapids, Michigan. As a passionate rider, John’s aim was to create desirable, innovative and reliable solutions to meet the demands of the emerging 90’s mountain bike market.  Nuke Proof Industries was pioneering in its design with the use of exotic materials such as titanium and carbon fibre. They were best known for their famous carbon/aluminium hubs.

Nuke Proof Industries went on to produce titanium frames, carbon fibre handle bars and other innovative components, represented at races by athletes such as James Bethea, a local courier with an appetite for winning with a unique attitude to boot.

History-Banner

Simultaneously, ex Downhill Masters World Champion Nigel Page was assembling the Chain Reaction Cycles-Intense team to compete in the UCI Downhill World Cup. Nigel chose to work with Nukeproof to develop components to meet the teams exacting standards, enabling them to test and showcase our components at the highest level of the sport (standing on the podium at the team’s first race). At the 2010 Interbike show in Las Vegas, Michael and Nigel decided the time was right to design and race our own bike, paving the way for the development of Nukeproof’s first downhill frame: the Scalp.

Today, with numerous UCI Downhill World Cup and Enduro World Series victories behind them, Nigel and the race team are integral to the development and testing of all new components and bikes. None more so than the iconic 3 times Downhill World Champion and two time Enduro World Series Champion Sam Hill developing his own signature series of Nukeproof components developed specifically for his requirements.

Now designed and developed in Belfast Northern Ireland, Nukeproof products are sold through select independent bike dealers around the world. The brand continues to evolve whilst retaining its proud history and traditions of being crafted ‘by riders for riders’.

TEAM-Banner




Technical Information
Frame Nukeproof Reactor 275 Carbon, 140mm Rear Travel, UD woven Carbon Fibre front triangle/chain stays/seat stays, internal cable routing, custom tuned rear shock, Enduro bearings, threaded bottom bracket, boost 148mm rear axle spacing, 3D contoured frame protection
Fork RockShox Lyrik Ultimate Charger 2 RCT3 160mm, 46mm Offset, BOOST, Debonair, Gloss Red

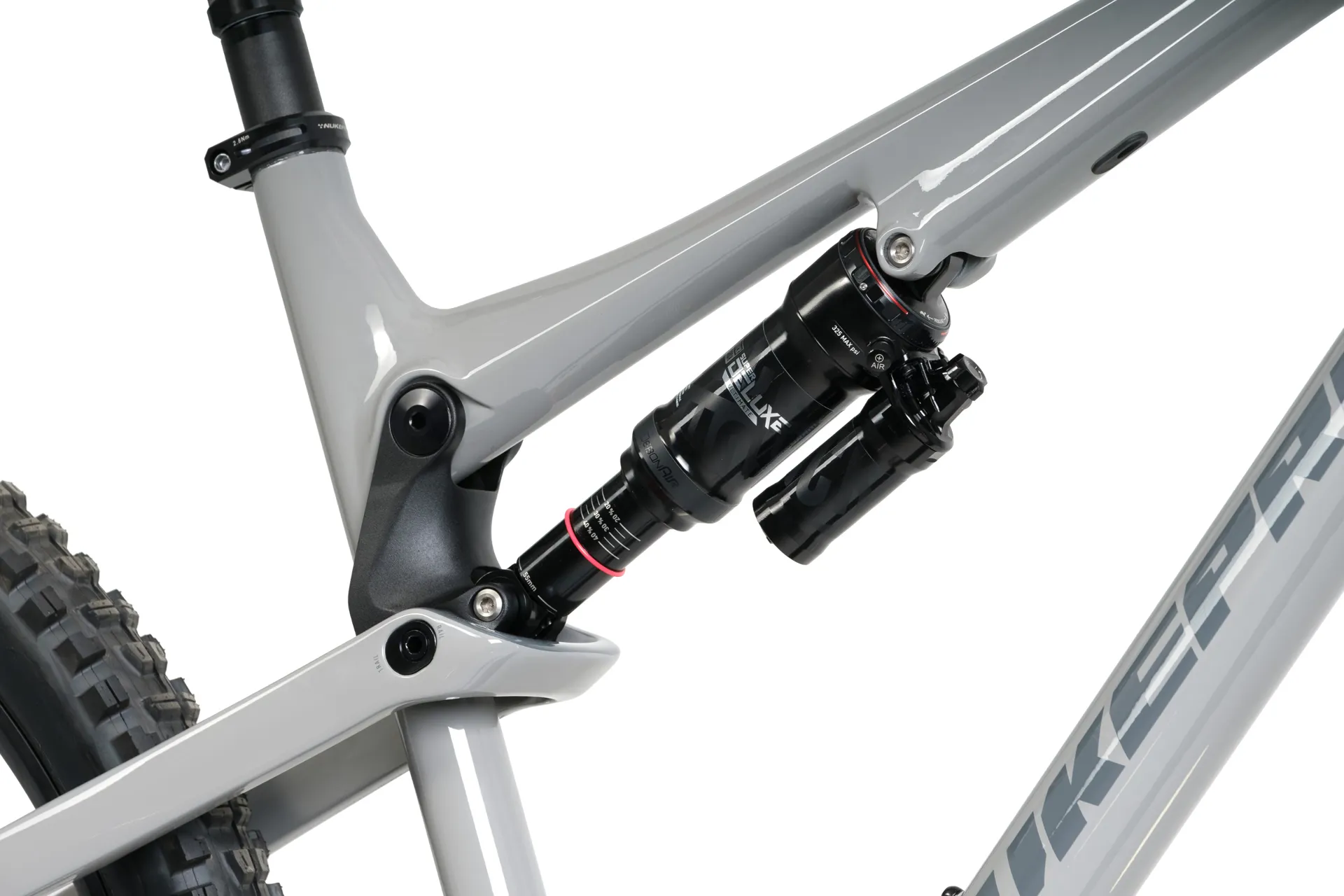

Shock  RockShox Super Deluxe Ultimate RCT, Custom ML 380 tune, 210x55mm, Bearing End (Comes with 1x bottomless token fitted so you have them if needed.)
Front Wheel Mavic Deemax DH, 27.5", 6 Bolt, 110x15mm
Rear Wheel Mavic Deemax DH, 27.5", 6 Bolt, XD Driver, 148x12mm
Tyres Maxxis Assegai 27.5”x2.5 WT 3C MaxxTerra/EXO+/TR, Rear: Maxxis Minion DHR II 27.5”x2.4 WT 3C MaxxTerra/EXO+/TR

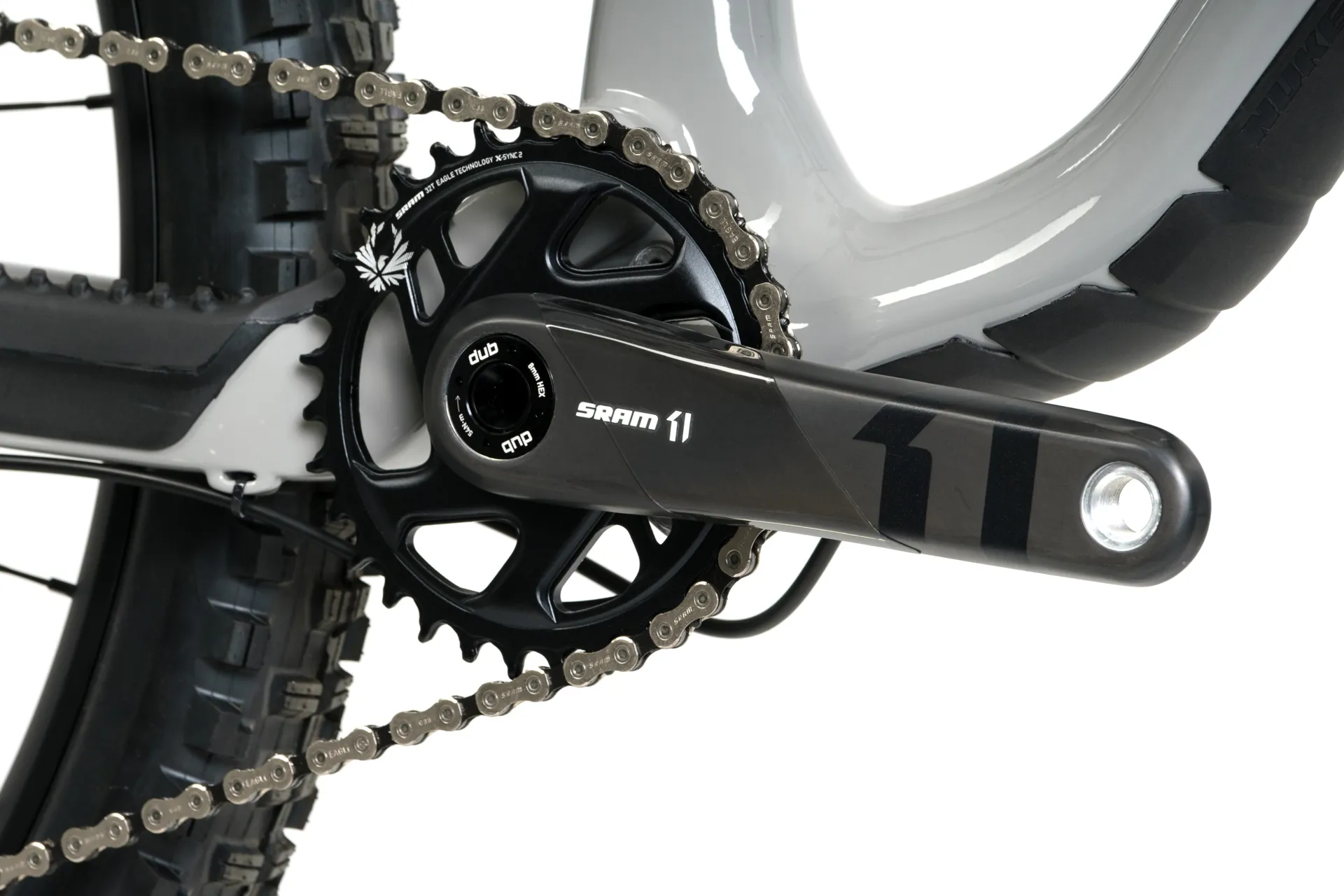

Crankset SRAM X1 Carbon Eagle 12-Speed, 170mm, 32T, B148, DUB
Shifter SRAM XO1 Eagle 12-Speed, Red

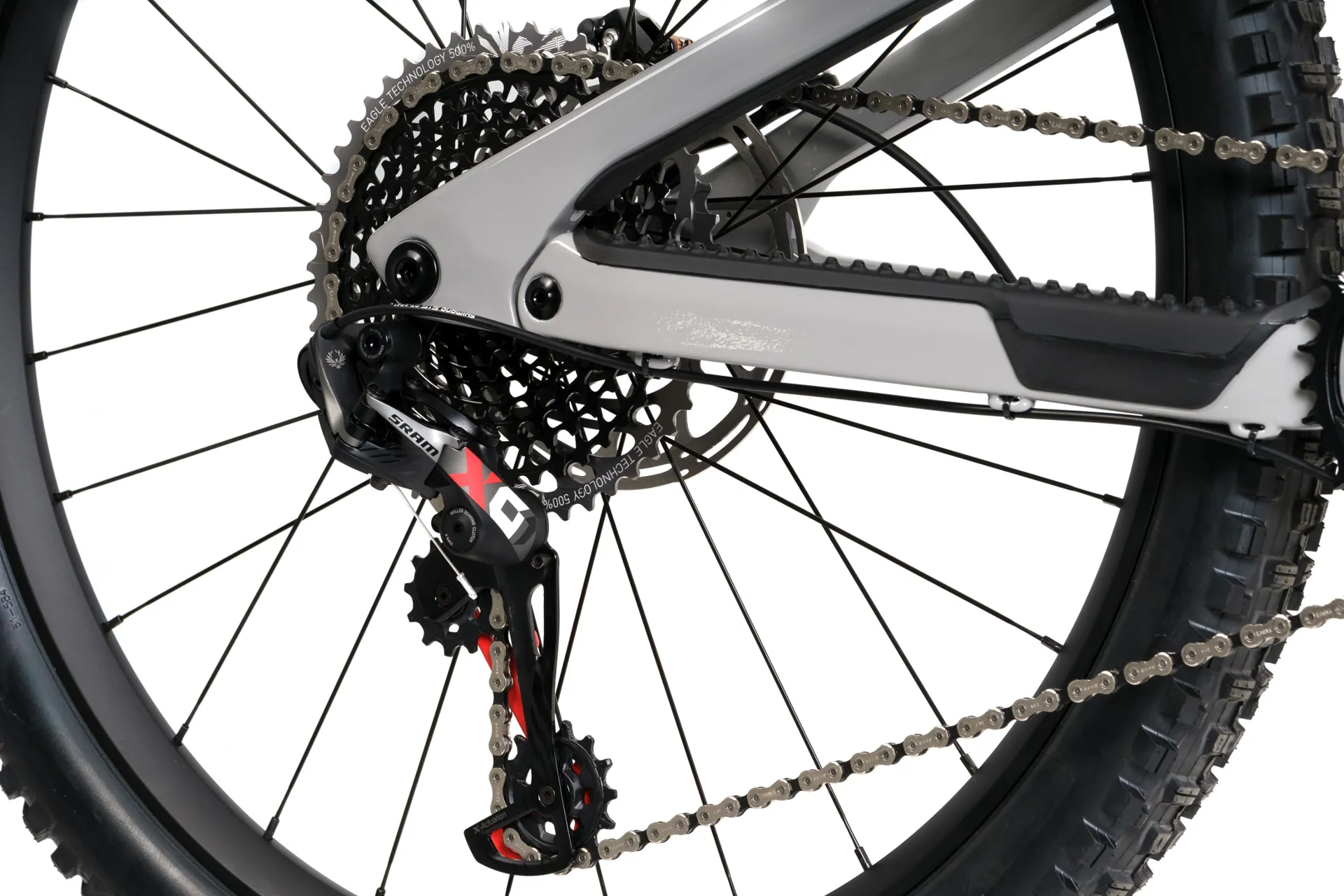

Rear Deraileur SRAM XO1 Eagle 12-Speed, Red
Cassette SRAM XO1 Eagle 12-Speed, CS PG1295 EAGLE 10-50T

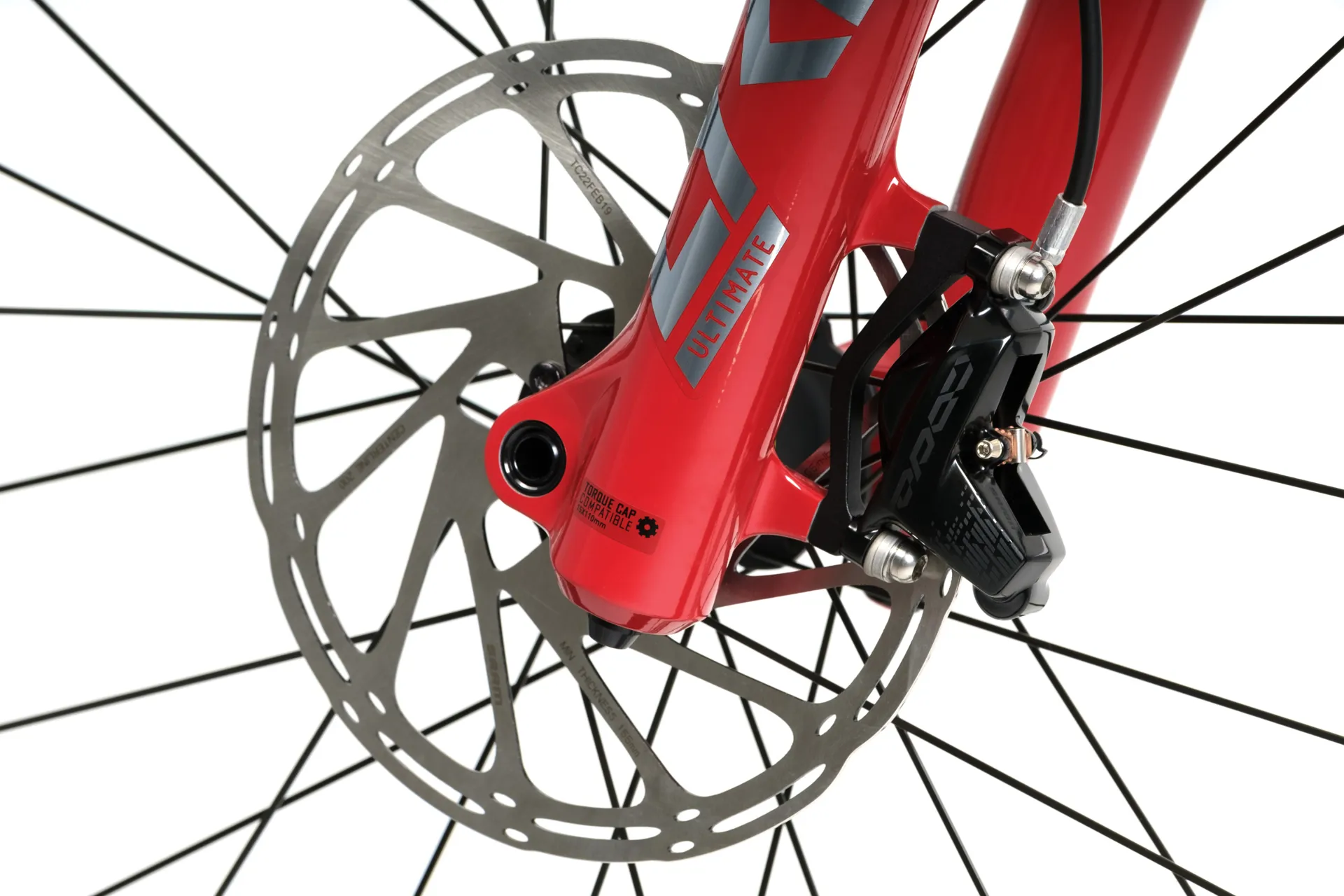

Brakes SRAM Code RSC

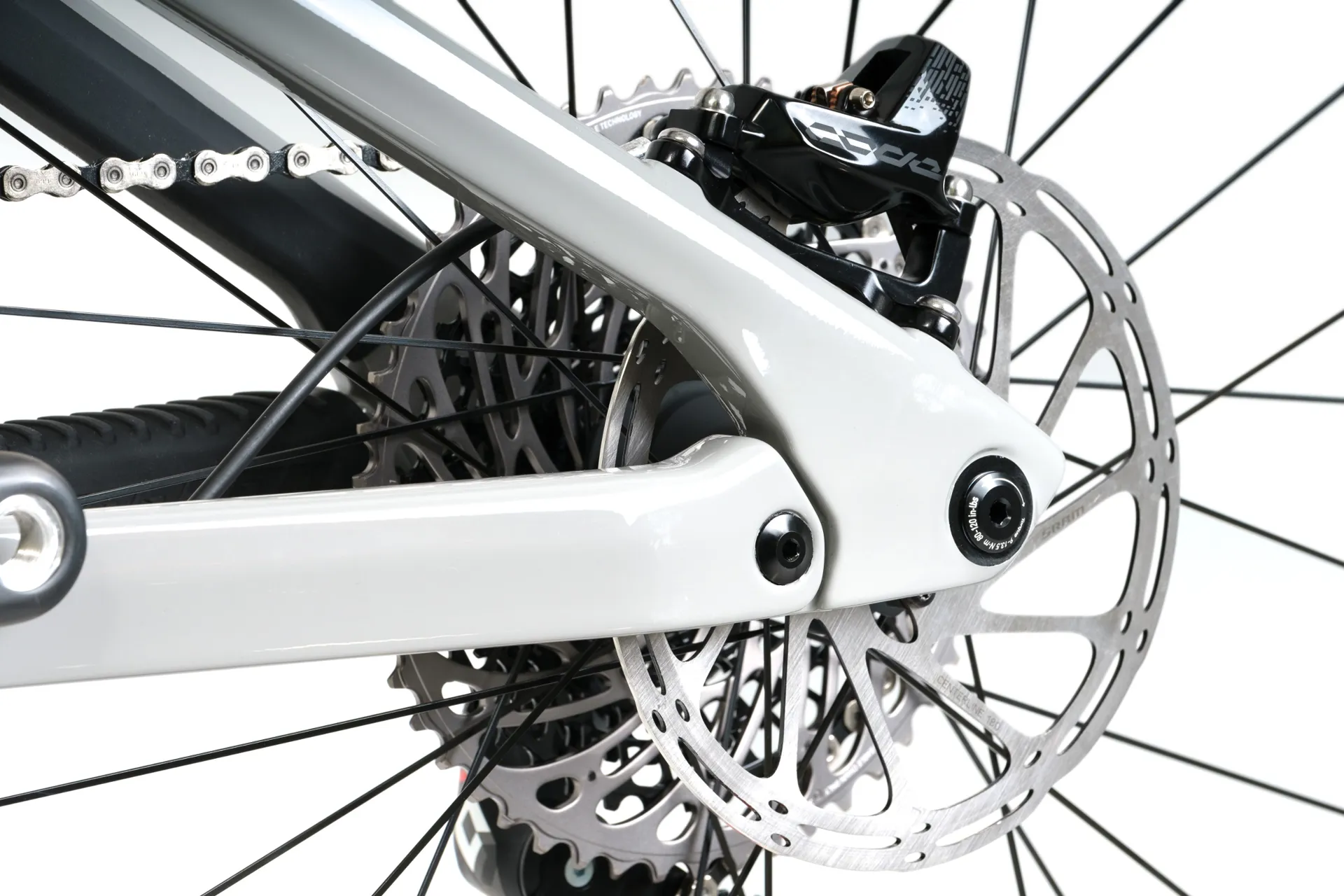

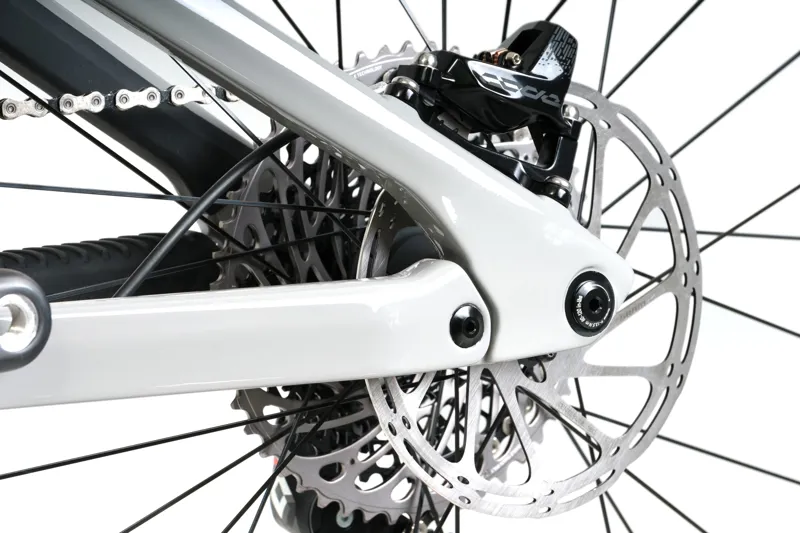

Rotors SRAM Centreline, 200mm (Front), 180mm (Rear)

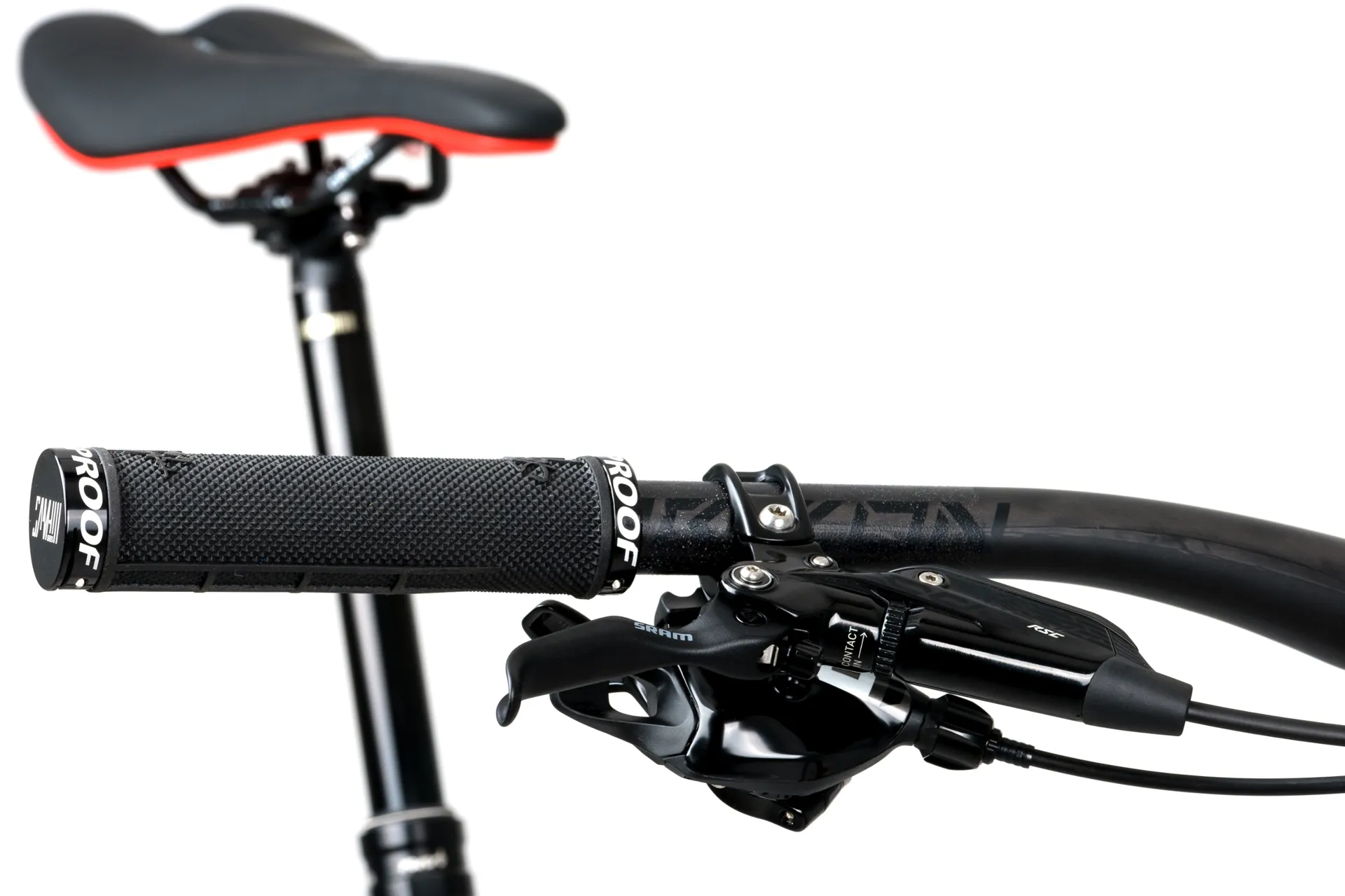

Handlebars Nukeproof Horizon Carbon 25mm Rise, Width - S780mm, M780mm, L800mm, XL800mm)
Stem Nukeproof Horizon, 50mm, Black
Grips Nukeproof Sam Hill Signature
Saddle Nukeproof Horizon SL, Red
Seatpost RockShox Reverb Stealth with 1x Remote, 31.6mm; S: 346mm length, 125mm drop; M: 409mm length, 150mm drop; L: 462mm length, 175mm drop; XL: 514.5mm length, 200mm drop
Headset Nukeproof, 44-56 IITS
Reactor 275 Carbon XO1 Technical Specifications
Material: Ultra Strong T700/800 Monocoque Carbon Fibre
Fork Travel: RS 160mm
Axle to Crown: RS 555mm
Fork Offset: 46mm
Shock Travel: 140mm
Wheels Size: 27.5″
Max Tyre Size: 2.6″
Shock Size: 210x55mm
Shock Hardware F: 25x8mm
Shock Hardware R: 30x8mm
Sizing: S/M/L/XL
Headtube: 44-56mm Tapered Semi-Integrated
Headset: ZS44-28.6 – T2 / ZS56/40 – B8
Bearings Required: 2x NP-5 (6902 2RS), 4x NP-7 (6800 2RS), 4x NP-106 (6901 2RS)
Seatpost: 31.6mm (Internal Routing for Dropper Seatpost)
Seat Clamp: 36.4mm
BB: Threaded 73mm BSA
Rear Hub: Boost 148x12mm
Rear Axle: Sram Maxle Stealth M12x1.75 180mm
Chain Guide: ISCG05
Brake Mount: 180mm Direct Post
Protection: 3D Contoured Rubber Frame Protection for DT/SS/CS



Sizing Information



Frame Size Small Medium Large Extra Large
Seat Tube 391mm/ 15" 420/16.5" 456/18" 509/20"
Effective Top Tube 580 610 640 675
Head Angle 66 (Rail 65.5) 66 (Rail 65.5) 66 (Rail 65.5) 66 (Rail 65.5)
Head Tube 110 115 120 125
Effective Seat Tube Angle 75.5 (Rail 75) 75.5 (Rail 75) 75.5 (Rail 75) 75.5 (Rail 75)
Wheelbase 1150 1181 1212 1247
Chain Stay 430 430 430 430
Bottom Bracket Drop -19 (Rail: -24) -19 (Rail: -24) -19 (Rail: -24) -19 (Rail: -24)
Reach 425 454 482.5 516
Fork Travel 150 150 150 150
Fork Offset 46 46 46 46
Axle to Crown 545 545 545 545
Stack 600 605 609 613.5
