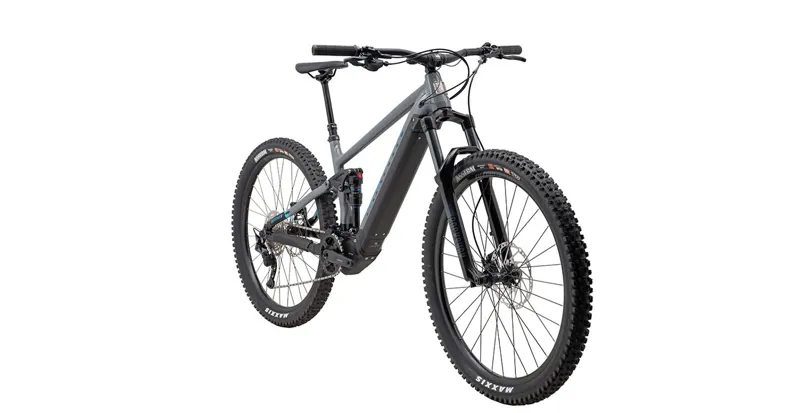

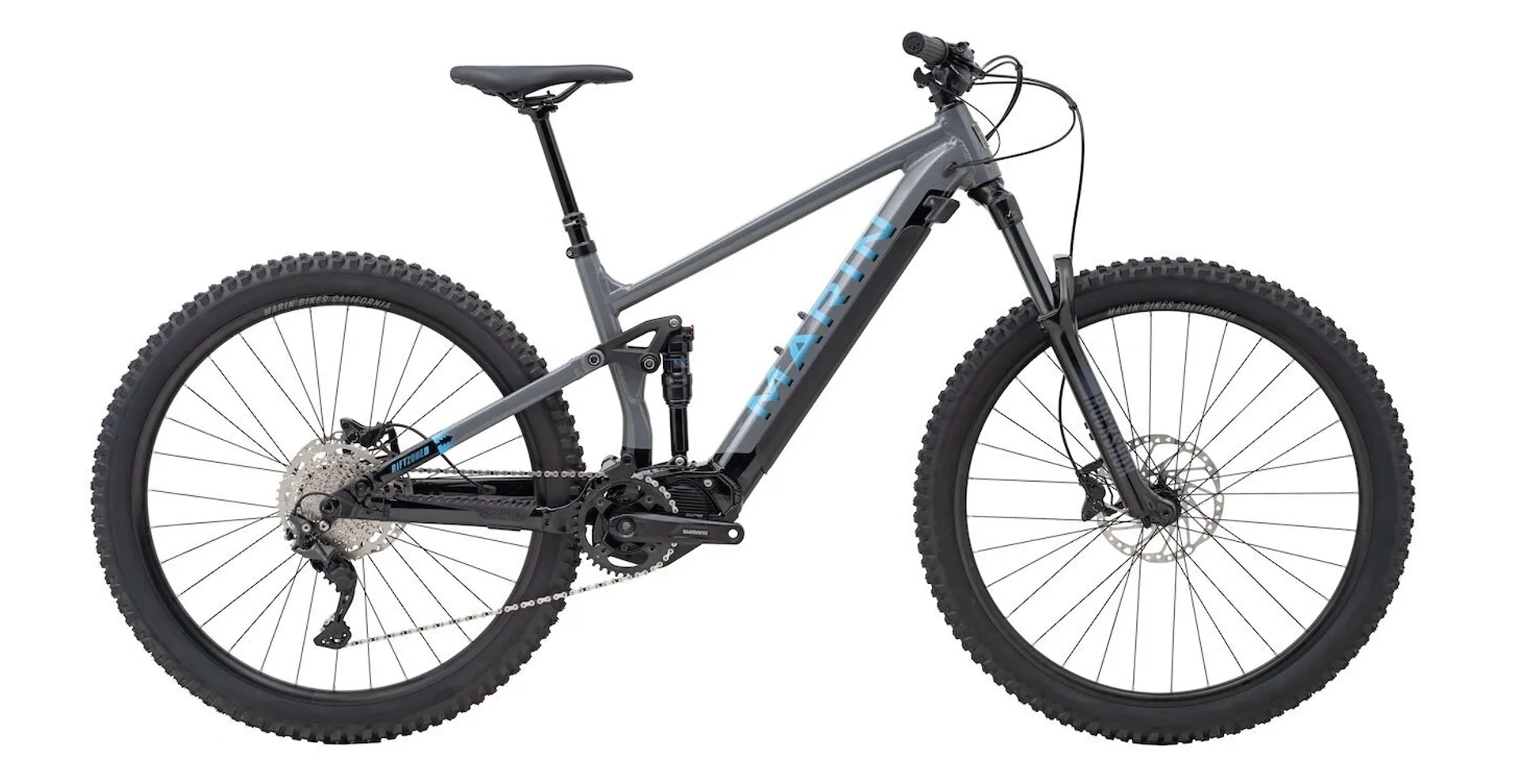

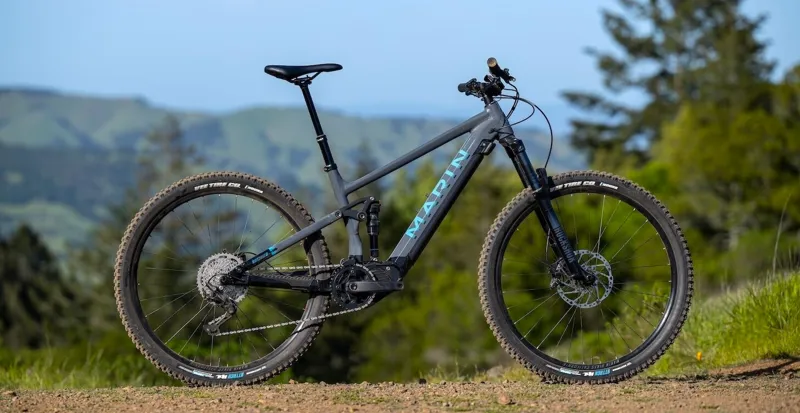

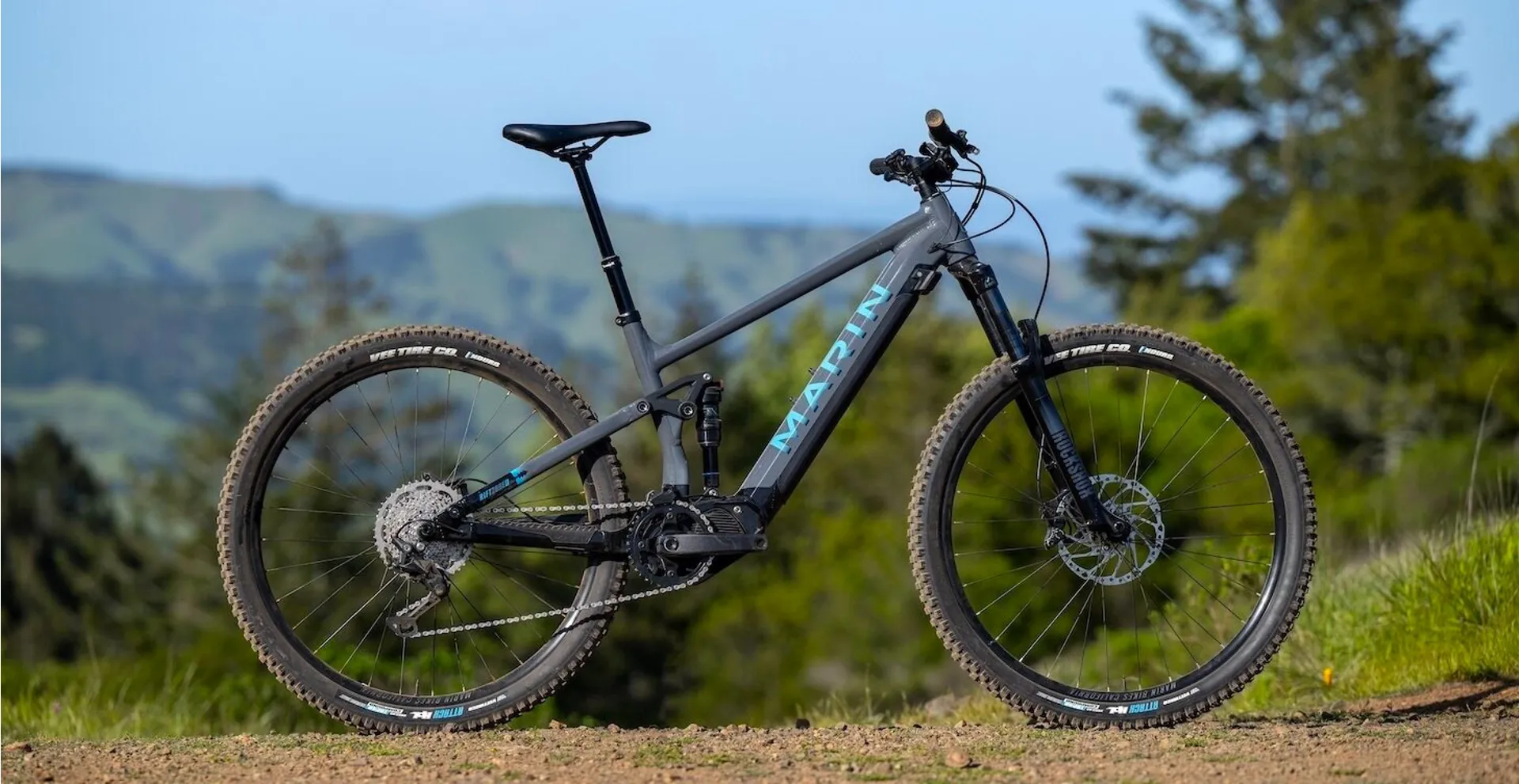

Marin Rift Zone E Electric Bike 2024 Grey/Blue

Season:2025

Brand:Marin

Code:23-7365850-GRY/BLU

One of the very best value eMTB’s around, the base model Marin Rift Zone E Electric Bike packs a crazy-powerful punch without busting the bank. RockShox and X-Fusion handle the suspension, Shimano Deore brings a tough, reliable 10-speed drivetrain and Shimano’s STEPS EP6 drive unit powers you up, along and down. A 504WH battery is supplied as standard, with the option to upgrade to a beefy 630WH for even more range.

SERIES 4 ALUMINUM FRAME

Rift Zone E models are built upon our Series 4 aluminum frames, with detailed forgings, highly manipulated tubes, and full internal cable routing, giving the rider the highest-end alloy frame that Marin offers, compatible with modern coil or air shocks.

MULTITRAC SUSPENSION

The Alpine Trail E features the same great, proven MultiTrac suspension technology, but optimized for the Shimano STEPS system, with 140mm of suspension for the best on-trail experience.

SHIMANO STEPS

Shimano’s STEPS system is both powerful and lightweight, with the mid-drive motor down low to help ensure that the Rift Zone E performs like the analog version, but with a 250W boost. Three levels of power give riders options to balance electric power, speed and range. Electric assist up to 20mph in the US, 25km/h in Europe.

Marin Rift Zone E Electric Bike Highlights

  • FRAME - All New Series 4 Alloy Frame, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor.

  • MOTOR - Shimano Steps EP6 Drive Unit, 250W, 85Nm, 25 km/h Top Assisted Speed

  • FORK - RockShock 35 Silver R 29", Motion Control Damper, 140mm Travel, Maxle Stealth Axle, 42mm Offset

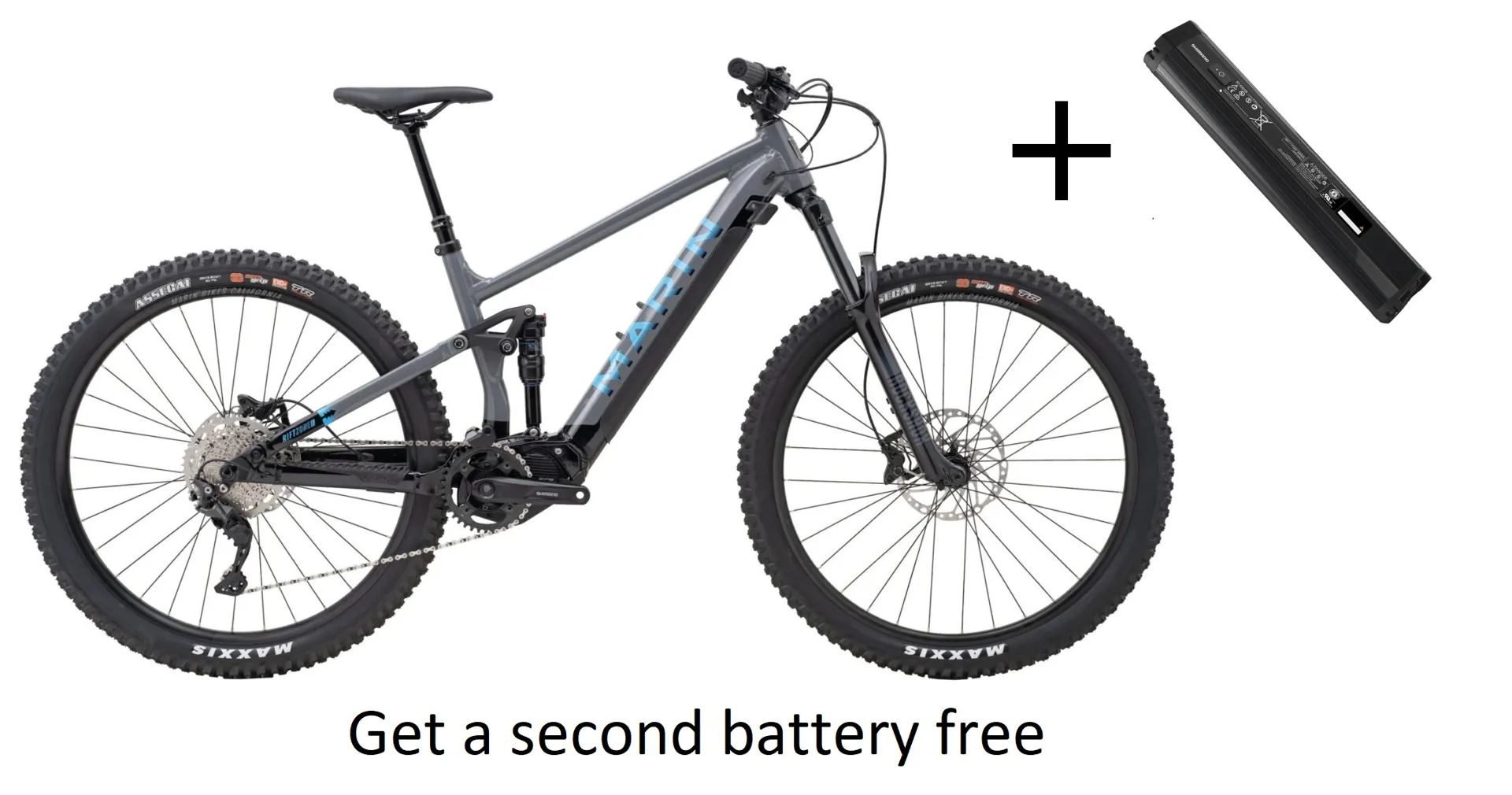

  • Free Battery - Make the fun last twice as long, with a bonus, second battery
Technical Information
FRAME
All New Series 4 Alloy Frame, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor
FORK
RockShock 35 Silver R 29", Motion Control Damper, 140mm Travel, Maxle Stealth Axle, 42mm Offset
SHOCK
X-Fusion 02 PRO R, Compression and Rebound Adjustment, Custom Tune, 210x55 25xM8 Lower Mount & Upper Mount
RIMS
Marin Aluminum Double Wall, 29" Diameter, 29mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible
HUB REARShimano HB-TC500, 148x12mm, Centerlock, Standard Freehub Body
HUB FRONTShimano FH-TC500, 110x15mm, Centerlock, 32H
SPOKES14g Black Stainless Steel
TIRES
Vee Tire Co. Attack HPL, 29x2.5", Top 40 Tubeless Compatible, Override E-Specific Casing
DERAILLEUR REARShimano Deore, Direct Attachment, 10-Speed SGS
SHIFT LEVERShimano Deore, 10-Speed, I-Spec EV
CRANKSETShimano EM600, 160mm Length, 38t Chainring
MOTORShimano Steps EP6 Drive Unit, 250W, 85Nm, 25 km/h Top Assisted Speed
CHAINKMC X-10E, Silver
CASSETTEShimano Deore 10-speed 11-46T
BRAKES FRONTTRP Slate EVO 4-Piston Hydraulic, 203mm Rotor, 2.3mm Thick
BRAKES REARTRP Slate EVO 4-Piston Hydraulic
BRAKE LEVERSShimano MT4100 Hydraulic, I-Spec EV Compatible
HANDLEBAR
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
STEMMarin 3D Forged Alloy, 35mm
GRIPSMarin Grizzly Lock On
HEADSETFSA No 57E, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
SEATPOST
TranzX, YSP18JL, 1x Remote, Size S 150mm Travel, All Other Sizes 170mm Travel, 30.9mm
SADDLEMarin eMTB Saddle
PEDALSMarin MTB Plastic
BATTERYShimano BT-EN805L, Internal 504Wh
DISPLAYShimano SC-E600
SWITCHShimano SW-EN600L Left Hand Switch for Assist Mode Change
EXTRASShimano Battery Charger EC-E6002, Shimano CS-EN800 Chainguide
RANGE, CHARGING TIME
25-70km (Based on Rider Weight, Terrain, Climate and Level of Assist Used), 4 Hours
Sizing Information
SizeRider height range
S5'3"to5'6"
M5'6"to5'10"
L5'10"to6'1"
XL6'1"to6'4"

Rift Zone E geometry diagram

SMLXL
STACK606.98614.04625.1634.16
REACH445465485515
HEAD TUBE ANGLE65°65°65°65°
HEAD TUBE LENGTH100110120130
SEAT TUBE ANGLE77°77°77°77°
SEAT TUBE LENGTH390400425435
TOP TUBE EFFECTIVE585.13607.22629.32661.41
BB HEIGHT348.5348.5348.5348.5
BB DROP32323232
CHAINSTAY440440440440
WHEELBASE1198.291222.521246.741280.97
STANDOVER HEIGHT693.65696.01709.94719.93
FORK OFFSET42424242
SEATPOST DIAMETER30.930.930.930.9
HANDLEBAR WIDTH780780780780
STEM LENGTH35353535
CRANK LENGTH160160160160

All lengths in millimeters
