The Cube Reaction Hybrid pro 500 Electric Bike. Re-designed for 2020, Cube went back to the drawing board and redesigned something thats sleeker,stiffer and more versatile than ever.
The Cube Reaction Hybrid pro 500 Electric Bike. Re-designed for 2020, Cube went back to the drawing board and redesigned something thats sleeker,stiffer and more versatile than ever.
Cube

Cube Reaction Hybrid Pro 500 29er Mountain Bike 2020 iridium/Black

Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Not happy with your purchase? Send it back to us or return in any of our stores and we will give you a full refund or exchange!

Returns

In the unlikely event that you are dissatisfied with your purchase please feel free to return your goods within 60 days of the purchase date for a full exchange or refund. Any item (excluding food and underwear) can be returned to us for any reason provided it is returned in ‘showroom condition’, with its original packaging, tags and a valid receipt/delivery note.

Simply box up your items for return, include a cover note with the word REFUND or EXCHANGE inside & follow the below steps for safe return to our warehouse; where your return will be processed promptly.

Return Items by Post

It is your responsibility to ensure that the item is returned to us in a safe and secure manner, and in the event of a refund or exchange, in saleable condition (in original packaging and including all warranty, cards, manuals and accessories).

Customers are accountable for return shipping charges.

  1. You should always keep proof of postage and we advise you to use a ‘signed for service’ when returning goods.
  2. Send your package using a recorded delivery method (always keep a copy of your receipt!) to the following address:

Leisure Lakes Bikes Returns,
Unit 1 Osprey Place
Titan Way,
Leyland,
PR26 7EW

Checkout by Amazon Returns

If you used the pay by Amazon option when checking out then please send your package using a recorded delivery method (always keep a copy of your receipt!) with a note inside stating whether you want an exchange (what you want it exchanging for) or refund, to the following address:

Leisure Lakes Bikes Returns,
Unit 1 Osprey Place
Titan Way,
Leyland,
PR26 7EW

Bike & Bulky Item Returns

If you wish to return your bike to us please keep it in the box it arrived in and call us on 01772 644340 and we will arrange a collection.

Please note the following:

  • a) If we have sent you the incorrect bicycle, we will cover the cost of collection and delivery of the correct model.
  • b) If we have delivered the bicycle you ordered, but upon inspection you decide it is not the bike for you, we will charge you £50.00 for the collection.

Please do not ride the bike as a full refund cannot be given if the bike has been used or damaged.

Return Items to a store

Any item (excluding food and underwear) can be returned to any Leisure Lakes Bikes store not just the one you made your purchase at, including those made online. The item must be returned in ‘showroom condition’, with its original packaging, tags and with a valid receipt/delivery note.

Wrong size or you don't like the item?

If returning items that are not suitable for either refund or exchange you are accountable for the delivery cost in returning it to us. You should always keep proof of postage and we advise you to use a ‘signed for service’ when returning goods.

New faulty items/ Wrong Item Received

If you have received items that are faulty or not what you ordered send them back to us (using the steps above) and we will cover the delivery cost of the return if it is within 14 days of delivery. If we have supplied the correct product, it is not faulty or it is outside of the 14 days we can not be liable for your postage charges. You should always keep proof of postage and we advise you to use a ‘signed for service’ when returning goods.

In the event that you have received items that are fault or not what you ordered, please send them back to us as soon as possible. Only in these cases will we cover the cost of the return shipping charges.

Faulty Items

If you have received items that are faulty please send them back to us using the steps above. Please include a covering letter describing the fault and if you would like the item replacing or refunding. Once the item arrives back at our Mail Order Centre you will receive an email notifying you about the progress. Faulty items are then forwarded onto the suppliers to confirm the warranty issue. Please be patient with us as we need to receive this confirmation from the suppliers before we can process your request for a replacement/refund.

When returning the item please use Royal Mail1stClass Recorded* so that you have a tracking reference just in case! If your item arrived faulty we will refund your postage cost. If the item was in full working order at the time of delivery to you, we can not refund your return postage cost.

*In the event that you return a faulty/incorrect item we will refund your postage charge as long as it is 1stClass Recorded or a lesser value service. We do not refund premium services.

Refunds

Refunds will be processed using the same method of payment used for the original purchase. Credit and debit card refunds must be made to the card used for the original transaction, cheque payments will be refunded in cash but due to banking restrictions can only be refunded at least 14 days after the original purchase date. Due to the high incidence of fraud we regret that we are unable to offer any refund without a valid receipt/delivery note.

Refunds will be made for faulty or incorrect items, including any delivery charge incurred by the buyer (excluding ‘Special Delivery’) in the return of the item. If the products you ordered are delivered to you in good condition but you wish to return them for any reason we will refund the full value of the goods excluding any carriage charge upon receipt of your returned goods.

Items won’t be considered lost until after 15 working days of items beingdispatched. Once the 15 working days are up we will issue a refund or replacement.

Not received your order?

If you have not received your order please call us on 01772 644340 and a member of staff can confirm the shipping date. Unfortunately we cannot consider an item to be lost until 15 working days has passed (according to Royal Mail procedure). Once the 15 working days have passed we will be able to issue a full refund or resend your order.

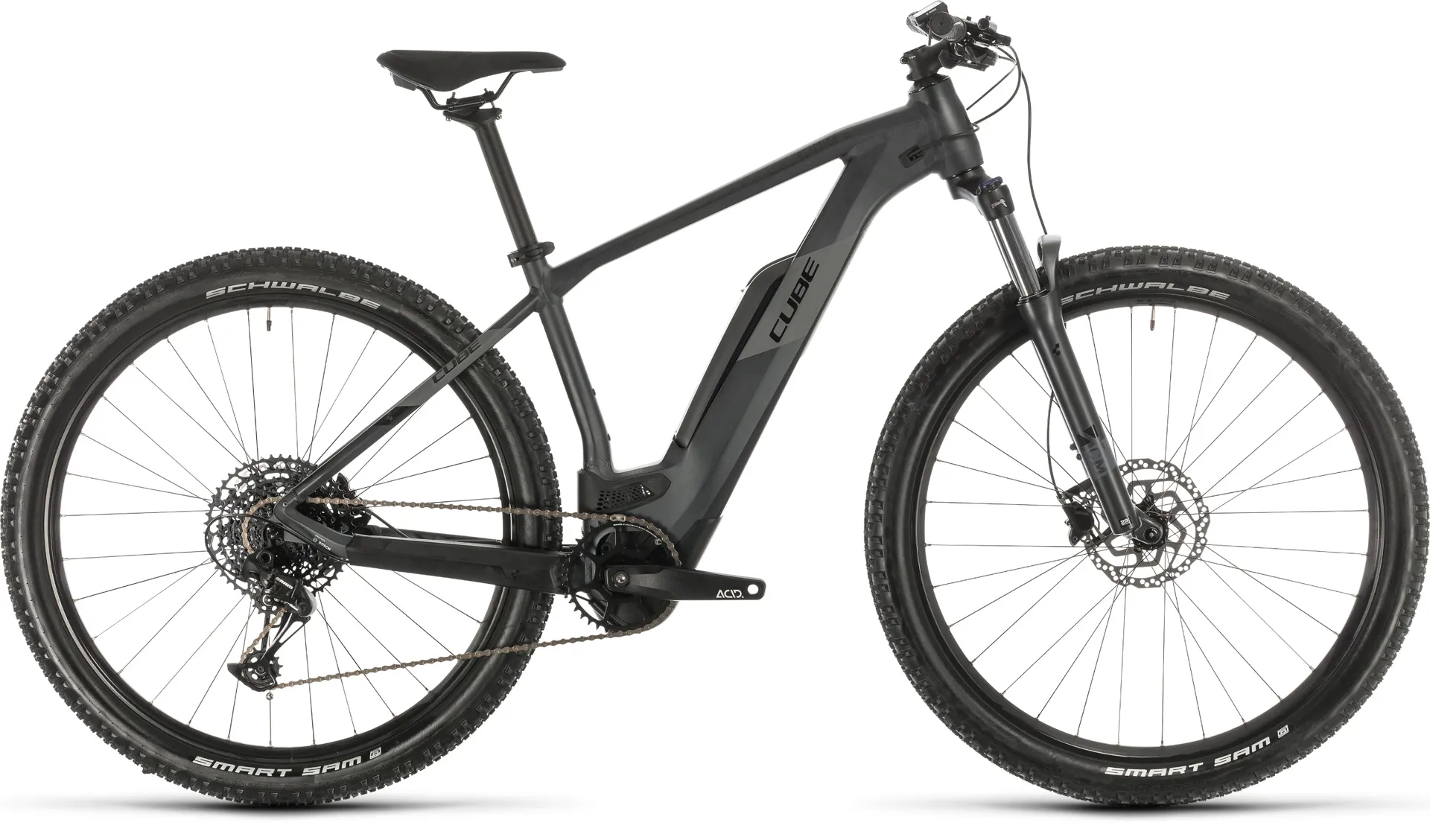

Cube Reaction Hybrid Pro 500 29er Mountain Bike 2020 iridium/Black

Season:2020

Brand:Cube

Code:33410113-CUBE20

The designers at Cube always start with a clear goal in mind. In the case of the Reaction Hybrid Pro, it was a simple one: build a Bosch e-bike that will help its rider get more out of the trails they ride. To that end, they went back to the drawing board for 2020 and came up with a brand-new frame design that's sleeker, stiffer and more versatile than ever, incorporating Bosch's fourth-generation CX motor. Integrated cable routing complements the clean lines and reduces maintenance, whilst compatibility with CUBE accessories and a remote dropper post makes upgrading and accessorising a cinch. The seamlessly integrated Bosch drive unit and battery, controlled via a Purion handlebar-mounted interface, quietly and efficiently gets on with the job of boosting your pedal power for easier climbs, faster routes and expanded horizons. You can even charge the battery without removing it from the frame. Sram's superb SX Eagle 12-speed transmission provides an awesome gear range, while Shimano's smooth, powerful MT200 hydraulic disc brakes ensure you can control your speed whatever the weather or trail conditions. Extra-wide, grippy Schwalbe Smart Sam tyres offer ample grip and cushioning and our Natural Fit Sequence saddle ensures you'll stay comfortable on even the longest rides. Best of all, our Size Split system - and the option of a trapeze frame - means that there's a Reaction Hybrid Pro to suit every rider. Which means that there's nothing stopping you from getting more out of your riding...

Cube Reaction Hybrid Pro Highlights

  • Superlite Aluminium, advanced hydroformed frame
  • SR Suntour XCM34 ATB Suspension Fork with 100mm Travel
  • Bosch Powerpack 500 Battery
  • Bosch Drive Unit Performance Generation 3 250 Watt 65nm
  • Bosch Purion Display Unit

The engineering team at Cube puts the same effort into every frame design, whether it's a range-topping race machine or an entry-level commuter. That's why they gave the Acid Hybrid an aluminium Superlite chassis with double-butted tubes, which shave weight where it isn't needed and add extra thickness where strength is important. Advanced hydroforming is what gives it its sleek looks and the elegant, oversized down tube houses both the Bosch drive unit and the battery. Their acclaimed Agile Ride Geometry gives the Acid Hybrid easy, intuitive handling to keep you safe, whether you're exploring a trail or riding to the office. Internally routed cables - including for a future dropper post upgrade - keep everything tidy, reduce maintenance and ensure your gear shifts stay precise. And integrated mudguard mounts mean it's a cinch to fit full-length fenders to help keep you dry on the road, all year round.

Icon of CUBE technology Agile Ride GeometryImage of CUBE technology Agile Ride Geometry

Agile Ride Geometry

We ran innumerable tests to develop the Agile Ride Geometry in our series of big wheel bikes. We also added the 27.5in wheel size to the very well received portfolio. Three important details lead to the very agile character. Increased fork offsets let us achieve the same trail as our 26in bikes without having to steepen the head angle, thus maintaining generous toe clearance to the front wheel. Secondly we shortened the chain stays without compromising the seat angle. We invented a patented construction to mount the front derailleur to give us more tyre clearance while keeping a conventional seat angle, leading to a perfect riding position for every rider size. Last but not least we kept the BB height the same as on our 26in bikes. These measures lead to a natural riding position. Every mountain biker will feel immediately at home on a CUBE 29er or 27.5.

Icon of CUBE technology Optimal Drive PositionImage of CUBE technology Optimal Drive Position

Optimal Drive Position

The “engine” is the critical part of an Ebike because of its weight and its junction to the regular drivetrain. These factors present a real challenge for the frame design. This is why CUBE developed an innovative new frame construction for the new Ebike generation: simultaneously being the cradle for the electric motor, the pivot for the rear link and the seat of the shock eyelet, the very complex area of the bottom bracket is made of two forged halves. The groove in the front section together with the specially formed down tube is home for the power pack which in this way has a very low position in the frame triangle. The positive outcome is an extremely low center of gravity supporting an agile riding characteristic while achieving a super rigid bottom bracket area.

Icon of CUBE technology Integrated Cable RoutingIcon of CUBE technology Frame Safe SystemIcon of CUBE technology Easy Mount KickstandIcon of CUBE technology Optimal Drive PositionIcon of CUBE technology Stealth ReadyIcon of CUBE technology Wet Paint Surface

Technical Information
FRAME Aluminium Superlite, Gravity Casting, Agile Ride Geometry, 1.5 Headtube, Internal Cable Routing, Semi-Integrated Battery, Kickstand/Fender/Carrier Mounting Points
SIZE Size Split: 27.5: 13.5", 15" // 29: 17", 19", 21", 23"; Trapeze 27.5: 15" // 29: 17", 19"
FORK SR Suntour XCM34 Coil, Tapered, 15x110mm, 100mm, Lockout

HEADSET FSA Orbit 1.5B ZS-R, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
STEM CUBE Performance Stem Pro, 31.8mm
HANDLEBAR CUBE Rise Trail Bar, 700mm
REAR DERAILLEUR Sram SX Eagle™, 12-Speed
FRONT DERAILLEUR N/a
BRAKES Shimano BR-MT200, Hydr. Disc Brake (180/180)
CRANKSET FSA CK-602, 38T, 175mm
CHAIN Sram SX Eagle™

COLOUR Iridium / Black
GRIPS CUBE Performance Grip
SHIFT Sram SX Eagle™ Trigger, Single Click
CASSETTE Sram PG-1210 Eagle™, 11-50T
WHEELSET CUBE EX30, 32H, Disc, Tubeless Ready
TYRES Schwalbe Smart Sam, Active, 2.60
SADDLE Natural Fit Sequence
SEAT POST CUBE Performance Post, 30.9mm
SEATCLAMP CUBE Varioclose, 34.9mm

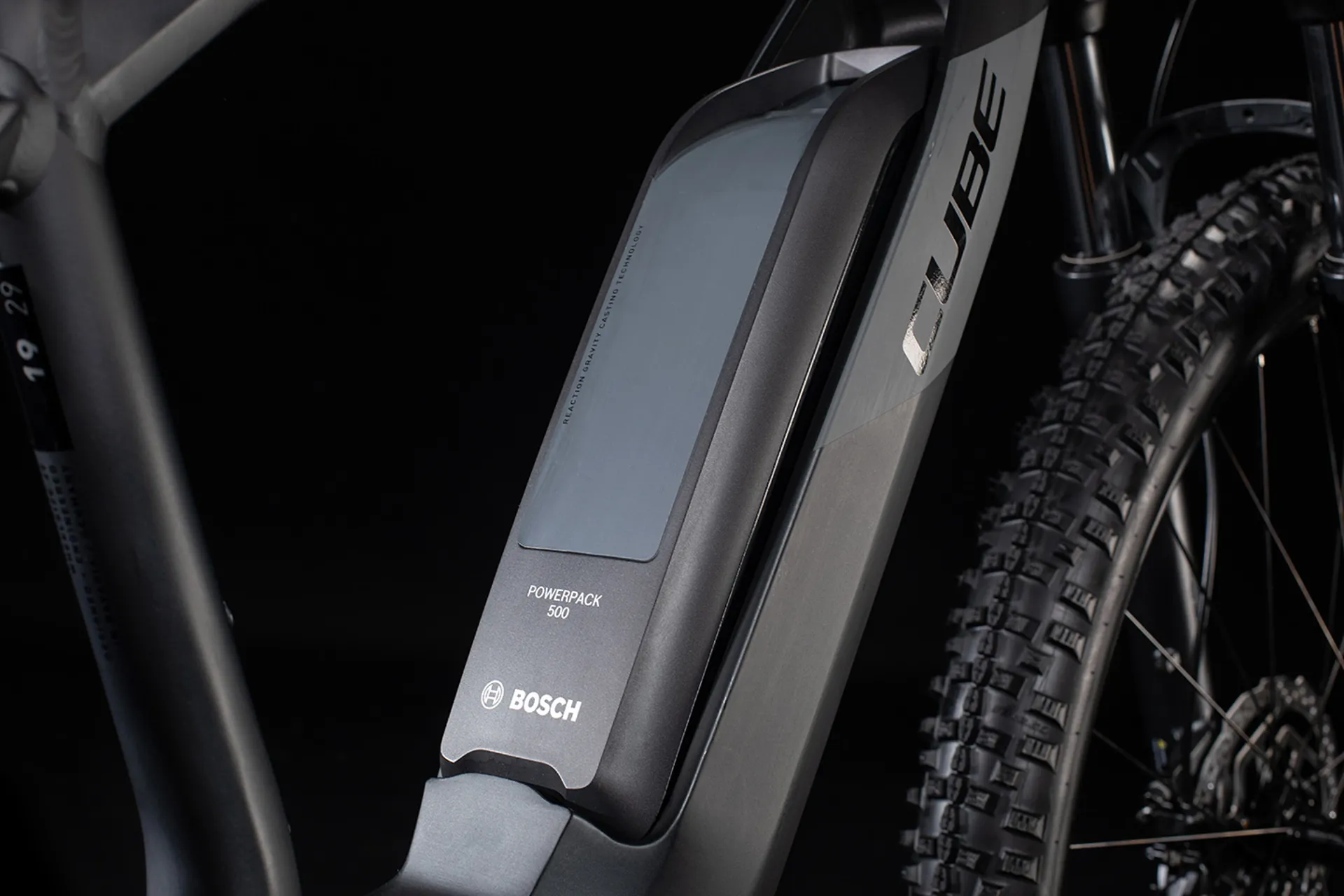

BATTERY Bosch PowerPack 500
DRIVE UNIT Bosch Drive Unit Performance CX Generation 4 (75Nm) Cruise (250Watt)
DISPLAY Bosch Purion
CHARGER Bosch 2A
LOCK Abus Art.-Nr. 83227


OVERALL WEIGHT 22,9kg

Cube Reaction Hybrid Pro 500 Geometry

Geometry

FRAME SIZE 13" 15" 17" 19" 21" 23"
WHEELSIZE 27.5" 27.5" 29" 29" 29" 29"
HEADTUBE ANGLE 68° 68° 69° 69° 69° 69°
HEAD TUBE LENGTH 110 120 110 120 131 146
STACK 591 600 628 638 648 662
REACH 379 393 402 420 437 452
TOP TUBE HORIZONTAL 545 560 580 600 620 640
BB HEIGHT - HUB -65 -65 -65 -65 -65 -65
WHEELBASE 1085 1103 1129 1149 1170 1191
CHAINSTAYS 441 441 460 460 460 460
SEAT TUBE ANGLE 74° 74° 74° 74° 74° 74°
SEAT TUBE CENTRE - CENTRE 306 323 355 400 460 460
SEATTUBE 355 370 405 450 495 545



Sizing Information

How To Measure Yourself

Measure Your Height

Our handy size charts match your height to the appropriate frame size so you need to be sure you’ve measured your height accurately.

  1. Take off your shoes and stand with your back against a wall.
  2. Make sure legs are together and your shoulders are back.
  3. Place a pencil on top of your head and mark the wall (the best and easiest way to do this properly is with a friend to help you).
  4. Measure from the floor to the pencil mark you have just made with a tape measure.

Range of Reach

For most people to get the right frame size, measuring your height will suffice. However, you may find that your height is on the borderline of the range we suggest for a particular frame. If this occurs you need to measure the range of your reach or “Ape Index”. This will ensure you get a comfortable distance between the handlebars and your saddle.

  1. Stand up straight with your back against a wall.
  2. Life your arms out horizontally either side of you.
  3. Measure the distance from fingertip of one hand to fingertip of the other. This will give you your arm span.
  4. Subtract your height from this figure to get your Ape Index.
  5. If the result is positive (your arm span is greater than your height) you should go for the larger size of bike.
  6. If the result is negative (your arm span is less than your height you need the smaller size.

Stand Over Height

You should also consider your inside leg measurement when choosing your bike to ensure adequate stand over height. Stand over height is the clearance between the top tube and the bottom of your crotch. For mountain bikes we recommend a distance of 2-4 inches and for road or hybrid bikes 1-2 inches of clearance is required. This will ensure comfort when you’re stopped and standing astride the bike.

Our bike sizing charts take stand over height into consideration but if you have a particularly long or short inside leg measurement in relation to your height you will need to bear this in mind when selecting your frame size.

Riding Style

The way you ride and the type of bike you are into will also impact the frame size you should choose. For example, a trail devotee looking for an aggressive ride may prefer a smaller, more manoeuvrable bike size. It all comes down to personal preference and how the bike feels to you.

Our sizing charts aim to be as specific as possible so you can look up the particular type, make and model of bike you’re looking for. Remember, the sizes given in our guides are suggestions and should be used for general advice only. For the best possible fit  we recommend popping in to your local Leisure Lakes Bikes store, or call 0800 083 0888 for expert advice tailored to you.
