Merida eOne-Sixty Limited Edition 504Wh XT 12 Speed 2020 Black

Season:2020

Brand:Merida

Code:K92

After three years at the top of the full-suspension e-bike market, the most decorated bike in MERIDA's history, the 'original' eONE-SIXTY found its successor in the all-new carbon eONE-SIXTY. The new bike would bring a long list of exciting features to the table while preserving the often praised riding characteristics of the 'original' eONE-SIXTY.  But MERIDA are very aware that a carbon front triangle might not be everybody's preferred choice and that there is a need to broaden the price range of their e-enduro bikes. These two factors were enough to go back to the drawing board and to develop the all-aluminium version of the bike – welcome to the new eONE-SIXTY LIMITED EDITION

Similarly, to the carbon version, the new eONE-SIXTY LIMITED EDITION embodies e-enduro bikes, instead of the normally needed shuttle to session your favourite tracks, you have your own built-in engine to assist you to the top. On downhills, it still feels like a normal bike, agile due to its perfectly tuned MTB geometry, but more planted because of the higher weight. But the new eONE-SIXTY can be so much more. The last few years have shown that their e-enduro bike is often used as a super comfortable and capable 'SUV' bike. Because of the advantages of more travel, bigger tyres and comfortable geometry, it is pure fun even on less demanding tracks and trails, and the new aluminium version is set to make lots of friends among the 'SUV' fraternity.

While now featuring an aluminium front triangle, the majority of the exciting features of the carbon eONE-SIXTY remain. The battery is fully integrated into the frame and can be easily accessed by removing the ENERGY GUARD battery cover. The battery can be removed with just a 4 mm Allen key making charging away from the bike and replacing the battery super-fast and straight forward. The fitted EXPERT TR through axles feature a removable leaver which in the first instance allows easy loosening and tightening of the axles but also works as a 4 mm Allen key, perfect for releasing the battery or tightening of essential parts like the stem bolts or the seat clamp.



Smart Entry

Cables, housings and brake hoses are clamped under tension to prevent rattling when the trails get rough. All inlets are completely interchangeable to deal with Di2, hydraulic hoses, brake cable and gear cable housings etc.

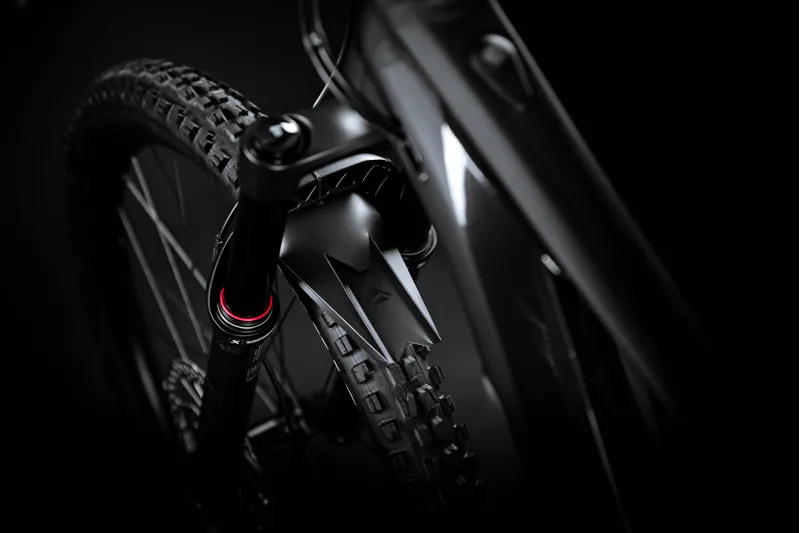

Energy Guard

Two-component battery cover, which offers perfect protection for the battery. The softer (outer) layer reduces noises, seals the downtube perfectly and absorbs hits from stones easily, while the harder (inner) layer ensures that the battery does not get damaged and gives it the structural shape. All crucial parts like the rubber strap and o-rings for perfect fitting can be replaced.

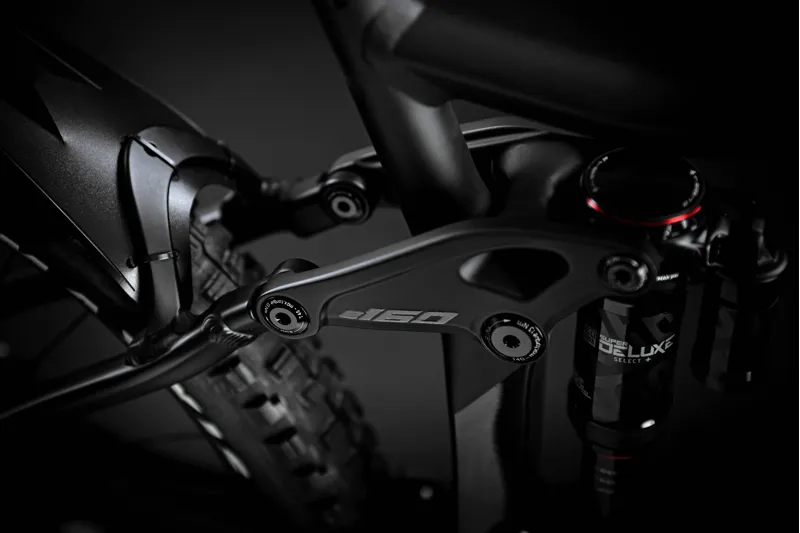

Rear Triangle

Similarly, to the front triangle, the rear triangle is also made from aluminium. It is the same rear triangle we are using on the carbon bikes and the 'original' eONE-SIXTY. It is one of the strongest rear ends MERIDA has ever made, and we know that it has fantastic durability and stiffness characteristics. Furthermore, we have the advantage that all spare parts can be used.

E8000 Drive Unit

Maximum riding fun at any performance level was the key focus in the design and concept of the Shimano STePS systems. The motors are optimised with regards to intuitive handling and despite their impressive performance, deliver the most natural and organic riding experience. The E8000 drive units offer a maximum output of 70 Nm and give a maximum of 300% assistance. Furthermore, the motor almost immediately responds to any pressure being applied through the pedals which hugely contributes to the intuitive handling and the agility of the system. An equally important feature of the motor is that it also withdraws any assistance at once when pedal pressure is reduced. Based on the compact size of the system, it can be perfectly integrated into the overall frame design.

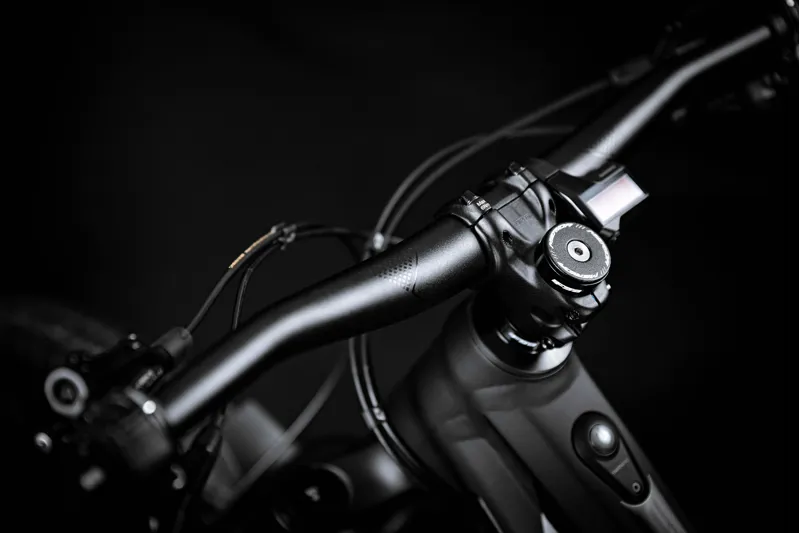

Satellite Charging Port & Switch

The on/off switch as well as the battery charger port are positioned for easy accessibility. The on/off switch is set into the top tube just behind the head tube, allowing the rider to activate the system with ease. The satellite charging port can be found above the motor at the down tube/seat tube junction, perfectly protected yet super easy to get to.

MERIDA Mini Toolbox

Connected to the saddle's faceplate is the new MERIDA mini toolbox. The included mini tool features 2/2.5/3/8 mm Allen keys, a flathead and Phillips head screwdriver and 10/25/30 Torx keys. Perfect for fixing most issues trailside.


Merida eONE-SIXTY Limited Edition Build Highlights

Frame: Merida eONE-SIXTY LITE ll Aluminium

Fork: RockShox 35 Gold RL AIr

Rear Shock: RockShox Super Delixe Select+

Brakeset: Shimano MT-500

Drive Unit: Shimano E8000

Battery: Shimano E8035 504Wh

Display: Shimano SC-E7000

Wheel Size: Front Wheel 29x2.5 " and Rear 27.5x2.6 "



Technical Information
FRAME eONE-SIXTY LITE ll Aluminium
FRAMES SIZES XS,S,M,L,XL
FORK RockShox 35 Gold RL
SHOCK RockShox Super Deluxe Select+
BRAKE FRONT Shimano MT520
BRAKE REAR Shimano MT500
ROTOR FRONT Shimano RT30 203mm
ROTOR REAR Shimano RTEM300 180mm
HEADSET merida 1901
HANDLEBAR Merida Expert eTR
STEM Merida Expert eTR
GRIP Merida Expert EC
DERAILLEUR Shimano XT RDM8100 Shadow+
SHIFTER REAR Shimano SLX 12
SEATPOST Merida Comp TR
SEATCLAMP Merida Expert Clamp
SADDLE Merida Comp CC
CHAIN CN-M7100
CHAINWHEEL Shimano CRE8D-12-B
CRANKS Shimano FC- 8000 165mm all sizes
FREEWHEEL Shimano M7100
BOTTOM BRACKET Included in Motor
RIM Merida Comp 29mm wide Tubeless Ready
TYRE FRONT Maxxis Assegai 29"x2.5"
TYRE REAR Maxxis DHR ll 27.5"x2.6"
SPOKES Black Stainless

DRIVE UNIT Shimano E8000
BATTERY  Shimano E8035 504Wh
DISPLAY Shimano SC-E7000



Bike Frame Geometry Image

GEOMETRY

  FRAME SIZE 41 42 44 47 50
STA SEAT TUBE  405 420 440 470 500
TT TOP TUBE 562.5 583.5 605 628.5 652
CS CHAINSTAY LENGTH 439.5 439.5 439.5 439.5 439.5
HTA HEAD TUBE ANGLE 65.5 65.5 65.5 65.5 65.5
STA SEAT TUBE ANGLE 75.5 75.5 75.5 75.5 75.5
BD BOTTOM BRACKET DROP 17.5 17.5 17.5 17.5 17.5
HT HEAD TUBE ANGLE 110 115 120 135 150
FL FORK LENGTH 571 571 571 571 571
R REACH 400 420 440 460 480
S STACK 628.5 633 637.5 651.5 665
WB WHEELBASE 1168 1190 1212 1236.5 1264.5



Sizing Information

Bike Frame Geometry Image

GEOMETRY

  FRAME SIZE 41 42 44 47 50
STA SEAT TUBE  405 420 440 470 500
TT TOP TUBE 562.5 583.5 605 628.5 652
CS CHAINSTAY LENGTH 439.5 439.5 439.5 439.5 439.5
HTA HEAD TUBE ANGLE 65.5 65.5 65.5 65.5 65.5
STA SEAT TUBE ANGLE 75.5 75.5 75.5 75.5 75.5
BD BOTTOM BRACKET DROP 17.5 17.5 17.5 17.5 17.5
HT HEAD TUBE ANGLE 110 115 120 135 150
FL FORK LENGTH 571 571 571 571 571
R REACH 400 420 440 460 480
S STACK 628.5 633 637.5 651.5 665
WB WHEELBASE 1168 1190 1212 1236.5 1264.5
